08 System CommissioningUser Manual V1.0-2023-03-20
• Stop pressing the button for a period on any page, the LCD will get dark and go back to the
initial page.
• Short press the button to switch menu or adjust parameter values.
• Long press the button to enter the submenu. After adjusting the parameter values, long
press to set it.
Examples:
LCD Button Description

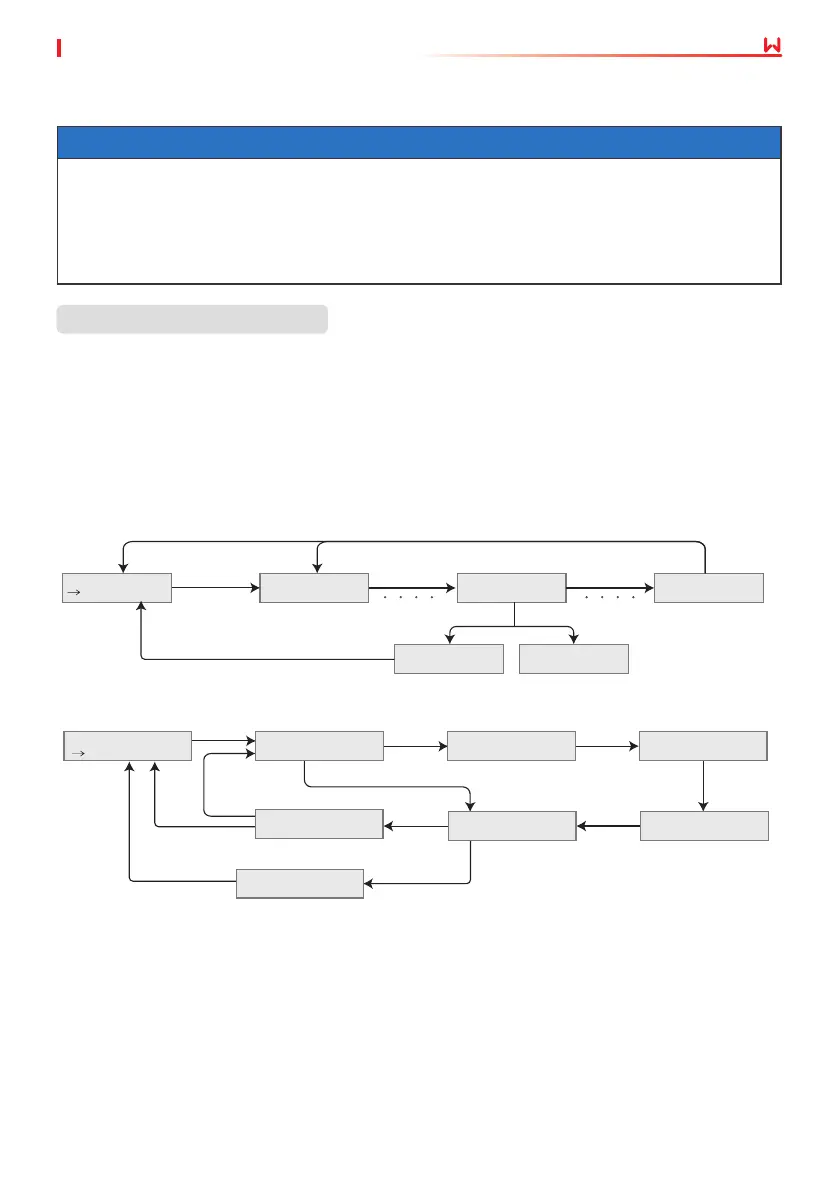

8.2 Setting Inverter Parameters via LCD
NOTICE
• The screenshots are for reference only. The actual interface may dier.
• The name, range, and default value of the parameters are subject to change or adjustment.
The actual display prevails.
• The power parameters should be set by professionals. To prevent the generating capacity
from being inuenced by wrong parameters
Long press
for 2s
Long press
for 2s
Long press
for 2s
Long press
for 2s
Long press
for 2s
Short press to adjust
the hundreds
Short press to
adjust the tens
Short press
to adjust
the units
Short press
Short press
Short press
PF Adjust
SetModbusAddr
SetModbusAddr
X-X-X
SetModbusAddr
X-X-X
SetModbusAddr
X-X-X
SetModbusAddr
X-X-X
SetModbusAddr
Yes?
SetModbusAddr
Return
SetModbusAddr
Modify Success
Long press
for 2s
Long press
for 2s
Long press for 2s
Short press
Short press
Short press
Set language
Set Safety
Set Safety
Return
Set Safety
Modify Success
Set Safety
Modify Fail
Set Safety
50Hz Default
Set Safety
Taiwan
