Graco Reactor A-25 User Manual

Parts
3A1570V 49

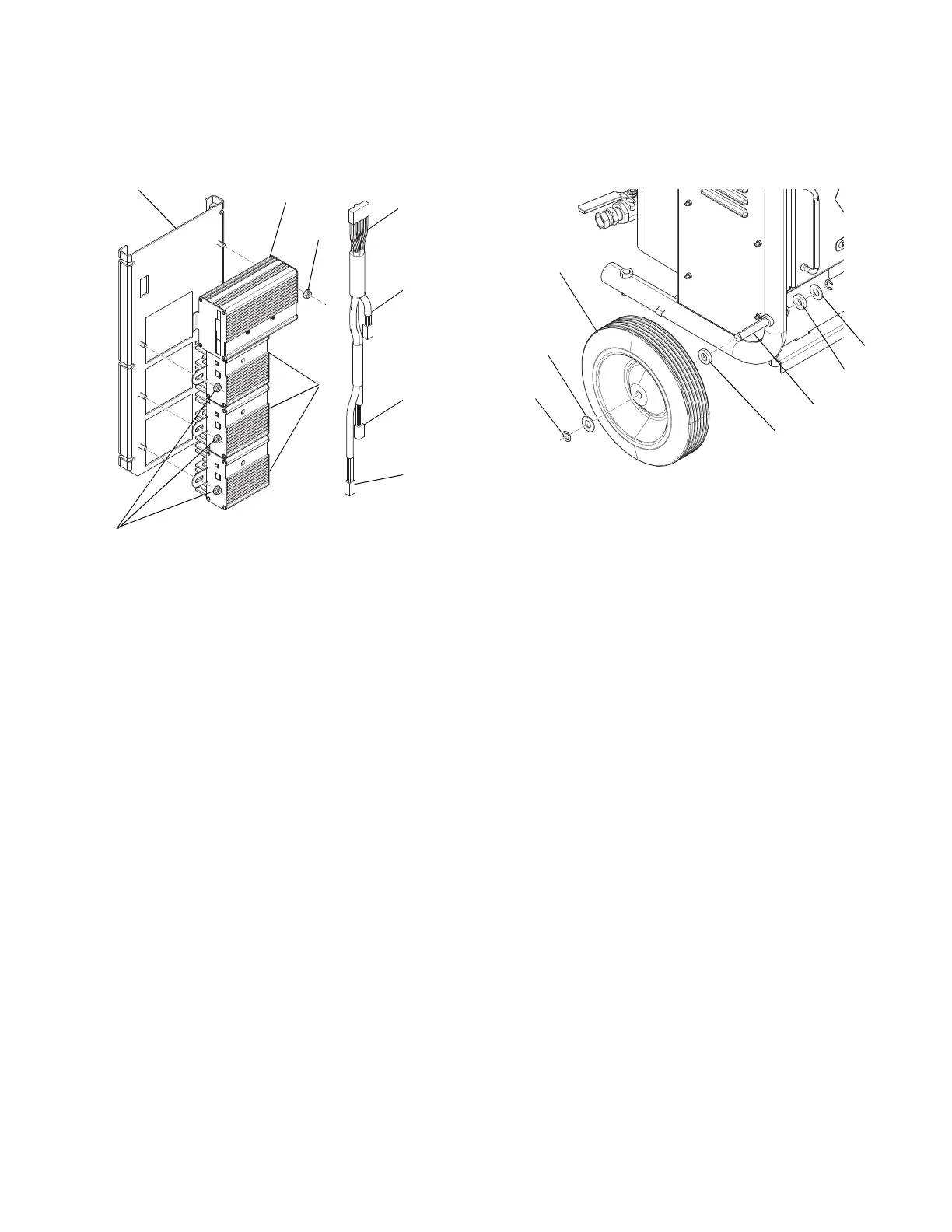

Temperature Control Wheel Kit (262695)
† Only used with 262614. Available as add on wheel
kit 262695.
Ref. Part Description Qty.
151 16G925 PANEL, pod, mounting 1
152 247827 MODULE, heater control 1
153 247828 MODULE, heater 3
154 114183 NUT, hex, flanged, serrated 4
155 247801 CABLE, communication 1
153
154
154
151
152
155
To B
Heater
Module
To A
Heater
Module
To Hose
Heater
Module
Ref. Part Description
Qty
.
191† 16H182 AXLE, wheel 2
192† 111841 WASHER, plain 5/8 4
193† 191824 WASHER, space 4
194† 101242 RING, retaining, ext. 4
195† 16G920 WHEEL, semi pneumatic, offset 2
ti18006a
193
191
193
192
194
194
195
