Repair
40 309574L
Heater
Heater Element
2. Relieve pressure, page 9.
3. Wait for heaters to cool.
4. See F
IG. 14. Remove tape and wire connector (63,
not shown), and disconnect heater element wires
(W) from heater wire harness. Test with ohmmeter.
Resistance must be 21-25 ohms for 2550W ele-
ment, and 30-34 ohms for 1500W element.
5. If heater fails test, remove temperature sensor (211)
to avoid damage.
6. Remove heater element (207) from tube (201). Be
careful not to spill any fluid left in tube.
7. Install new heater element (207), holding mixer
(202) so it does not interfere with Thermocouple (P).
8. Reinstall temperature sensor, page 41.
9. Reconnect wires and secure with connector (63)
and electrical tape.
1. Turn main power OFF . Disconnect power
supply.
WARNING
Read warnings, page 7. Wait for heaters to cool before
repairing.

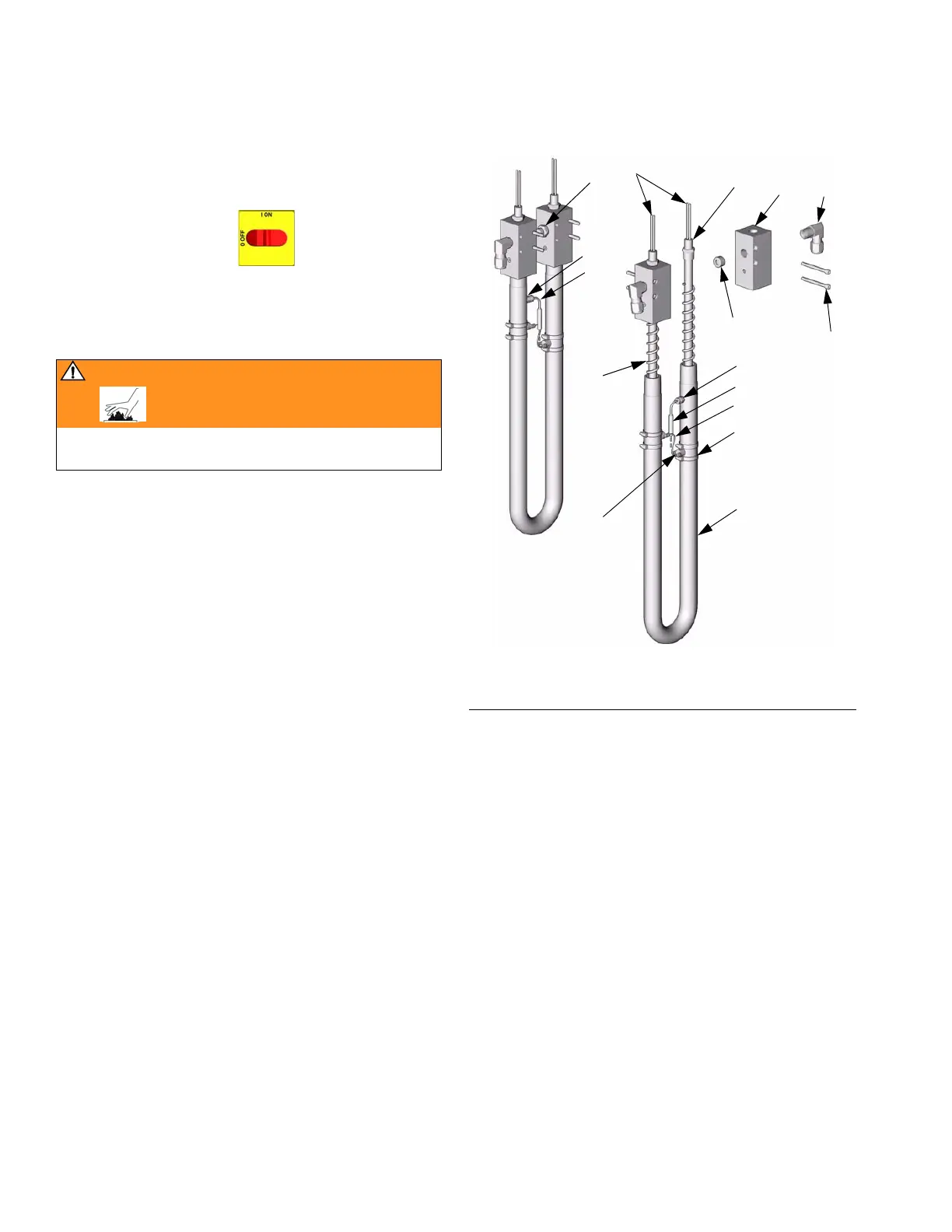

FIG. 14. Heater (Model 245962 Shown)
201
203
208
202
211
206
213205207
210
TI2512b
211
W
P
P
86
214
To Next Page
