Reactor Assembly
72 309574L
248669 Conversion Kit
Convert and phase E-XP2 to an E-30 with 15.3kW of
heat by changing pump lowers, bearings, and changing
the Motor Control DIP settings to that of an E-30. For
removal and installation of pump lowers and bearings,
see Pump Removal, page 24. For changing Motor Con-
trol DIP settings, see Motor Control Board, page 34.
Ref.
No. Part No. Description
Qty
65 118463 ELBOW, swivel; 3/4 npt(m) x 1 in. npt(f)
2
303 245927 HOUSING, bearing
2
306A 246832 PUMP, displacement, component A;
see 309557
1
306B 245972 PUMP, displacement, component B;
see 309577
1
316 193394 NUT, retaining
2
303
316
306B
65
306A
245981 Motor
Control Board
DIP Switch
(SW2) need to
be set for an
E-30. 1,2,3, ON -
4 OFF. See page
34.

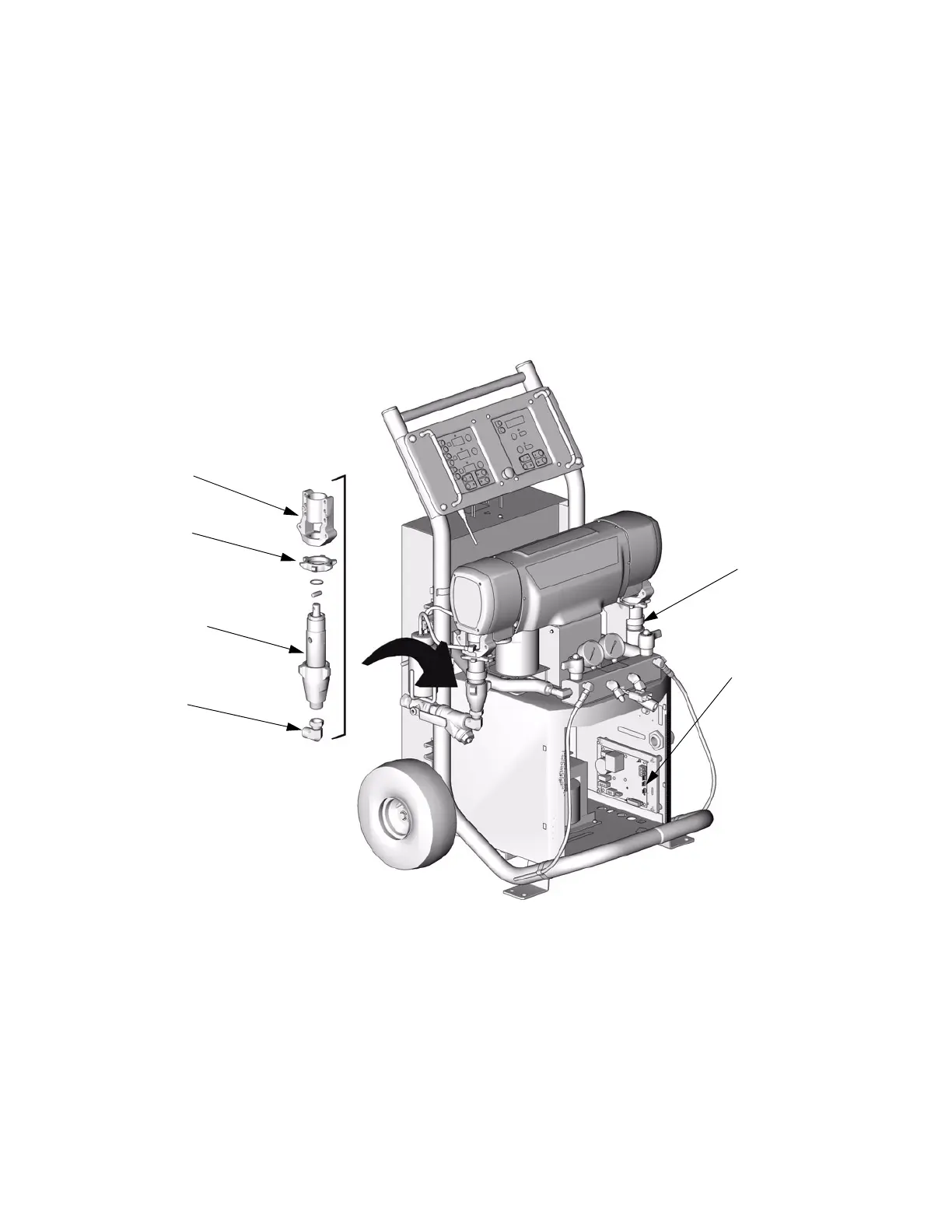

tI5121a
