Graco XP User Manual

Repair
20 3A3320E
Repair

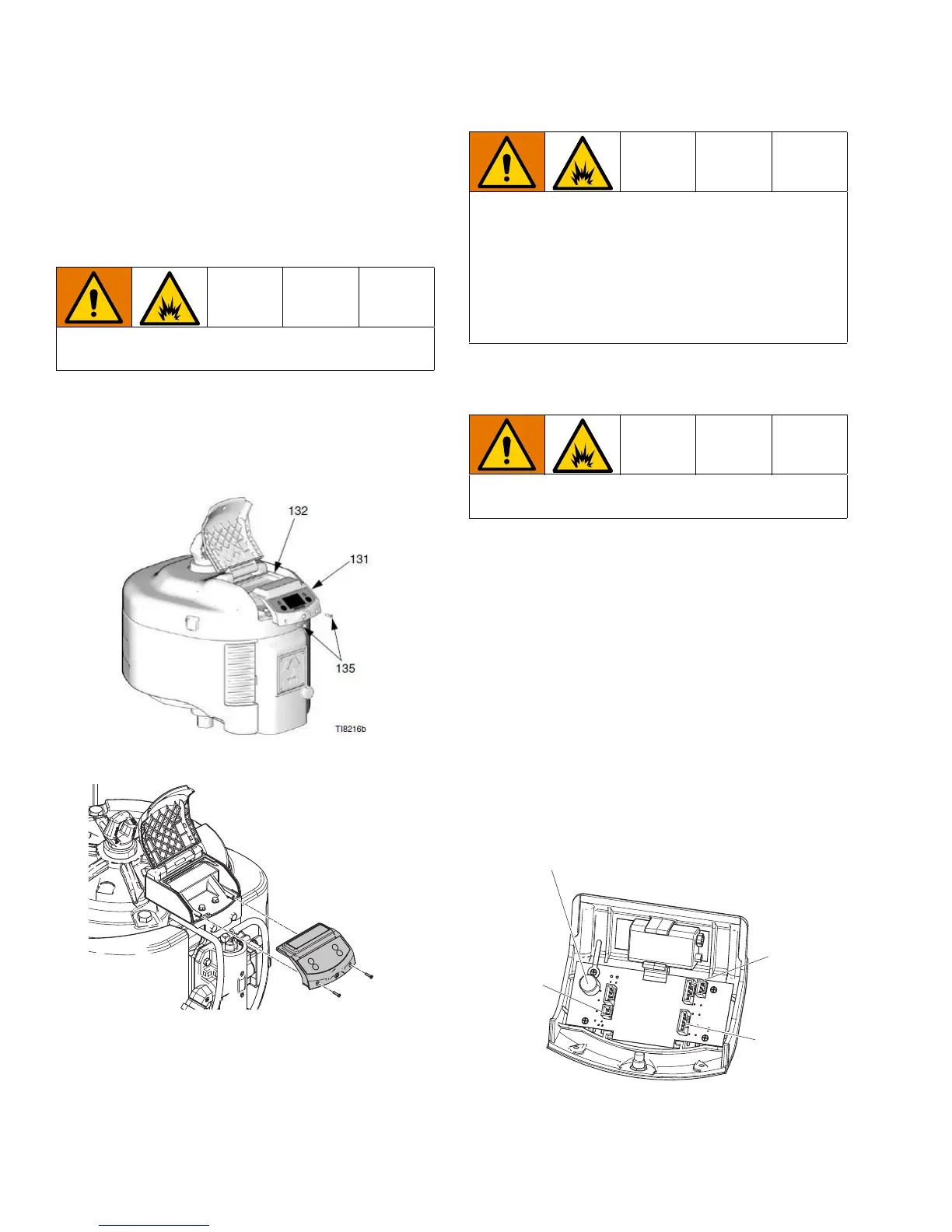

Replace the PressureTrak
Module Battery or Fuse
1. Remove the two screws (135). Carefully slide the
PressureTrak module (131) out of the housing
(132).
XP System
XP-hf System
2. Disconnect the electric solenoid (7) and pressure
sensor cables (4) from the module board.
3. Take the PressureTrak module (131) to a
non-hazardous location
4. To replace the battery, disconnect the used
battery and replace with an approved battery.
5. Checking the fuse (12):
a. Remove the fuse from the circuit board.
b. Use an ohm meter to measure the resistance of
the fuse.
NOTE: Less than 6 ohms means the fuse is
good. 6 ohms or more means the fuse must be
replaced.
6. To replace the fuse (12):
a. Pull the fuse away from the board.
b. Replace with a new fuse (12).
s
The battery and fuse must be replaced in a
non-hazardous location.
WLD
s
Use only the following approved replacement
batteries. Use of an unapproved battery will void the
Graco warranty, as well as Intertek and Ex approvals.
• Ultralife
®
brand lithium U9VL
• Duracell
®
brand alkaline MN1604
•Energizer
®
brand alkaline 522
•Varta
®
brand alkaline 4922.
s
Use only a Graco-approved replacement fuse (12)
Graco part number 24V216
WLD
D
E

%-
$-
%/8(
*5((1
-

