1. Remove wrap and packaging materials
from unit.
2. Remove unit from shipping container.
See Move Unit Manually on page 19.
3. Remove hardware from negative (-)
battery cable, but DO NOT discard.
4. Secure negative (-) battery cable to
negative (-) battery terminal with
hardware removed in
step 3.
5. Return seat to operating position. Ensure
seat latch is secure.
See Figure 3.
6. Rotate ROPS to operating position and
secure with lock pins. Secure lock pins
with hairpins.
See Figure 4.
7. Remove two eccentric spacers, two
round head square neck bolts and two
locking nuts from hardware bag.
8. Rotate steering levers to operating
position and install eccentric spacer
between steering lever plates using
original hardware.
9. Adjust steering levers. See Adjust
Steering Levers on page 27.
10. Check tire pressures and inflate to
recommendation.
See Check Tire
Pressure on page 22. See Specifications
on page 40.
11. Make sure deck is level. See Level and
Pitch Mower Deck on page 35.
12. Ensure all hardware is tight.
ASSEMBLY
WARNING: AVOID INJURY.
Read and understand the
Safety section before
proceeding.

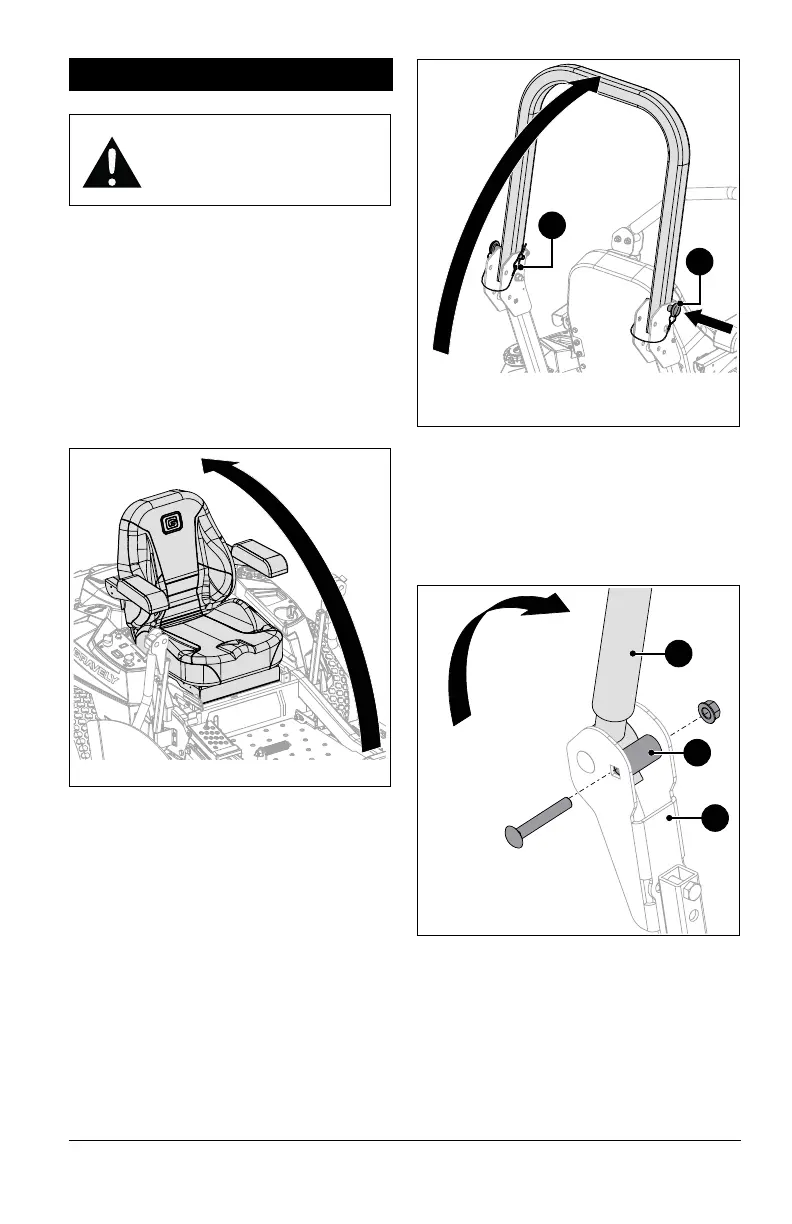

Figure 3
Figure 4
1. Lock Pin
2. Hairpin
1
2
Figure 5
1. Eccentric Spacer
2. Steering Lever
3. Steering Lever Plate
1
2
3
