EN - 26
ADJUST SEAT

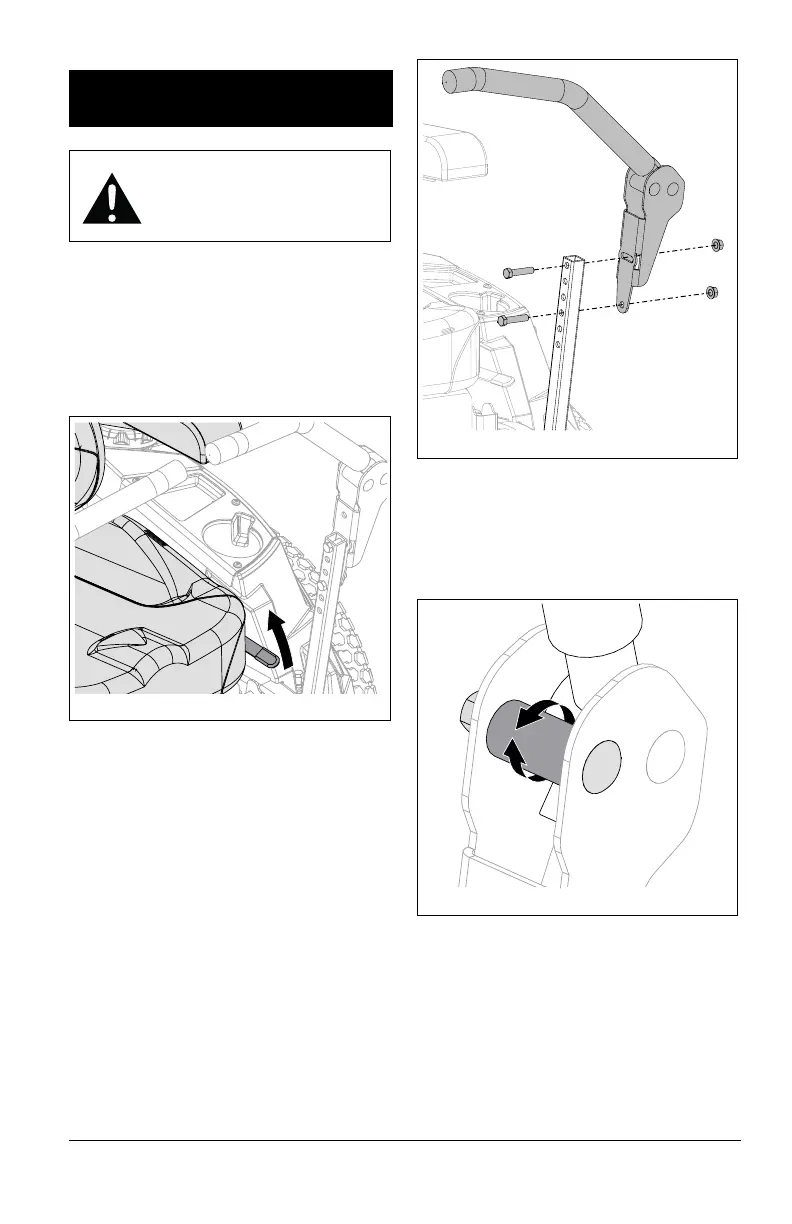

See Figure 27.
1. Pull seat adjustment lever up to unlock
seat.
2. Move seat to desired position.
3. Release seat adjustment lever to lock
seat in place.
ADJUST STEERING LEVERS
Adjust Height
The steering lever height may be adjusted for
operator comfort.
See Figure 28.
1. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
2. Remove steering lever hardware and
remove steering lever from lower control
arm.
3. Position steering lever at desired height
and align with lower control arm. Secure
with original hardware.
4. Adjust steering lever position. See Adjust
Steering Levers on page 27.
5. Turn eccentric spacer so levers are at the
same height and have a 1.3 cm – 2.5 cm
(1/2" – 1") gap between lever ends. See
Figure 29.
If there is more than 3.2 mm (1/8") between
the horizontal alignment of the steering
levers, align the levers.
6. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
7. Engage parking brake.
8. Loosen mounting hardware, align levers
and tighten hardware.
See Figure 30.
SERVICE &
ADJUSTMENTS
WARNING: AVOID INJURY.
Read and understand the
Safety section before
proceeding.
