Install Battery
1. Reinstall positive cable and then the
negative cable.
2. Insert T bracket through lower slots in
hold-down brackets.
3. Tighten hex nut securing right hold-down
bracket to frame.
4. Return seat to operating position
See Figure 24.
Charge Battery
Check battery with a voltmeter. If battery is
less than 11 volts, charge battery.
NOTICE: DO NOT fast charge. Charging at a
higher rate damages or destroys the battery.
ONLY use an automatic charger designed for
use with your battery.
NOTICE: Always follow information provided
on battery by battery manufacturer. Contact
battery manufacturer for detailed information
about charging.
1. Remove battery from unit. See Remove
Battery on page 24.
2. Place battery on bench or other well-
ventilated area.
3. Connect positive lead of charger to
positive battery terminal.
4. Connect negative lead of charger to
negative battery terminal.
5. Charge battery following battery
manufacturer’s instructions.
6. Reinstall battery. See Install Battery on
page 25.
Jump Starting
Gravely does not recommend jump starting
your unit. Jump-starting can damage engine
and system components. Refer to engine
manual for details.
CHECK MOWER BELTS
Check belts for wear and replace as needed.
CHECK HYDRAULIC SYSTEM
Check Hydraulic Oil Level
1. Place unit in service position. See
Service Position on page 20.
2. Check oil level in expansion tanks. Oil
should reach the cold fill indicator mark.
See Figure 25.
IMPORTANT: Engine should be cold when
checking initial oil level.
3. Operate engine for 1 minute and recheck
oil levels.
4. Add hydraulic oil, if needed.
a. Remove expansion tank caps.
b. Fill expansion tanks with 15W-50
synthetic motor oil (Gravely p/n
00057100) or equivalent) until oil
reaches the cold fill indicator mark.
See Figure 25.
c. Reinstall expansion tank caps.
CAUTION: DO NOT allow direct
metal contact across battery
posts.

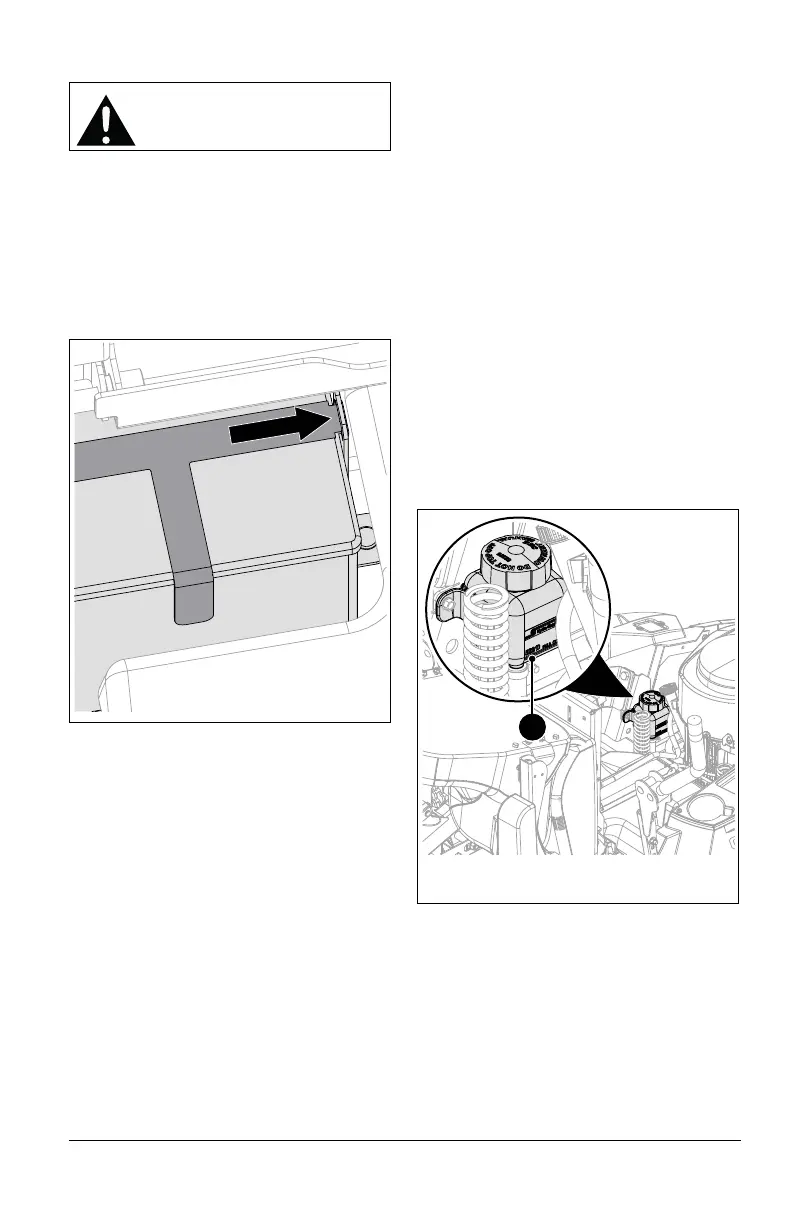

Figure 25
1. Cold Fill Line
