Gravely Pro-Turn ZX 48 User Manual

EN - 34
7. Remove hardware retaining deck lift links
to deck lift brackets.
See Figure 51.
8. Remove deck from under unit.
Install Deck
1. Position deck under unit.
See Figure 52.
2. Reinstall drag links to frame with original
hardware.
3. Secure deck lift links to deck lift brackets
with original hardware.
4. Reinstall PTO belt. See Install PTO Belt
on page 31.
5. Reconnect lift-assist springs to spring
pegs.
6. Level the deck. See Level and Pitch
Mower Deck on page 35.
LEVEL AND PITCH MOWER
DECK
IMPORTANT: Make sure unit is on a flat,
level surface and that tires are inflated to the
recommended pressures.
Check Blade Level and Pitch
1. Raise deck to 3 1/2" (8.9 cm) cutting
height.
2. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
3. Engage parking brake.
See Figure 53.
4. Position mower blades so ends point left
to right across the width of the deck.
5. Measure the distance between the
ground and the cutting edge of the left
and right blades. If the measurements are
not within 4.7 mm (3/16") of each other,
level the deck.
See Level and Pitch
Mower Deck on page 35.

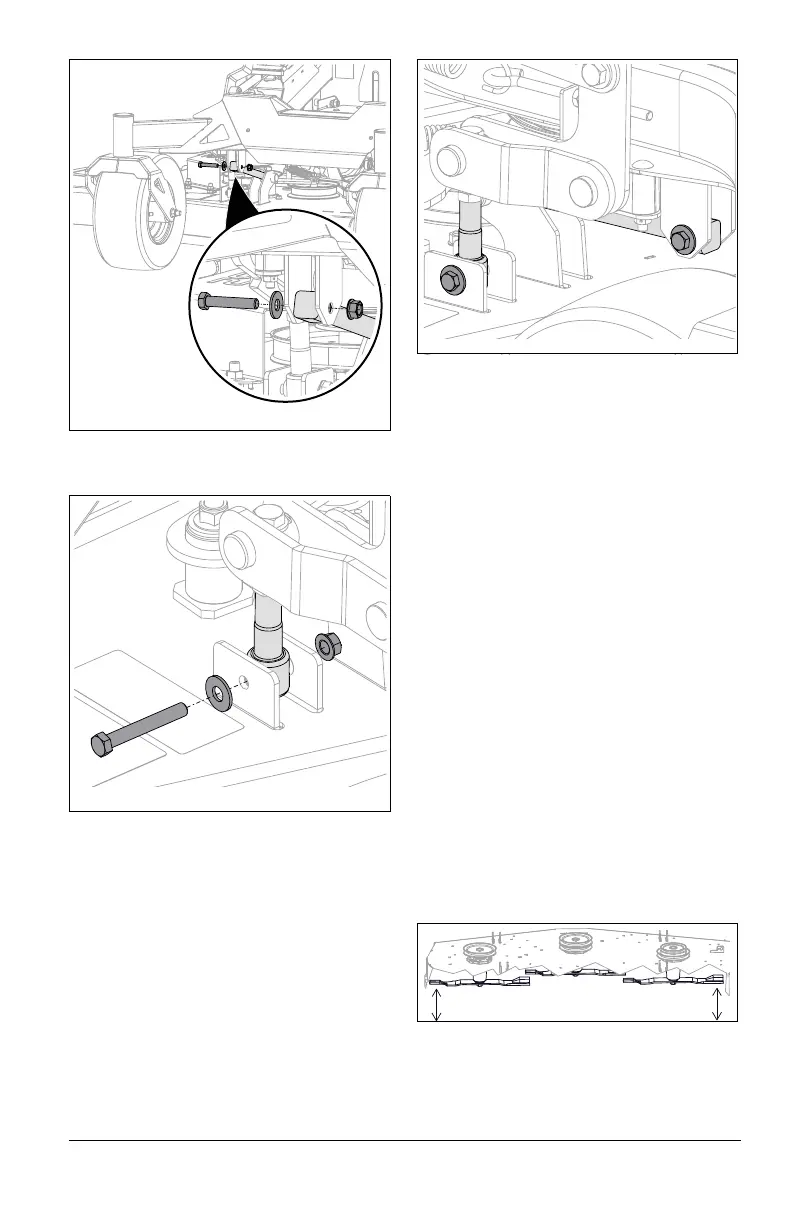

Figure 50
Figure 51
Figure 52
Figure 53
