Gravely ZT XL 48 User Manual

EN - 9
REQUIRED TOOLS
• 1/2", 3/8" 7/16" and 9/16" wrench and/or
adjustable wrench
UNPACK UNIT
1. Disengage transaxles. See Move Unit
Manually on page 18.
2. Disengage parking brake. See Parking
Brake Lever on page 16.
3. Move unit from container to a level
surface.
4. Engage parking brake. See Parking
Brake Lever on page 16.
5. Engage transaxles. See Move Unit
Manually on page 18.
6. Cut all packaging cable ties on unit and
discard.
7. Remove packaging material from unit and
discard.
SECURE SEAT CABLE
1. Remove nut and one end of seat cable.
Reinstall nut to secure remaining cable
end to seat plate.
See Figure 3.
2. Remove nut from bolt on battery tray.
Retain nut.
See Figure 4.
See Figure 5.
3. Tilt seat up slightly so cable end reaches
bolt on battery tray.
4. Install cable end onto bolt on battery tray
and secure with nut removed in step
2.
5. Models 915255, 915256, 915257 Only:
Reposition seat.
See Reposition Seat
And Connect Switch on page 10.
ASSEMBLY

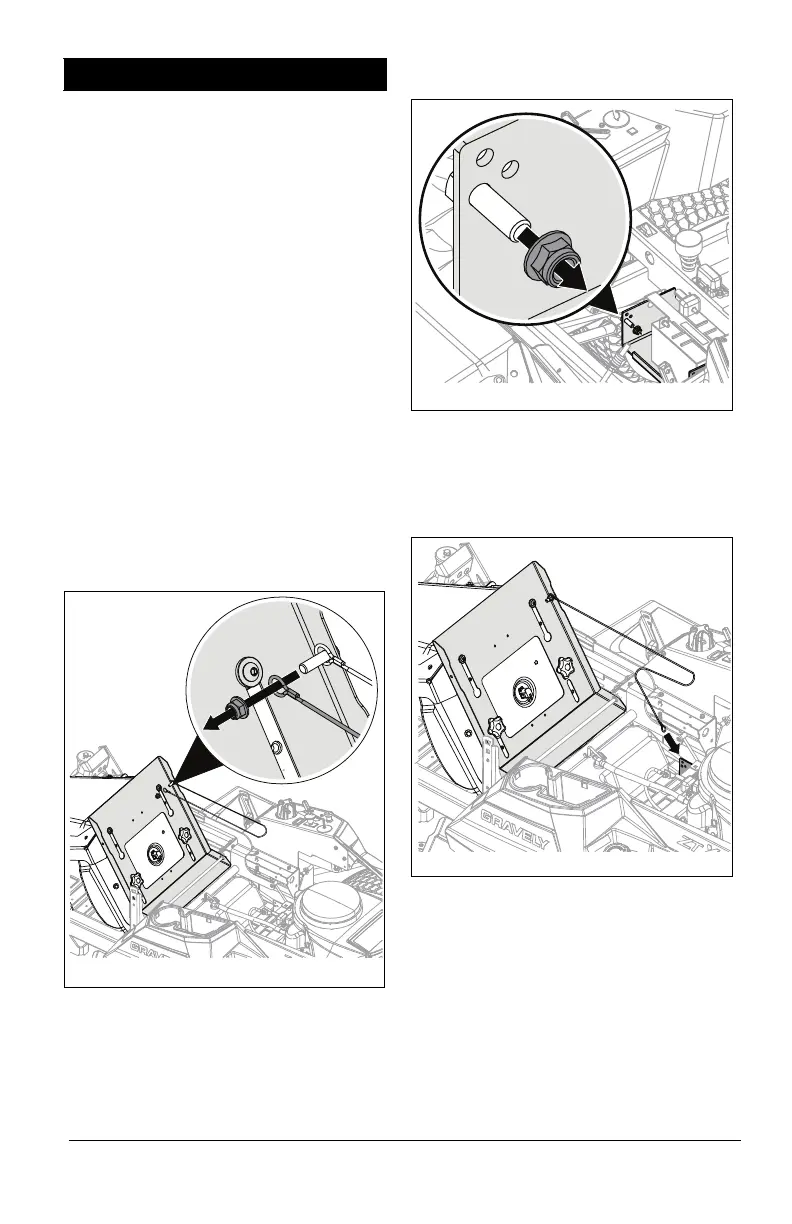

Figure 3
Figure 4
Figure 5

Gravely ZT XL 48 Specifications

General

Engine Brand	Kawasaki
Engine Model	FR691V
Horsepower	23 HP
Engine Displacement	726cc
Cutting Width	48 inches
Transmission Type	Hydrostatic
Transmission	Hydro-Gear ZT-2800
Deck Material	Steel
Deck Type	Fabricated
Max Forward Speed	8 mph
Max Reverse Speed	4 mph
Deck Thickness	10 gauge
Turning Radius	0 in
