Gravely ZT XL 48 User Manual

EN - 14
1. Fuel Tank and Cap
2. Fuel Level Window
3. Oil Filter
4. Oil Drain
5. Engine Oil Dipstick
6. Ignition Key
7. Choke Control Knob (Models 915255,
915256, 915257, 915261, 915262,
915263, 915264, 915274)
8. Throttle Control Lever
9. Power Take-off (PTO) Knob
10. Hour Meter
11. Height-of-Cut Dial
12. Deck Lift Pedal
13. Headlight (Models 915258, 915259,
915260, 915261, 915262, 915263,
915264, 915274, 915278)
14. Seat Adjustment Lever (Models 915258,
915259, 915260, 915261, 915262,
915263, 915264, 915274, 915278)
15. Parking Brake Lever
16. Belt Guard (2)
17. Mower Deck
18. Steering Lever (2)
19. Discharge Chute
20. Anti-Scalp Wheel
21. Transaxle Bypass Lever (2)
22. Battery (Under Seat)

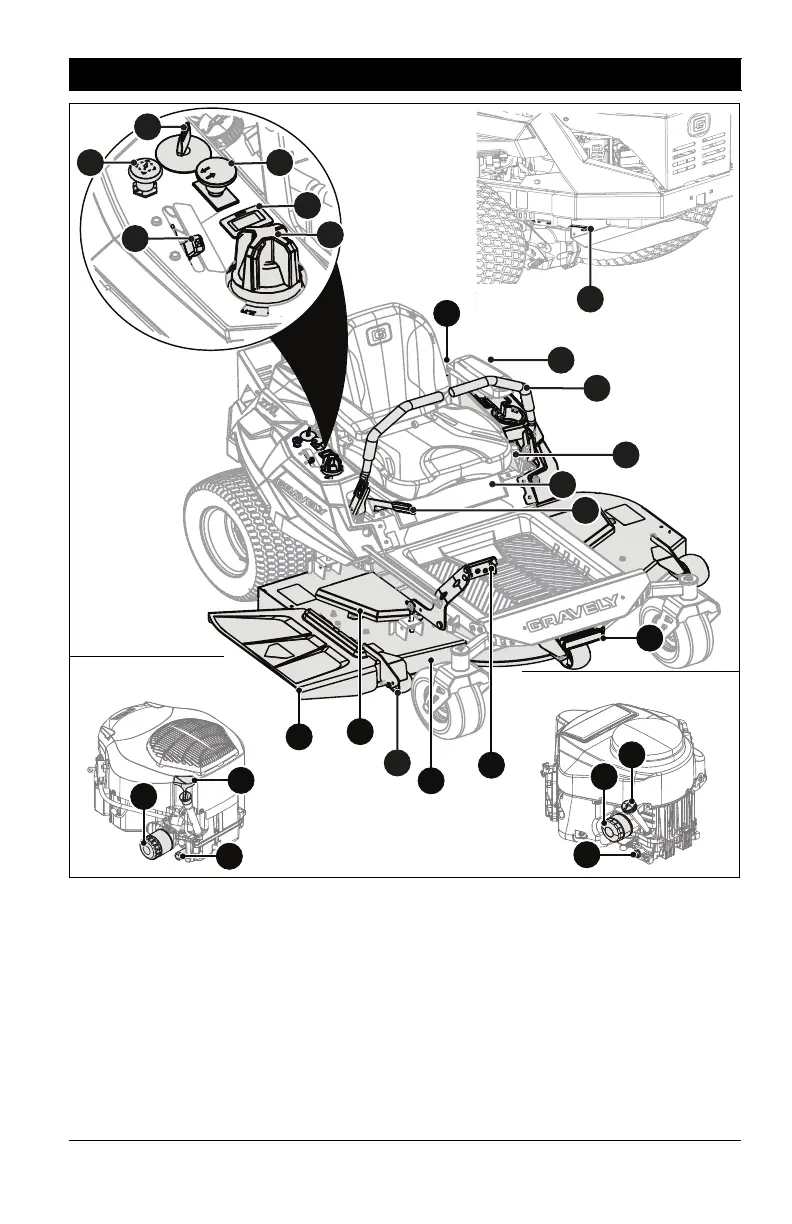

CONTROLS AND FEATURES
Figure 19
9
19
17
12
20
13
10
8
11
6
21
15
16
18
2
1
Models 915257, 915261, 915262,
915263, 915264, 915274
Models 915255, 915256,
915258, 915259, 915260,
915278
7
3
4
5
3
4
5
22
14

Gravely ZT XL 48 Specifications

General

Engine Brand	Kawasaki
Engine Model	FR691V
Horsepower	23 HP
Engine Displacement	726cc
Cutting Width	48 inches
Transmission Type	Hydrostatic
Transmission	Hydro-Gear ZT-2800
Deck Material	Steel
Deck Type	Fabricated
Max Forward Speed	8 mph
Max Reverse Speed	4 mph
Deck Thickness	10 gauge
Turning Radius	0 in
