Gravely ZT XL 48 User Manual

EN - 10
6. Insert cable clip into lower hole on battery
tray.
See Figure 6.
REPOSITION SEAT AND
CONNECT SWITCH
Models 915255, 915256, 915257
1. Remove and retain wing knobs and
washers from seat plate.
See Figure 7.
2. Move seat forward and reinstall original
hardware.
See Figure 8.
3. Connect start switch.
4. Insert cable clip into lower hole on battery
tray.
See Figure 6.
IMPORTANT: Seat switch must be connected
for unit to operate.
SECURE BATTERY CABLE
1. Remove the hex bolt, hex nut and flat
steel washer from the negative battery
cable. Retain hardware.
See Figure 9.

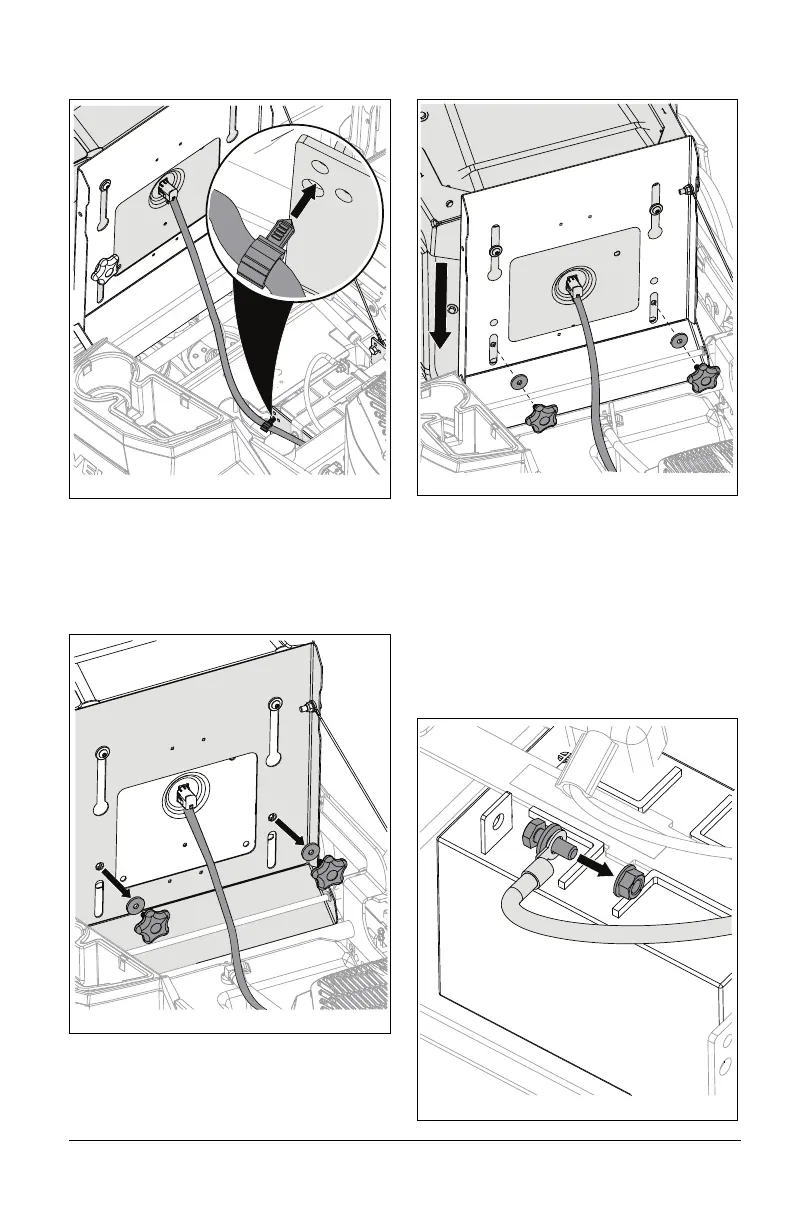

Figure 6
Figure 7
Figure 8
Figure 9

Gravely ZT XL 48 Specifications

General

Engine Brand	Kawasaki
Engine Model	FR691V
Horsepower	23 HP
Engine Displacement	726cc
Cutting Width	48 inches
Transmission Type	Hydrostatic
Transmission	Hydro-Gear ZT-2800
Deck Material	Steel
Deck Type	Fabricated
Max Forward Speed	8 mph
Max Reverse Speed	4 mph
Deck Thickness	10 gauge
Turning Radius	0 in
