EN - 15

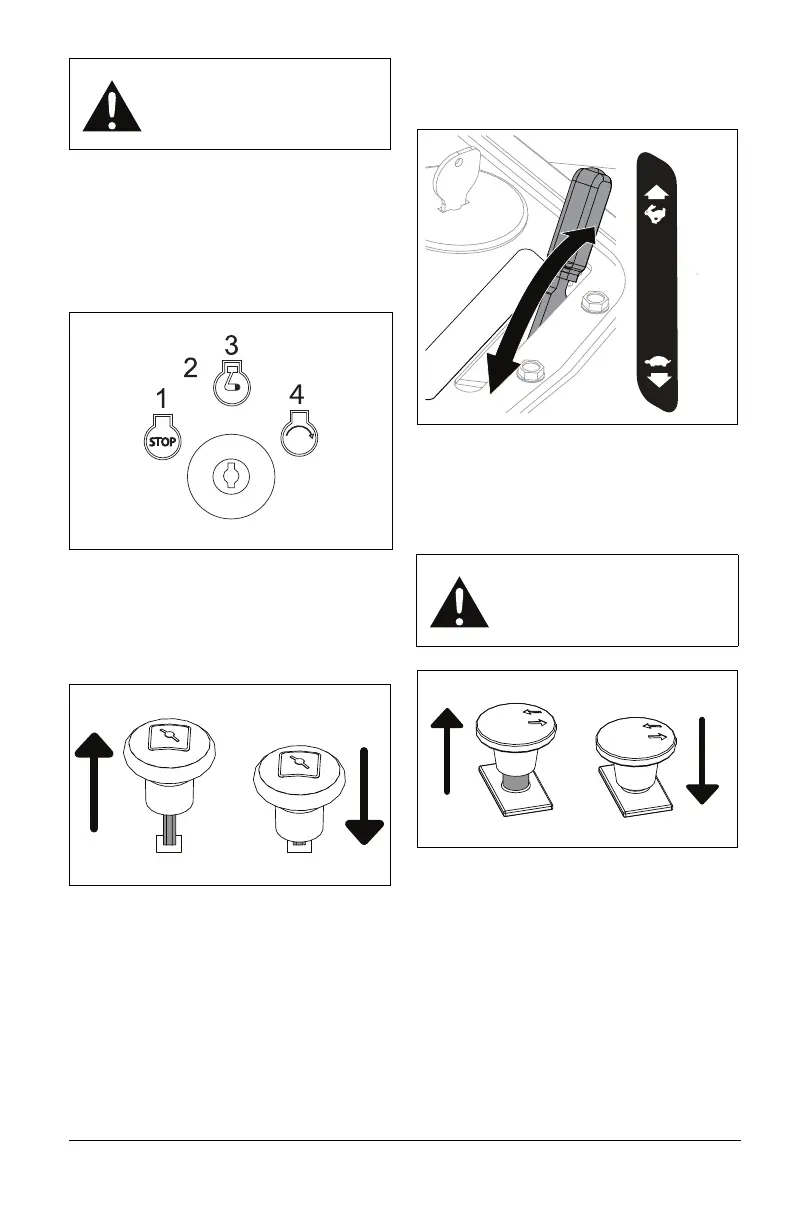

See Figure 19 for all controls and features
locations.
IGNITION KEY
See Figure 20.
Controls power to the engine. The key cannot
be removed when in run position.
CHOKE CONTROL KNOB
Models 915255, 915256, 915257, 915261,
915262, 915263, 915264, 915274
See Figure 21.
Controls airflow to the engine.
THROTTLE CONTROL LEVER
See Figure 22.
Controls engine speed.
POWER-TAKE-OFF (PTO) KNOB
See Figure 23.
Controls power to mower blades. The engine
will not start with the PTO knob in the on
position.
HOUR METER
Hour meter measures engine runtime and
cannot be reset.
HEIGHT-OF-CUT DIAL
Sets the mower height of cut.
DECK LIFT PEDAL
Raises or lowers mower deck.
WARNING: AVOID INJURY.
Read and understand the
entire
Safety section before
proceeding.
Figure 20
Off
On
Start
On With
Headlights
(If Equipped)
Figure 21
Choke On
Choke Off
WARNING: AVOID INJURY.
Blades will not immediately
stop after pushing PTO knob
down to off position.
Figure 22
Fast
Slow
Figure 23
Blades Off
Blades On
