Gravely ZT XL 48 User Manual

EN - 12
INSTALL DECK LIFT PEDAL
1. Remove hardware securing deck lift
pedal to unit and remove pedal.
See
Figure 14.
2. Rotate pedal as shown in Figure 15 and
secure to unit with hardware removed in
step
1.
ADJUST CASTER WHEEL
HEIGHT
1. Engage parking brake. Lift front of unit
and position suitable jack stand or
support under front of unit.
See Figure 16.
IMPORTANT: ALWAYS chock wheels and
know all jack stands are strong and secure
and will hold weight of unit during
maintenance.
2. Remove hardware retaining front wheel
assembly. Retain hardware for
reinstallation.
See Figure 17.

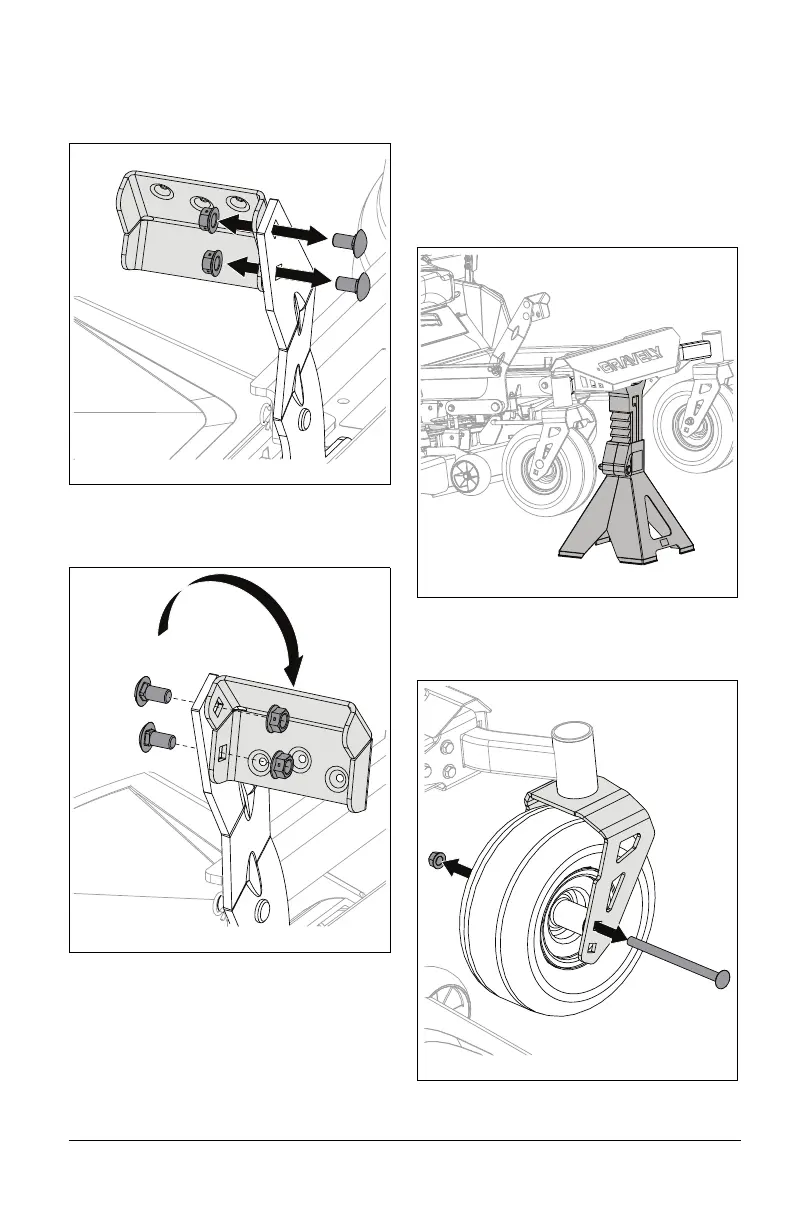

Figure 14
Figure 15
Figure 16
Figure 17

Gravely ZT XL 48 Specifications

General

Engine Brand	Kawasaki
Engine Model	FR691V
Horsepower	23 HP
Engine Displacement	726cc
Cutting Width	48 inches
Transmission Type	Hydrostatic
Transmission	Hydro-Gear ZT-2800
Deck Material	Steel
Deck Type	Fabricated
Max Forward Speed	8 mph
Max Reverse Speed	4 mph
Deck Thickness	10 gauge
Turning Radius	0 in
