See Figure 33.
1. Tip seat forward.
2. Loosen the two wing knobs located at the
front of the seat plate.
3. Adjust seat to desired position.
4. Tighten wing knobs.
5. Return seat to operating position.
ADJUST STEERING LEVERS
Adjust Steering Lever Height
See Figure 34.
1. Remove hardware securing steering
lever to upper control arm.
2. Place steering lever in desired adjusting
hole.
• Use upper and middle holes for highest
lever position.
• Use middle and lower holes for lowest
lever position.
3. Reinstall hardware in upper control arm.
4. Align levers side to side. See Adjust
Steering Level Reach on page 26.
5. Fully tighten hardware.

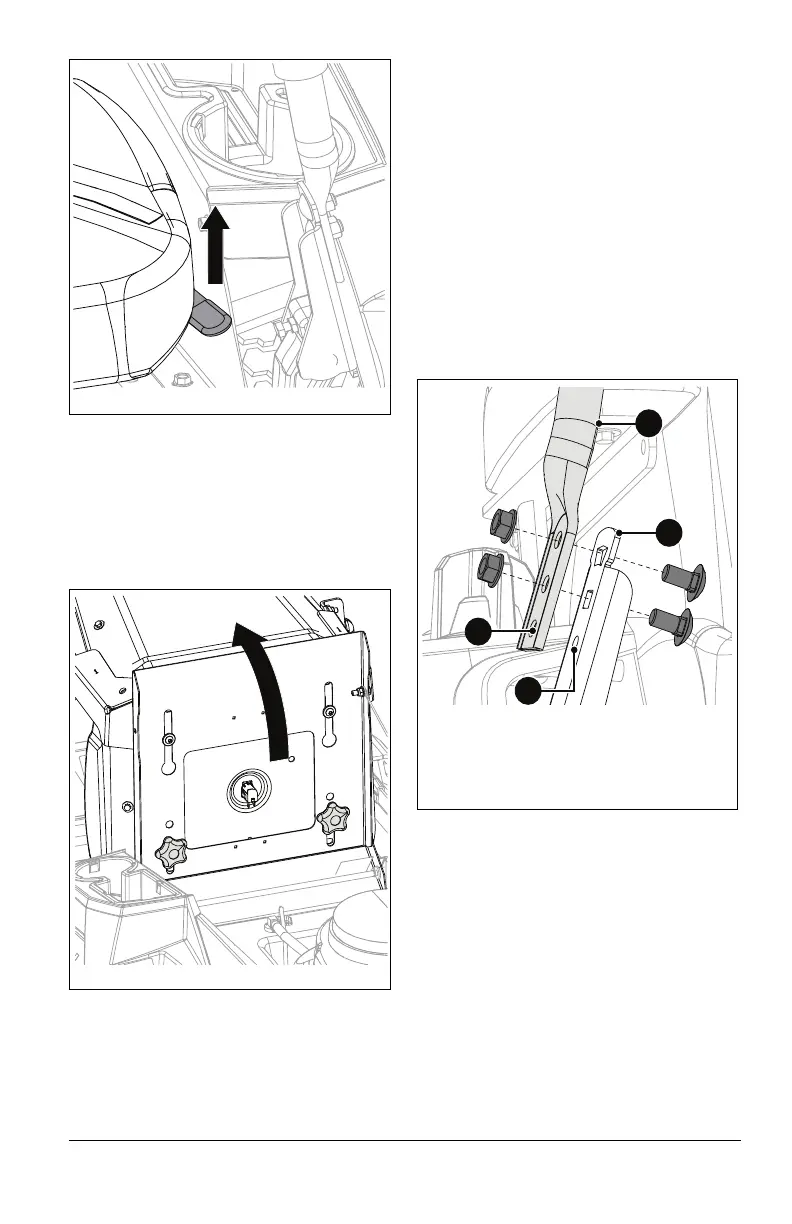

Figure 32
Figure 33
Figure 34
1. Adjusting Hole
2. Mounting Hole
3. Steering Lever
4. Upper Control Arm
4
3
2
1

Gravely ZT XL 48 Specifications

General

Engine Brand	Kawasaki
Engine Model	FR691V
Horsepower	23 HP
Engine Displacement	726cc
Cutting Width	48 inches
Transmission Type	Hydrostatic
Transmission	Hydro-Gear ZT-2800
Deck Material	Steel
Deck Type	Fabricated
Max Forward Speed	8 mph
Max Reverse Speed	4 mph
Deck Thickness	10 gauge
Turning Radius	0 in
