12
It indicates the shield status. (It appears when all functions, or the function “On/Off”, “Temp”, “Mode”, or “
Save” is shielded through the Long-distance monitoring System.)
13 It indicates the current fan speed.
14
It indicates the memory function is activated, that is, the unit will back to the previous set status after
powered on again.
15 It indicates the turbo status.
16 It ashes animatedly when the unit is started and the ambient temperature is displayed.
17 It indicates the ambient temperature/set temperature.
18 It indicates the energy saving status.
19 It indicates that the auxiliary electric heater can be activated.
20 It indicates the blow function is activated.
21 It indicates the timer status.
22 It indicates the quiet operation status. (including two statuses, “Quiet” and “Auto Quiet”. )
Note: Symbols “MASTER” and “CO2” will not displayed on the LCD of the wired controlled XK26.

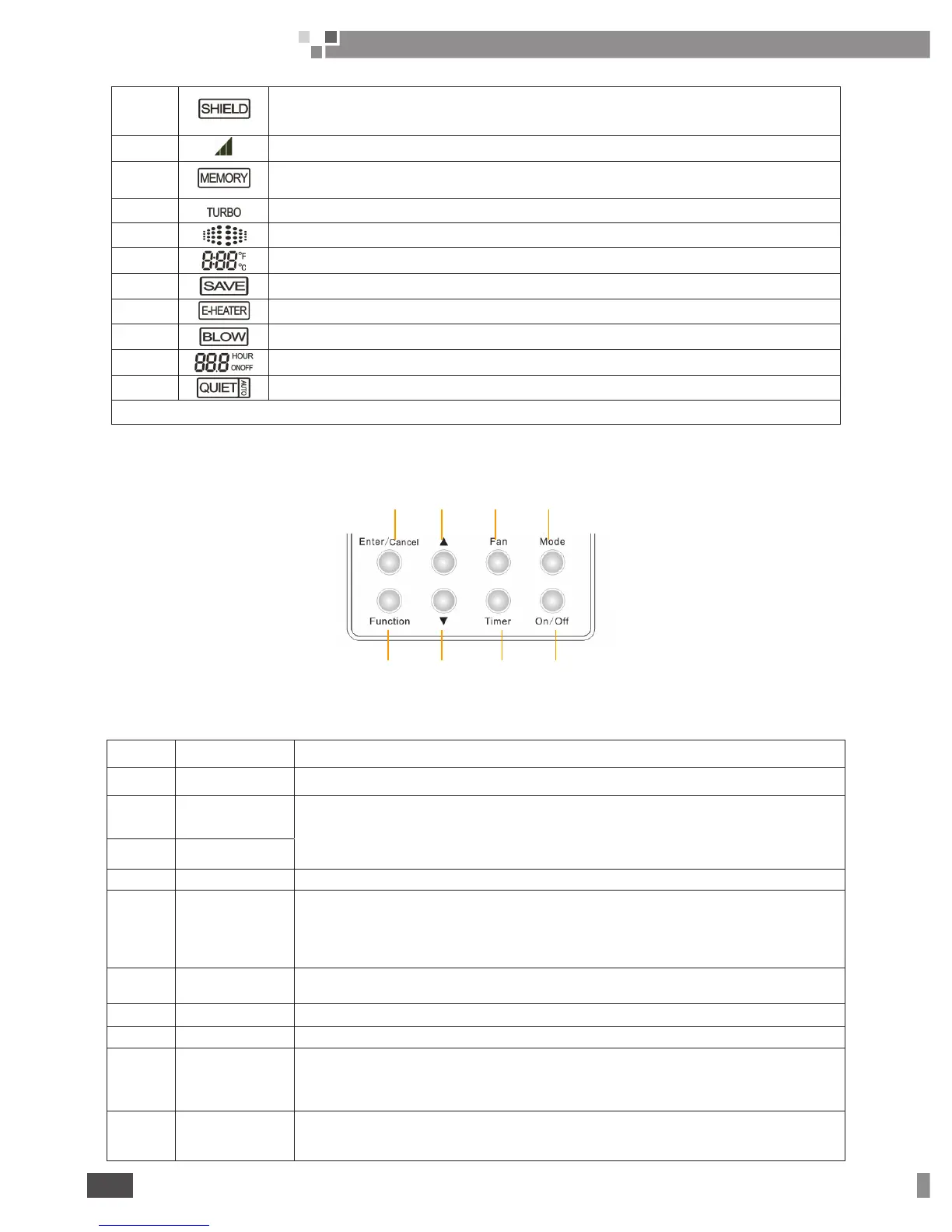

2 Press Keys
2.1 Name of Press Keys
1
5 6 7 8
2 3
2.2 Introduction to the Functions of the Press Keys
Table 2 Introduction to the Functions of the Press Keys
No. Press Bottoms Function Description
1 Enter/Cancel It is used to select the desired function or cancel the selected function.
2 ▲
(1) It is used to adjust the running temperature of the indoor unit among16~30
℃
.
(2) It is used to adjust the temperature under the energy saving condition among16~30
℃
.
(3) It is used to adjust the timer among 0.5~24 hours.
(4) It is used to switch between the modes of “Quiet” and “Auto Quiet ”.
6 ▼
3 Fan There are four fan speed options, High, Medium, Low and Auto.
4 Mode
(1) It is used to set the mode of “Cool”,“Dry”, “Fan”, and “Heat”.
(2) When the “Save” function is being set, it is used to switch
between the mode options of “Heat” and “Cool”.
(3) When the “ Timer ” is being set, it is used to switch between the options of “Unit On” and “Unit Off”.
5 Function It is used to switch the functions of “Swing”, “Sleep”, “Turbo”, “Save”, “E-Heater”, “Blow”, “Quiet”, etc.
7 Timer It is used to set the timer.
8 On/Off It is used to start/stop the indoor unit.
4 +2
Mode +▲
(MEMORY)
Under the “Off” status of the unit, press “Mode” and “▲” simultaneously for ve seconds to activate
or deactivate the “MEMORY” function. (once this function is activated, the unit with power failure
will resume the previous set status after powered on again; otherwise it will go to the“Off” status.)
2 +6
▲+▼
(LOCK)
Press “▲” and “▼” simultaneously for ve seconds to go to the lock status, in which case the press
on any other key will get no response. And another press on “▲” and “▼” for ve seconds will quit
this status.
