Gree GMV5 Service Manual

GREE Photovoltaic Direct-driven Inverter Multi VRF Units
39

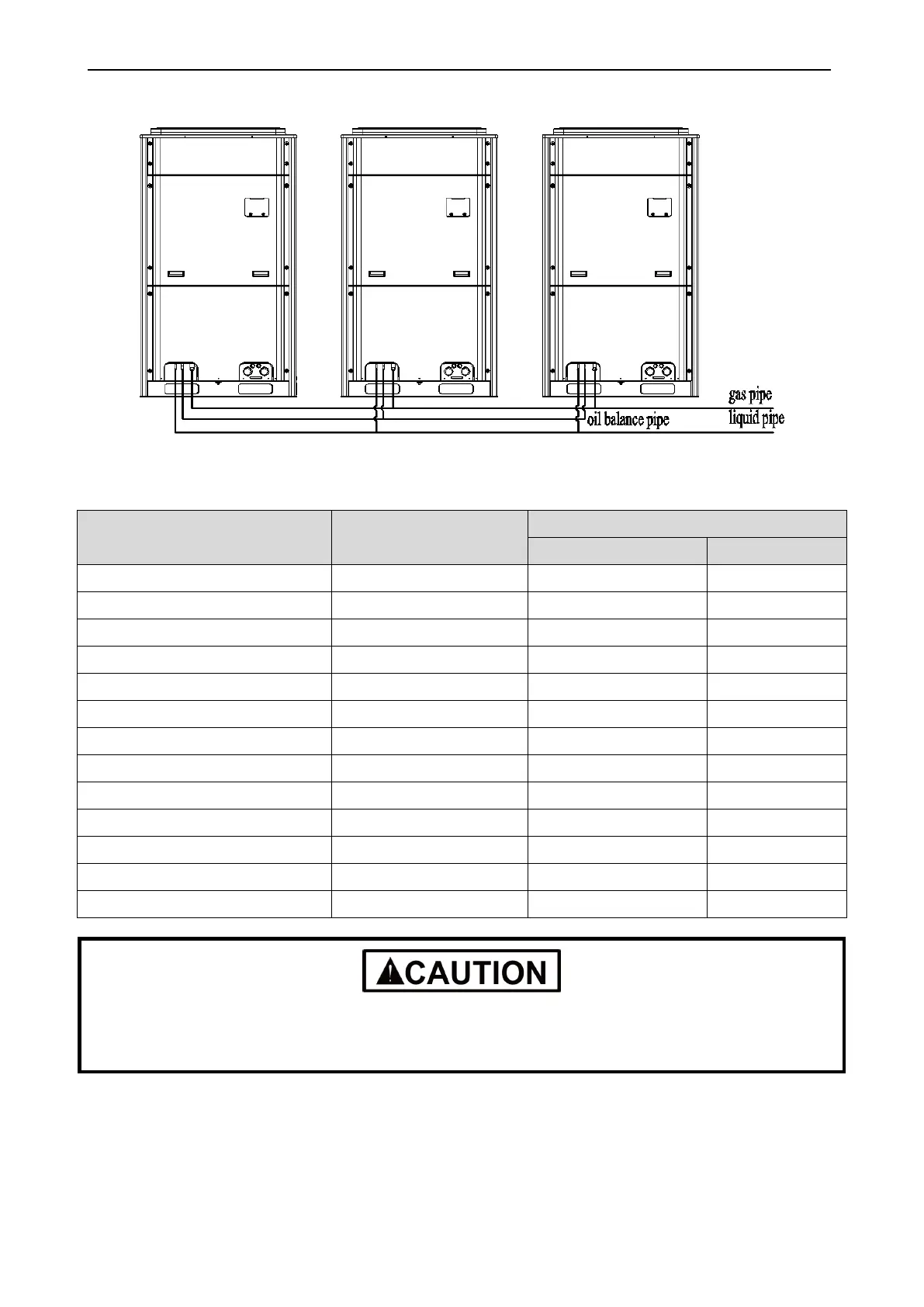

Pipe connection diagram of outdoor modules
Each ODU system can be connected to multiple IDUs. Detailed information about the number of
units to be connected and capacity ranges is shown in the following table:
Model
Maximum Number of
Connected IDUs (units)
Capacity Range of Connected IDU (kBtu/h)
Minimum Capacity Maximum Capacity
GMV-Y72WM/C-F(U) 13 36.0 97.2
GMV-Y96WM/C-F(U) 16 48.0 129.6
GMV-Y120WM/C-F(U) 19 60.0 162.0
GMV-Y144WM/C-F(U) 23 72.0 194.4
GMV-Y168WM/C-F(U) 29 84.0 226.8
GMV-Y192WM/C-F(U) 33 96.0 259.2
GMV-Y216WM/C-F(U) 36 108.0 291.6
GMV-Y240WM/C-F(U) 39 120.0 324.0
GMV-Y264WM/C-F(U) 46 132.0 356.4
GMV-Y288WM/C-F(U) 50 144.0 388.8
GMV-Y312WM/C-F(U) 53 156.0 421.2
GMV-Y336WM/C-F(U) 56 168.0 453.6
GMV-Y360WM/C-F(U) 59 180.0 486.0
 During installation, please strictly follow the above capacity range and number to construct,
otherwise, units may work abnormally and compressors may even be damaged
