Wired Remote Controller XK19
17
4 Installation and Dismantlement
4.1 Connection of the Signal Line of the Wired Remote Controller
● Open the cover of the electric control box of the indoor unit.
● Let the single line of the wired remote controller through the rubber ring.
● Connect the signal line of the wired remote controller to the 4-pin socket of the indoor unit
PCB.
● Tighten the signal wire with ties.
● The communication distance between the main board and the wired remote controller can
be up to 20 meters ( the standard distance is 8 meters)
4.2 Installation of the Wired Remote Controller
1
PVC Pipe
3 4 52

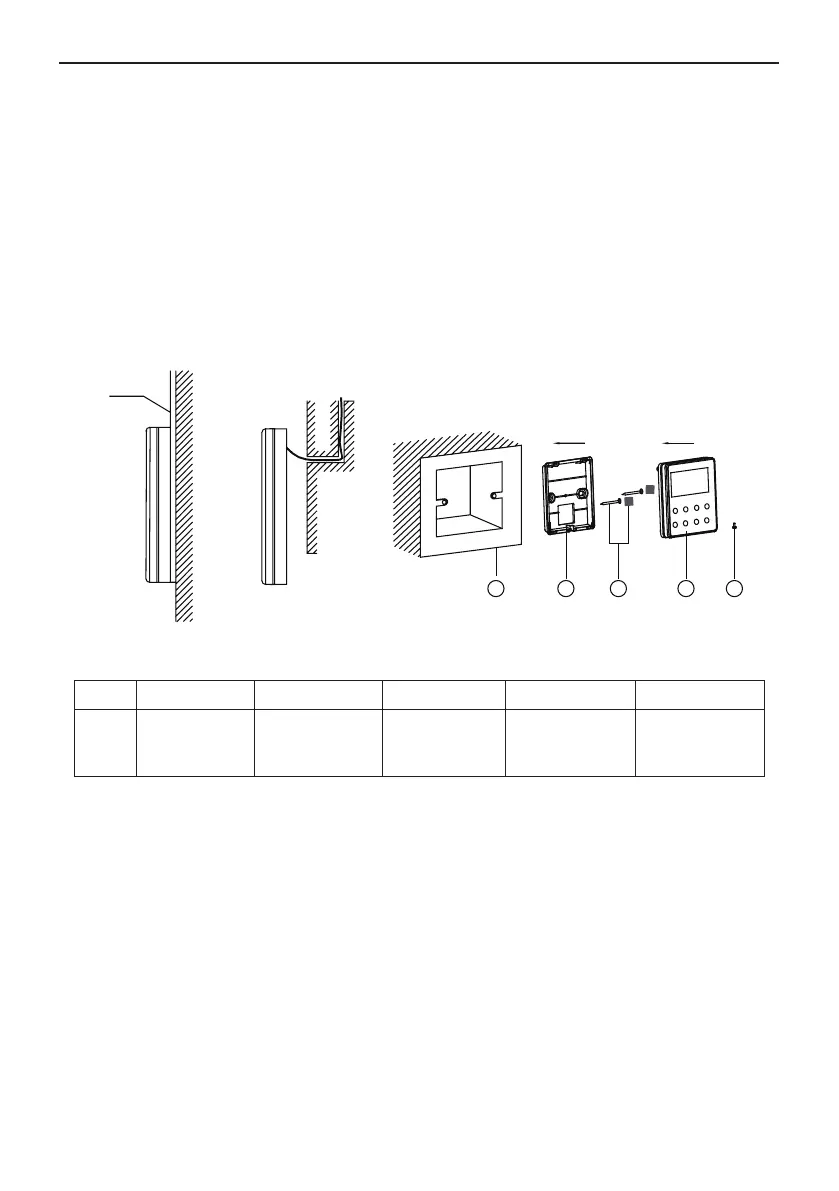

Fig.17 Accessories for the Installation of the Wired Remote Controller
Table 3
No. 1 2 3 4 5
Name
Socket box
embedded
in the wall
Soleplate of the
Wired Remote
Controller
Screw M4X25
Front Panel of the
Wired Remote
Controller
Screw ST2.9X6
Sponge 20×20×2
