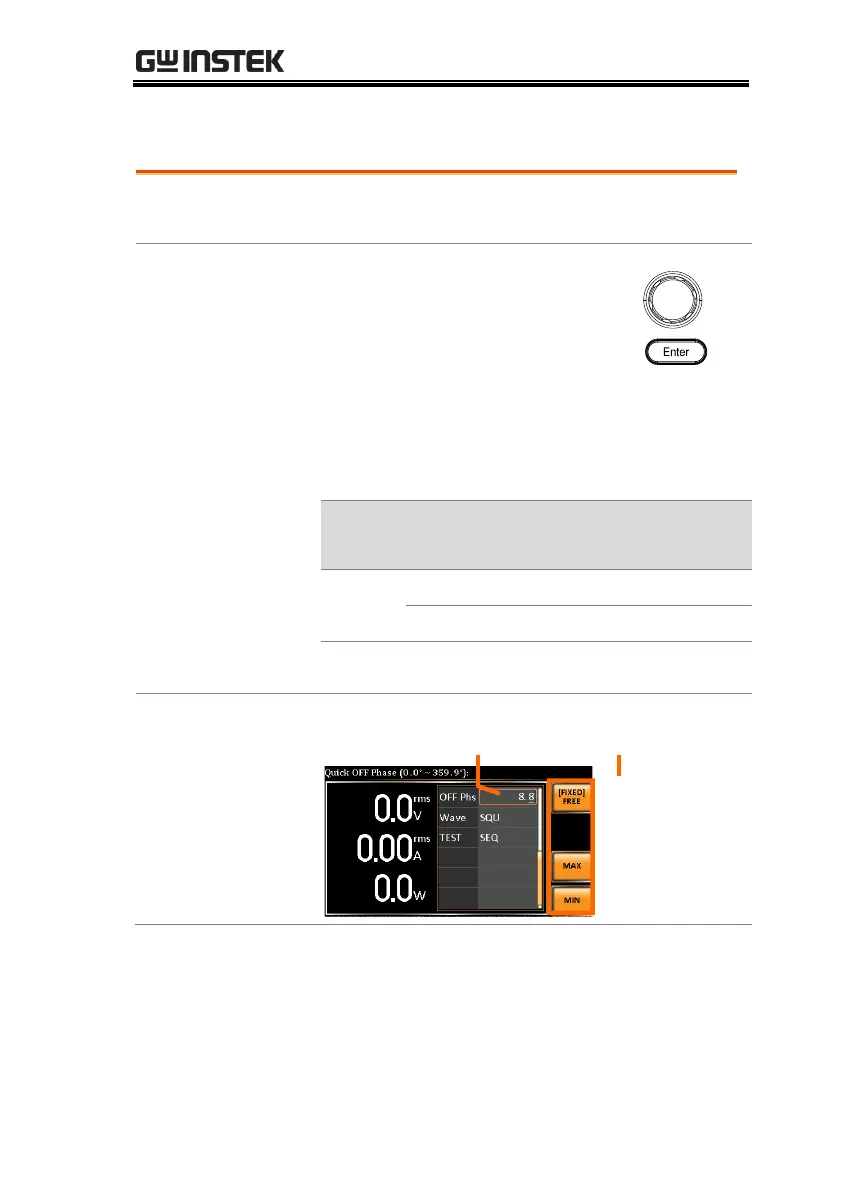

GW Instek ASR-2000 Series User Manual

OPERATION
87
Setting the Output Off Phase
Background
The off phase setting sets the ending phase of the
voltage output.
Steps
1. Use the scroll wheel followed by
the Enter key to make the OFF Phs
parameter selectable.
2. Set the OFF Phs setting with the scroll wheel or
with the F3 (MAX) and F4 (MIN) soft-keys to set
the Off Phase to the maximum and minimum
values, respectively.
AC+DC-INT, AC-INT, AC+DC-ADD,
AC-ADD, AC+DC-Sync, AC-Sync, AC-VCA
OFF Phs
Range
0.0° ~ 359.9°
Soft-keys
FIXED/FREE, MAX, MIN
3. Press Enter to confirm the Off Phase setting.
Example of OFF
Phase Setting
OFF Phase setting
F1
F3
F4
Soft-keys setting
