12 HARDI
®
NAVIGATOR 550M, 800M, 1000M CENTRIFUGAL OPERATOR'S MANUAL
3.0 HOOKING UP THE SPRAYER
3.1 Clevis Hitch
WARNING:
THE TRAILER TONGUE MUST BE ADEQUATELY
SUPPORTED AND WHEELS BLOCKED BEFORE
ADJUSTING CLEVIS HITCH POSITION.

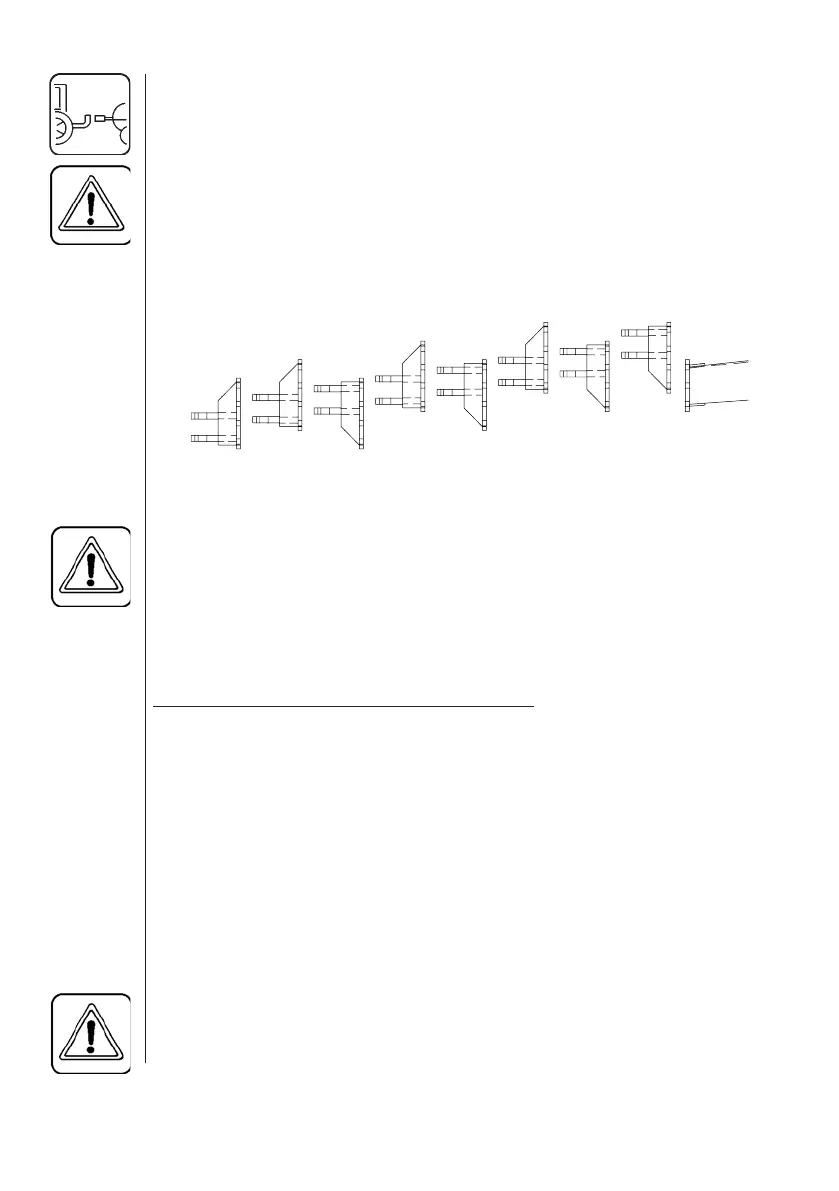

Adjusting the height of the clevis is obtained by removing the four bolts
and repositioning the clevis in one of the eight different settings (Fig. 2).
This will allow for 13" of adjustment to suit tractor drawbar height and to
maintain the sprayer tank level.
3.2 Wheel Spacing And Ground Clearance
WARNING:
SECURELY SUPPORT THE SPRAYER DURING AXLE
ADJUSTMENTS. NEVER ATTEMPT TO ADJUST AXLES
WITH LIQUID IN TANK. ALWAYS BLOCK WHEELS ON
OPPOSITE SIDE WHEN ADJUSTING AXLES.
The wheel spacing of the trailer can be set according to the table below:
Wheel Spacing & Clearance Table
Model Wheel Spacing Axle Clearance
STA 550M 60" - 88" 26"
HC 550M (24" tire) 60" - 88" 18"
HC 550M (38" tire) 60" - 88" 24"
TA 800M/1000M* 60" - 88" and 120" 20 / 27.5"
HC 800M/1000M (38“tire) 72" - 88" and 120” 26"
HC 800m/1000M (42“tire) 72" - 88" and 120” 27.5"
To adjust the width, remove the four bolts per side (A) (Fig. 3) and the axle
assemblies can then be pushed in or pulled out in 2" increments until the
required wheel tread is obtained. Then reinstall and refasten all bolts.
WARNING:
IT IS NOT PERMITTED TO FIT DUAL WHEELS TO ANY OF
THE AXLES ON THE NAVIGATOR M. SPRAYER MODELS.
*No longer available
Fig. 2
Adjusting The Clevis Hitch
