Vi1000 USER MANUAL
16.10 16.10: MENU > SYSTEM
16.10: MENU > SYSTEM
System monitoring and HiQnet setup.
In normal operation, the main System Monitoring Overview Display Area is located at the top right of the Master Bay
touch screen, and the Error Log Display Area is just below it. Within the System Monitoring Overview Display Area
each hardware device and the HiQnet™ network state is represented with a coloured label. The label colour indicates
the overall state of the system monitoring page. A green label indicates that this device is running correctly, whereas a
red label indicates an error condition.
Error and warnings are displayed in the Error Log Display Area.

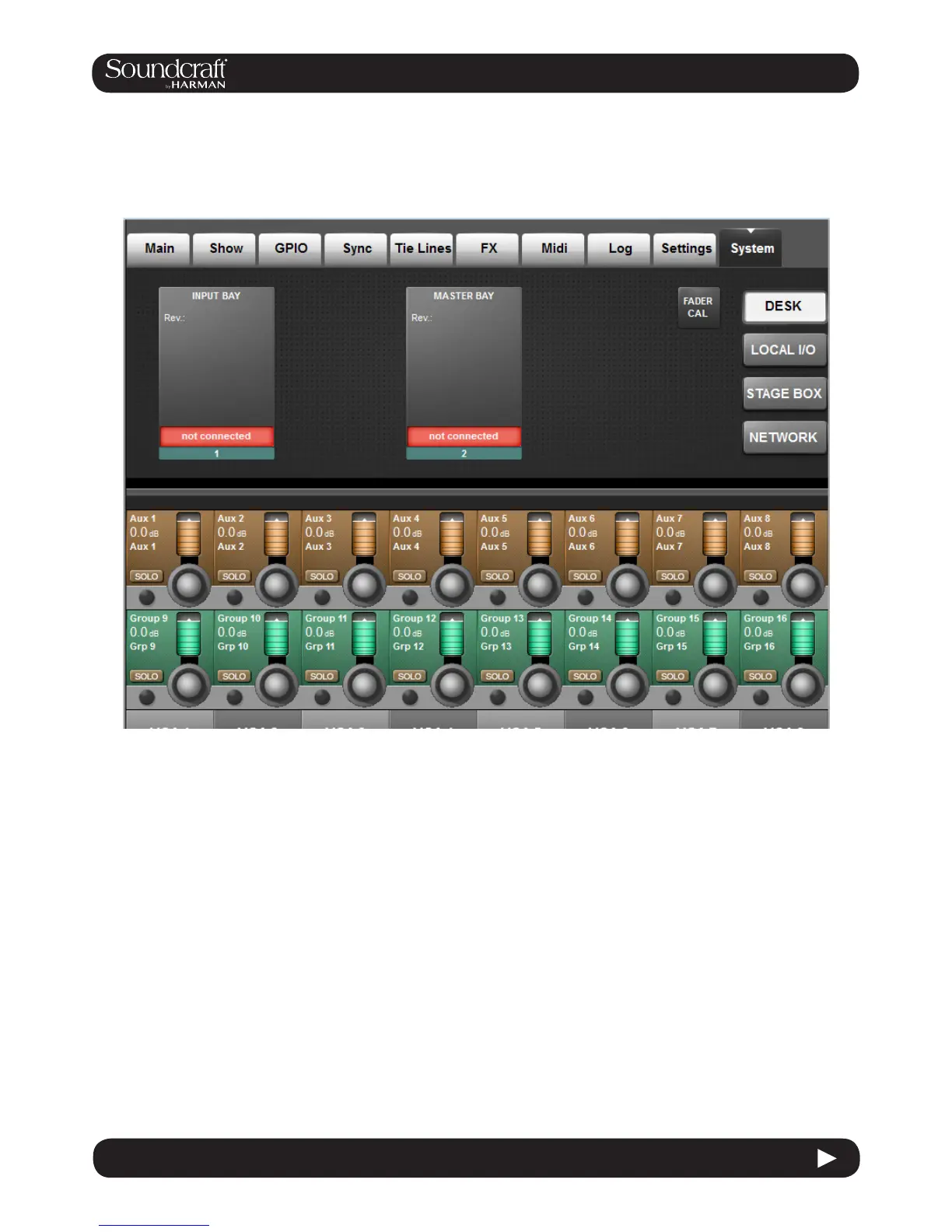

To access detailed System information, enter either though the main menu by pressing [MENU] then (System), or
by touching the System Monitoring Overview Display Area. When the System page has been opened, there are 4
sub-pages accessed via the touch-pads on the right hand side: DESK, LOCAL I/O, STAGE BOX and NETWORK.
MENU: SYSTEM
System Monitoring and HiQnet/VM² Setup
