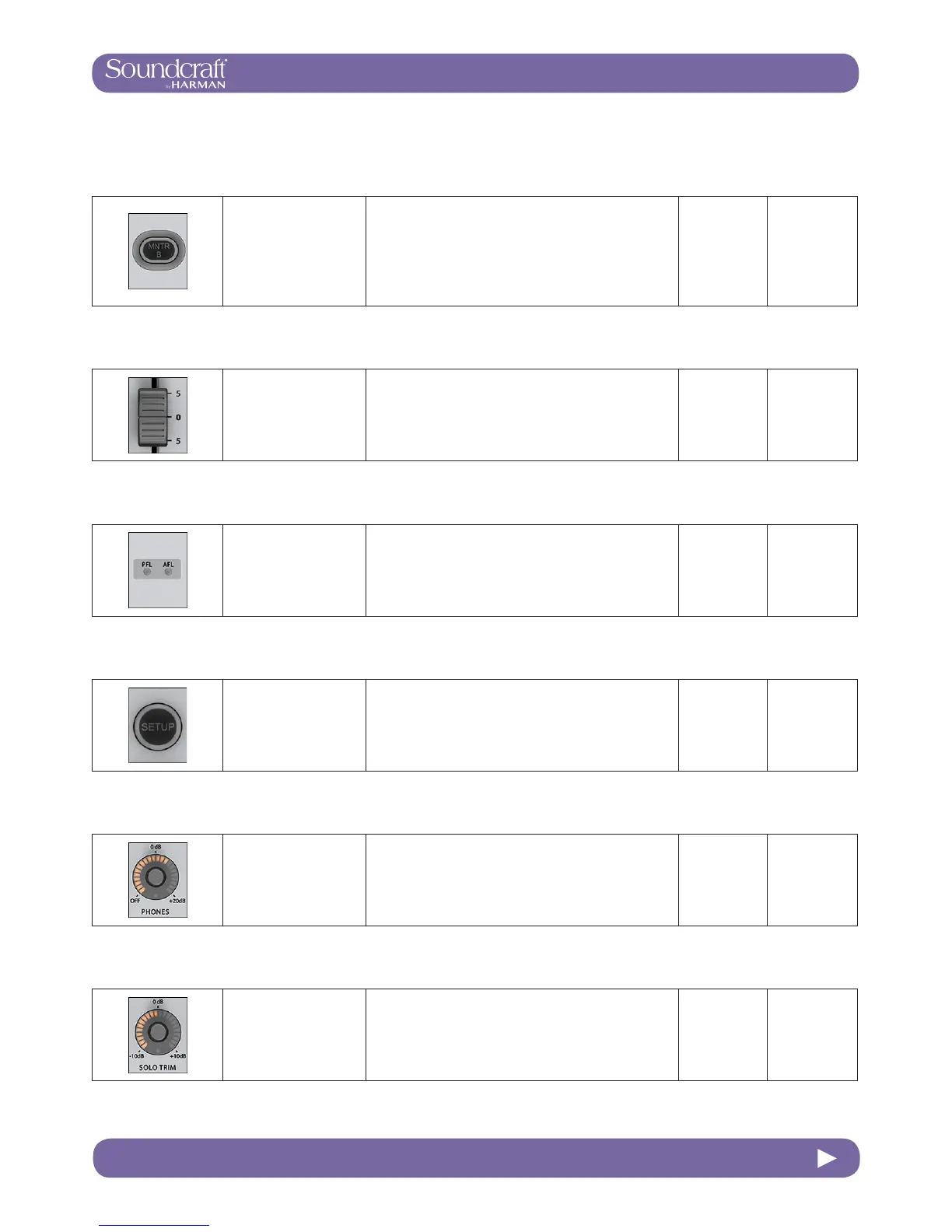

Vi1000 USER MANUAL
10.1 10.1: MONITORING > CONTROL
10.1: MONITORING > CONTROL
MNTR B -
Monitor A/B
Select Inactive Active
Select either the A or
the B monitor to be
displayed on the meter,
to be controlled by
the fader, and to be
switched on and off by
the [ON] switch.
Both Monitor A and B sources are always active -
(respecting their individual On/Off status'). The MTR B
button changes metering and control assignment.
Monitor A Monitor B
Monitor Fader Range Low Range High
Control monitoring
volume level.
Controls either Monitor A or Monitor B level, depending
on state of the Monitor A/B select switch.
-Innty +10dB
AFL and PFL
indication
These two LEDs show if
an active solo is a PFL
or an AFL.
Monitoring
Setup
Active
Display the Monitor
Setup Page on the
master screen.
The [SETUP] key glows blue when it is active. SETUP Active
Headphones
Level Range Low Range High
Control the headphones
volume level.
The headphone output socket is located under the
armrest at the front of the console, and is designed
for headphones with impedances in the range 50-600
Ohms.
OFF +20dB
Solo Trim Range Low Range High
Trims source SOLO
Level.
This control is SOLO context sensitive. It is possible to
set a different trim for each of the 24 outputs in addition
to a global input solo trim level.
-10dB +10dB
