Electrical Installaon and Wiring
Connect the AquaRite+ to a GPO with a permanent power supply only.
pH
Wifi Module
(Optional Wi-Fi Network
Upgrade Kit)
pH Probe
(Optional pH Upgrade Kit)
ORP Probe
(Optional ORP Upgrade Kit)
Remote Screen
(Optional Remote Display
Upgrade Kit)
rX
Temperature
Pobe
(Optional Temperature
Probe Upgrade Kit)
Resettable Circuit
Breaker for Pump
Control Outlet Socket
Display Module
ORP Chip Set
(Optional ORP Upgrade Kit)
pH Chip Set
(Optional pH Upgrade Kit)
Peristaltic Pump
(Optional pH Upgrade Kit)
1 2 3 4
6
7 108 9
5
A
B
C
D
E
A
B
C
D
E
F
G
LIGHT
12V a.c. 50W Maximum
H
AUX 1
1
2
3
4
A1
A2
N L
AUX 4/Heater
(Optional - used with
Temperature Probe Upgrade Kit)
Flow Switch
Spa Detection
Flow Switch
(Optional Spa Flow
Switch Upgrade Kit)
[ FL1(B) - 12+(C) ]
[ SPA/COVER(A) - 12+(C) ]

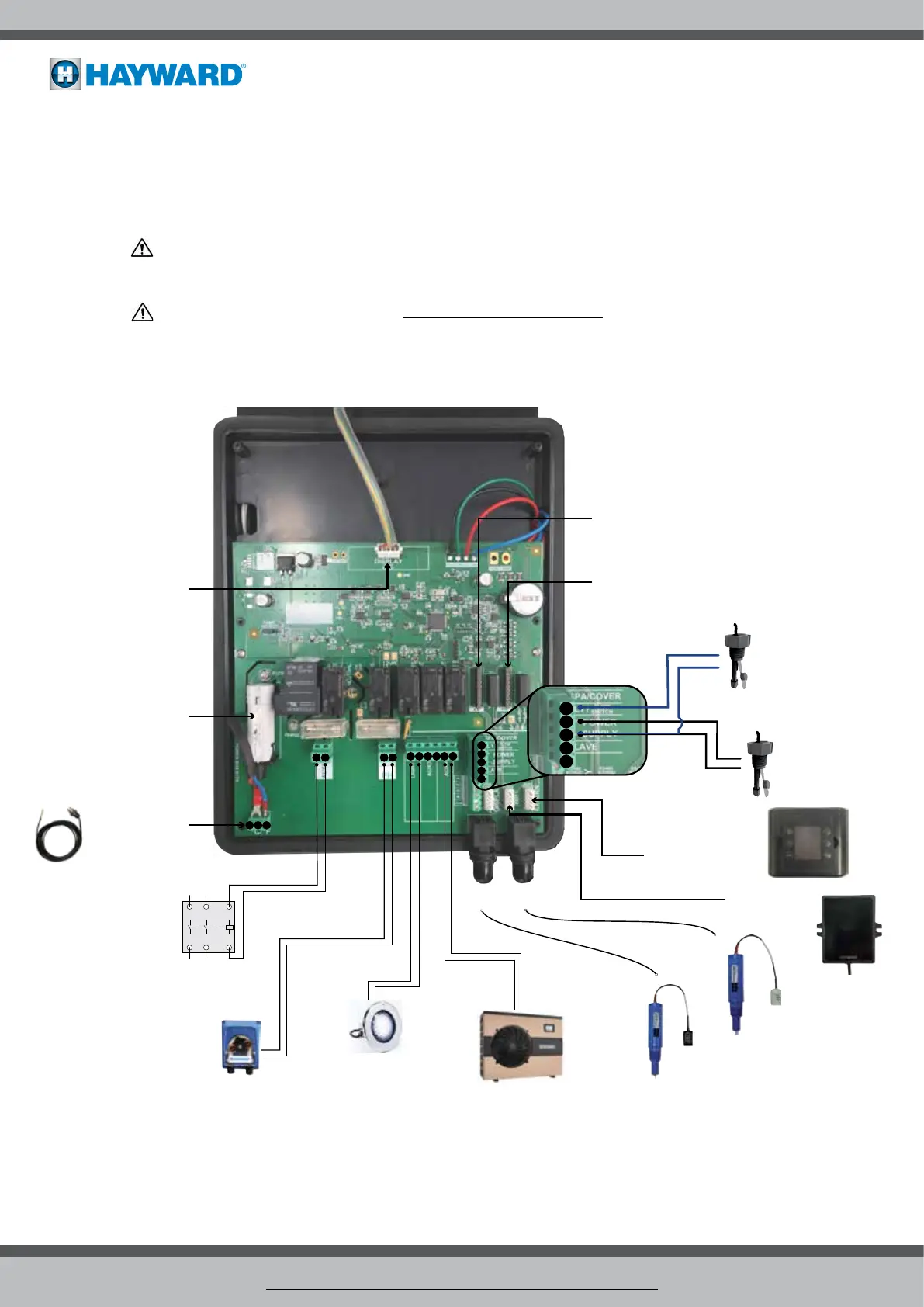

Wiring Schematic
(With Optional Upgrade Kits)
CAUTION - Hayward recommends that a Lightning Surge Protector Device (SPD) is installed on the
________
_feed circuit to the AQR+ by a qualified electrical contractor in accordance with AS/NZS
________
_3000 Australian Wiring Rules latest edition.
CAUTION - This circuit must be protected by a residual current device (RCD) with a fixed residual
________
_operating current not exceeding 30 mA.

Hayward AquaRite + Specifications

General

Type	Salt Chlorine Generator
Salt Level	2700-3400 ppm
Warranty	3 years
Voltage	120/240V
Pool Size	Up to 40, 000 gallons
Display	Digital
