Description of Outgoing Relays
Name Description Terminals Type of output Max Load
Filter Pump Filtration pump control Socket Outlet 240 V a.c. 7 A
Aux 1 Auxiliary voltage output (for contactor switching control) 1 - 2 240 V a.c. 1 A
pH Peristaltic acid pump 3 - 4 SELV 24 V a.c. 1 A
Light Lighting control (One {1} LED light only) 5 - 6 SELV 12 V a.c. 50 W
Aux 3 Auxiliary dry contact 7 - 8 Dry contact 1 A
Aux 4 Auxiliary dry contact (or heating control). 9 - 10 Dry contact 1 A
If no heating system is installed on Aux 4, it can be used as another auxiliary contact. To do this, contact Hayward technical support.
Description of Inputs

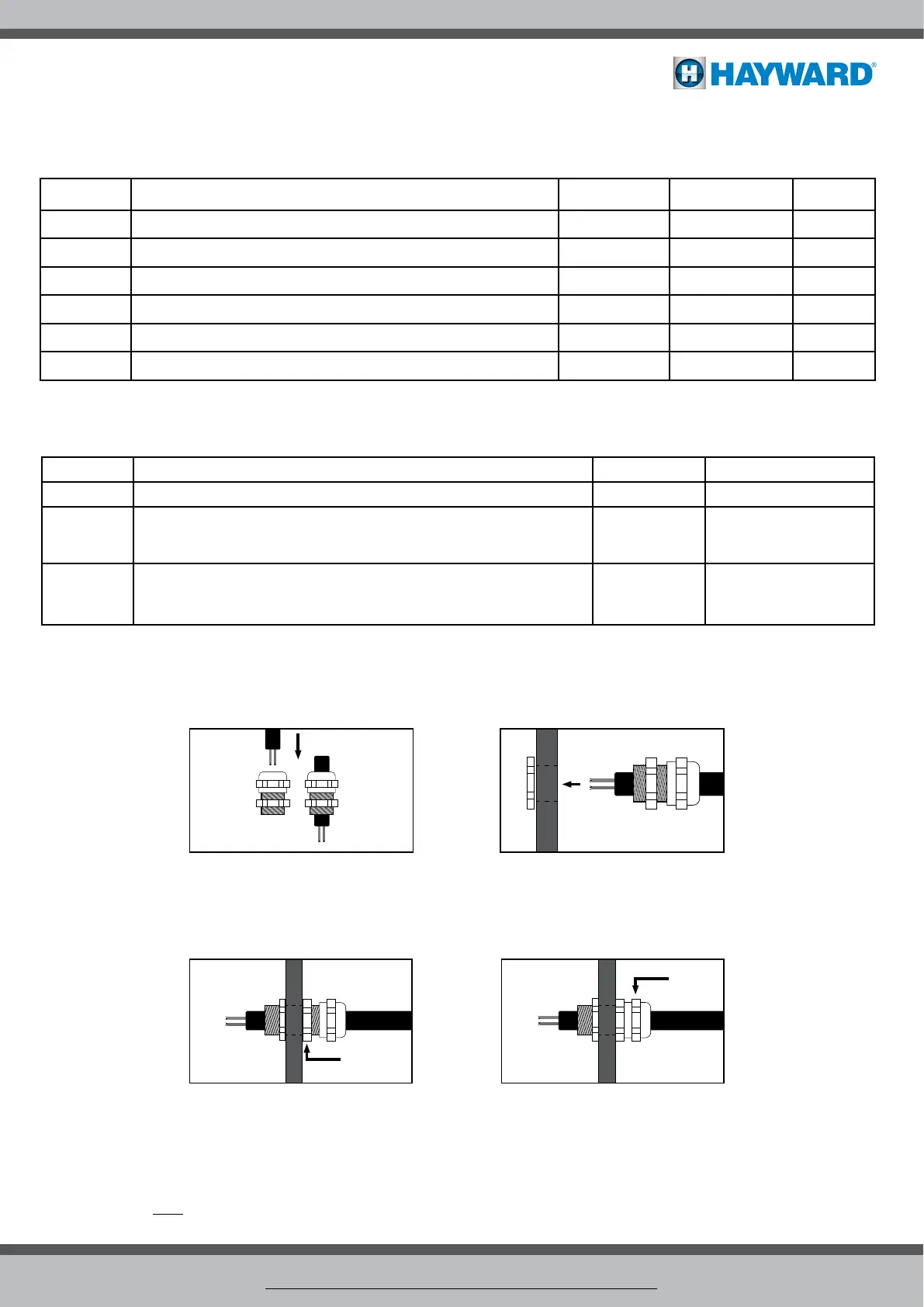

Cable Gland Installaon
In order to ensure watertight wire connections to the PCB through the AquaRite+ enclosure, wire cables are to be secured with the black
cable glands supplied. The two (2) cable glands supplied with the chlorinator are for the Cell Flow Switch and any Light connections.
3.
Tighten gland with a spanner whilst still
holding the nut to secure the gland in place.
4.
Pull the cord through the gland until the
intended input point can be reached.
Secure and seal the cord in place by
fastening the domed cap with a spanner
until firm.
1.
Insert the cable into the domed end of the
gland and pull through.
2.
Hold the nut against the hole on the inside
of the mounting frame. Push the cable and
gland into the hole whilst simultaneously
rotating to screw the nut on to the thread.
Cable
Nut
Mounting
Frame
Gland
Tighten
Tighten
Note: Use the gland location holes in the bottom of the unit before the sides to ensure all cables are pointing downward.
Name Description Terminals Type of output
FL1 T-Cell Flow detection switch B - C SELV 12 V
Spa/Cover Spa flow detection
(Optional accessory - available with the Hayward Spa Flow Switch Upgrade
Kit)
A - C SELV 12 V
o
C/
o
F Temperature probe
(Optional accessory - available with the Hayward Temperature Probe
Upgrade Kit)
F - G - H -
