18

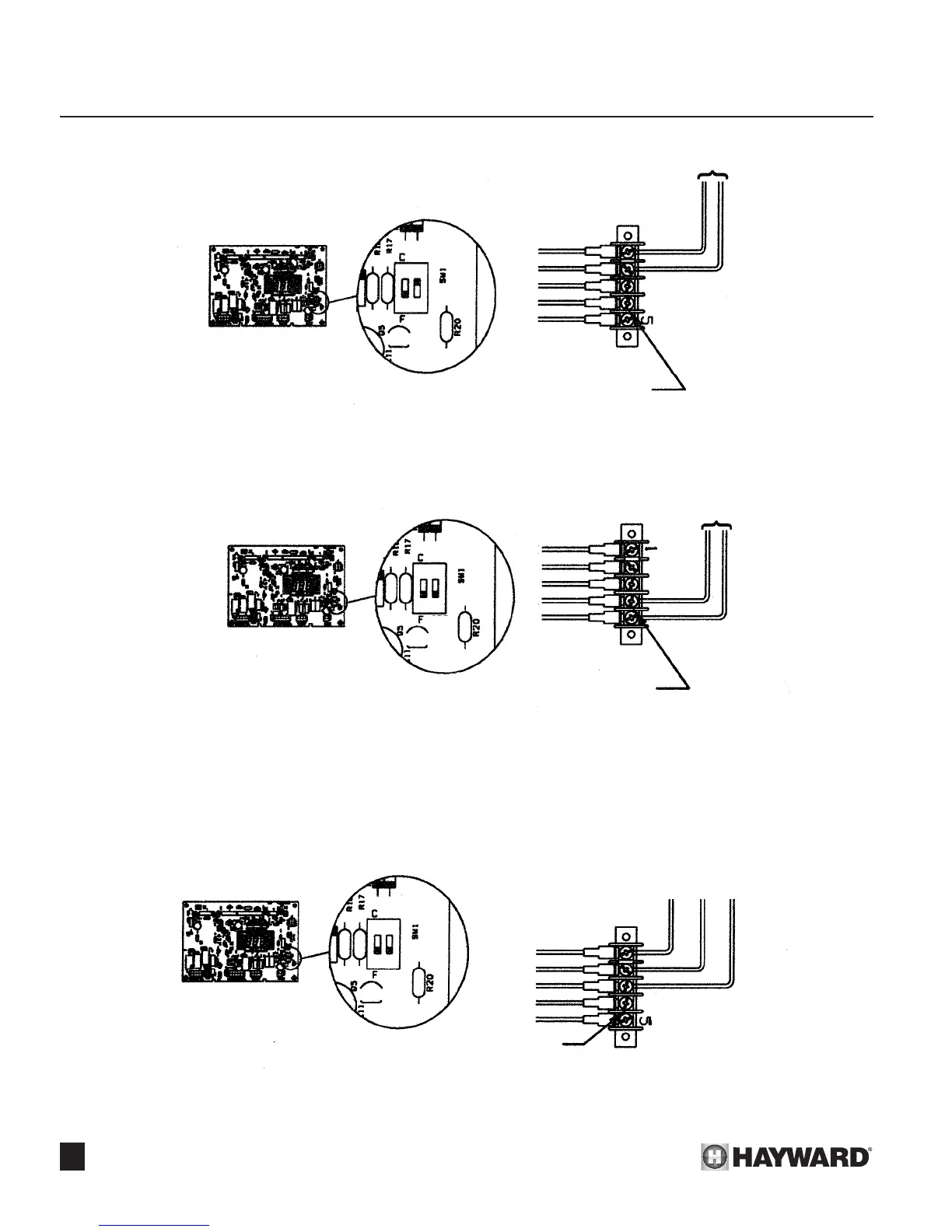

SECTION 3. INSTALLATION
Connection to 2-wire Remote Thermostat
Connection to 2-wire Remote On/Off Switch
Connection to 3-wire Remote
To Remote
To Remote
To remote spa/high
To remote common
To remote pool/low
PK
PK
PK
BK
BK
BK
W
W
W
R
R
R
P
R
R
Bypass Switch (On)
Bypass Switch (Off)
Bypass Switch (Off)
Jumper Clip
Do not remove
Jumper Clip
Do not remove
Jumper Clip
Remove
BYPASS
BYPASS
BYPASS
ON
ON
ON
OFF
OFF
OFF
