Heathkit AA-1214 User Manual

22
~
HEATHKIT
=A M®·W-MJ

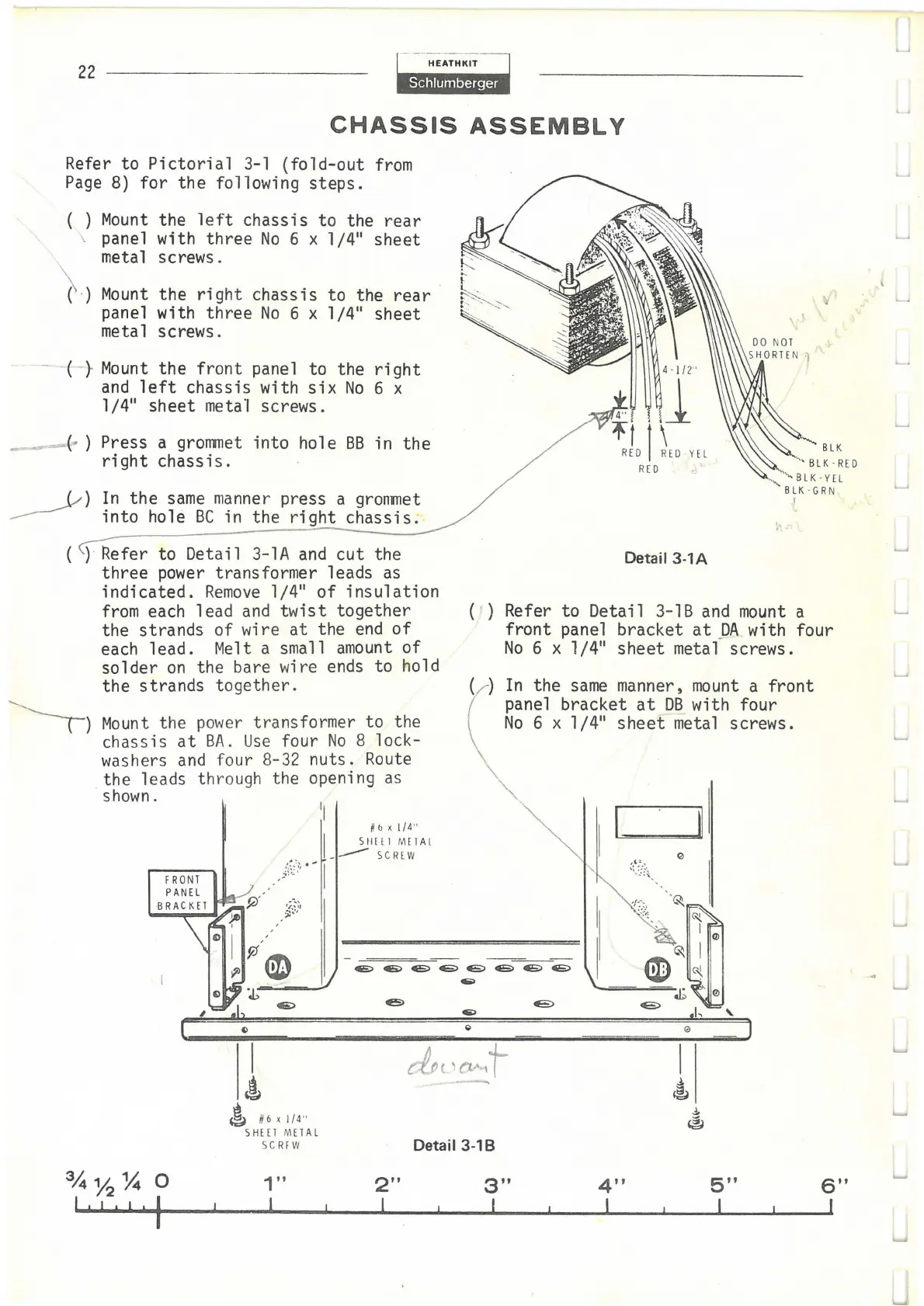

CHASSIS ASSEMBLY
Refer to Pictorial 3-1 (fold-out from
Page 8) for the following steps.
( ) Mount the left chassis to the rear
\ panel with three No 6 x l /4
11
sheet
metal screws.
( ·) Mount the right chassis to the rear
panel with three No 6 x 1/4
11
sheet
metal screws.
- -(-} Mount the front panel to the right
and left chassis with six No 6 x
1 /4
11
sheet meta ·1 screws.
-- ~ ) Press a grommet into hole BB in the
right chassis.
In the same manner press a gronrnet
into hole BC in the right chassis.
( ) Refer to Detail 3-lA and cut the
three power transformer leads as
indicated. Remove 1/4
11
of insulation
from each lead and twist together
the strands of wire at the end of
each lead. Melt a small amount of
solder on the bare wire ends to hold
the strands together.
Mount the power transformer to the
chassis at BA . Use four No 8 lock-
washers and four 8-32 nuts. Route
. the leads thro ugh the opening as
shown .
# t, x I / 4 "'
I
Still I ME !Al
•. • ---- SC R[W
.. . .. ,·,. -I
., ~ ·- ,
,-
Detail 3-1A
BL K
' ''B LK - RED
.,, _' '' " BLK-YEL
BLK - GRN
( ) Refer to Detail 3-lB and mount a
front panel bracket at .PA with four
No 6 x 1/4
11
sheet metal screws.
In the same manner, mount a front
panel bracket at DB with four
No 6 x 1/4
11
sheet metal screws.
-- --
E;>Ei)45)E)E)E)E:>E>
-
- -
E)
e> E:)
E:)
5)
'
~
"
0
)
I
dt( ,ev, t
!
J.
~
~
# 6 x I/ 4 "'
J.
®
SHEEl METAL
SC RF W
Detail 3-1B
¾½¼O
1 "
2"
3"
4"
5"
6"
I I ' I ' I I
I
I
I I
I I
L-1
