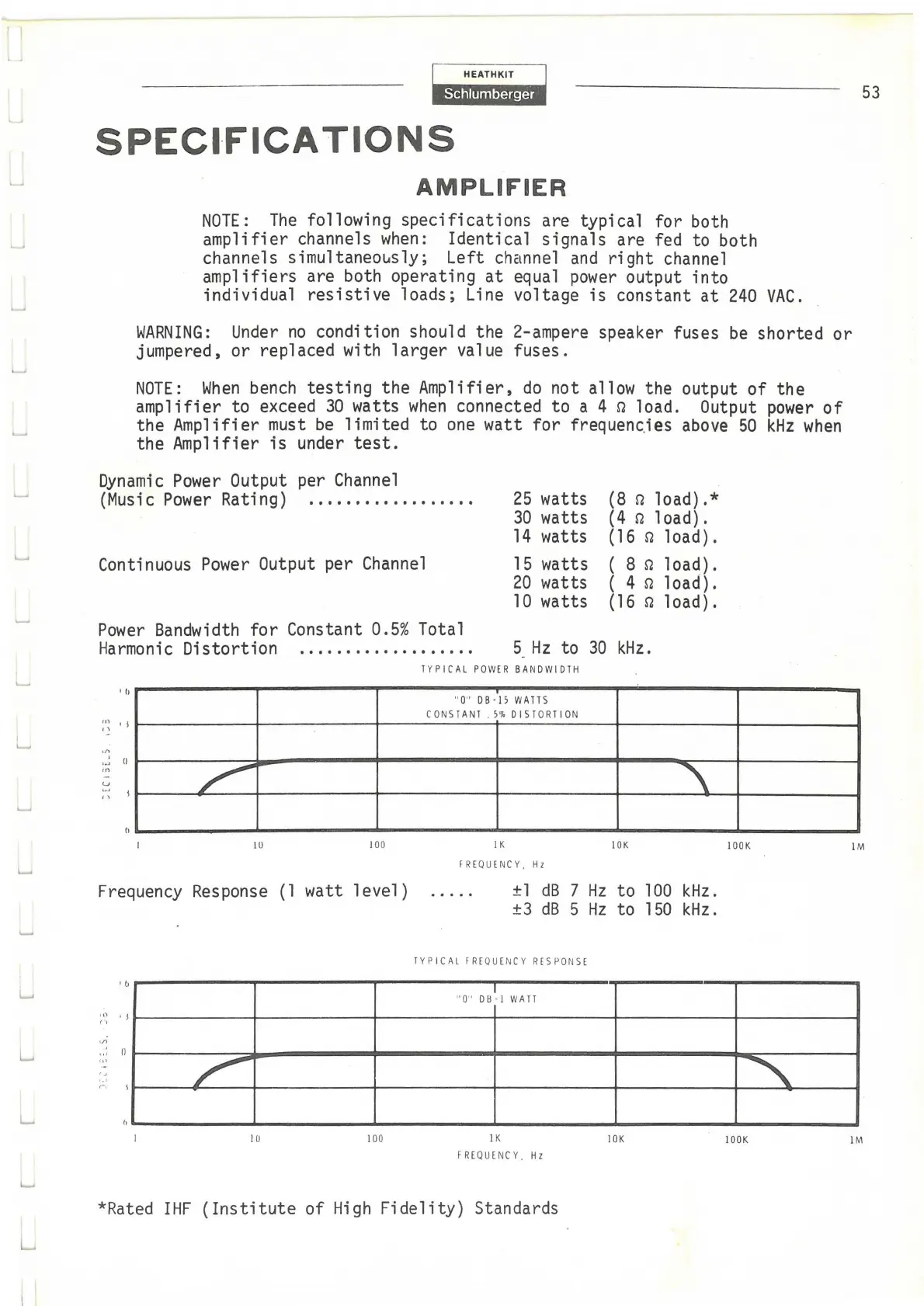

SPECIFICATIONS
AMPLIFIER
NOTE: The following specifications are typical for both
amplifier channels when: Identical signals are fed to both
channels simultaneo~sly; Left channel and right channel
amplifiers are both operating at equal power output into
individual resistive loads; Line voltage is constant at 240 VAC .
WARNING: Under no condition should the 2-ampere speaker fuses be shorted or
jumpered, or replaced with larger value fuses.
NOTE: When bench testing the Amplifier, do not allow the output of the
amplifier to exceed 30 watts when connected to a 4 n load. Output power of
the Amplifier must be limited to one watt for frequen~ies above 50 kHz when
the Amplifier is under test.
Dynamic Power Output per Channel
(Music Power Rating) ................. .
Continuous Power Output per Channel
Power Bandwidth for Constant 0.5% Total
25 watts
30 watts
14 watts
15 watts
20 watts
10 watts
{8nload).*
( 4 n 1 oad).
( 16 n 1 oad) .
( 8 n 1 oad).
( 4 n load).
( 16 n load).
Harmonic Distortion .................. . 5 Hz to 30 kHz.
, 1,
II) IS
,,
~
I 0
I 00
Frequency Response (1 watt level)
r
TY PICAL POWER BANDW I DTH
" O" DB· l 5 WATTS
CON STANT . 5% DI ST ORTION
I K
FR E QU E NCY , Hz
:\
I OK
±1 dB 7 Hz to 100 kHz.
±3 dB 5 Hz to 150 kHz.
TYP I CAL FREQU ENCY RESPONSE
I
" O" DB • JWAT T
I OOK
'
53
IM
I U
100
I K
FR E QUENCY . Hz
!OK
IOOK
IM
* Ra t ed IHF (Institute of High Fidel it y) Stan da r ds
