4.2 Device components
The double drive AxisDrive is an electro-motor-powered unit.
Using suitable fittings for motorized adjustment, the head and/or
foot section of boxspring beds (Fig. 5) or slatted bed frames
(Fig. 6) can be adjusted. The drive is controlled via handset cable
or transmitter (see 2.3 scope of delivery)

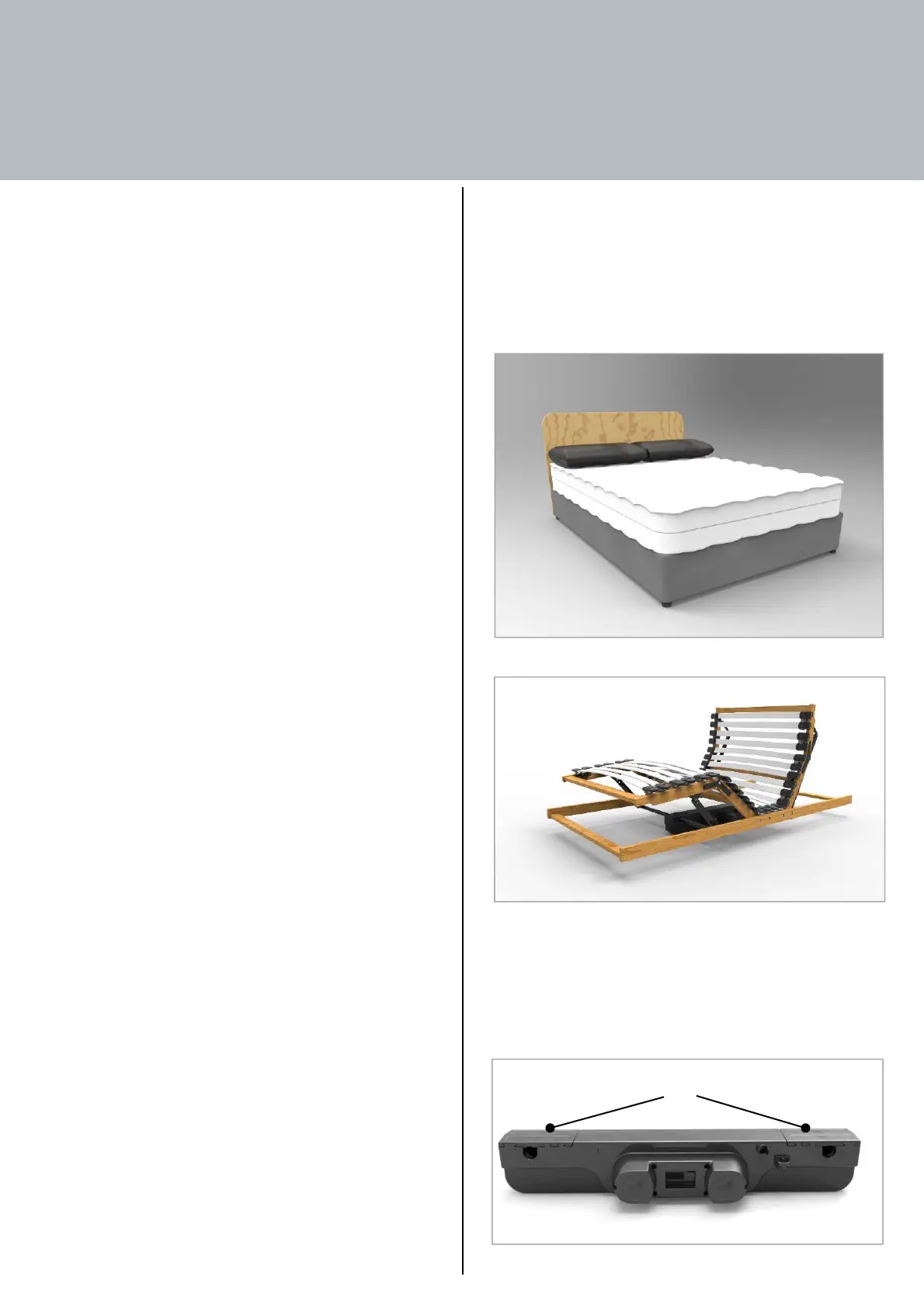

Fig. 5: Boxspring bed
Fig. 6: Slatted bed frame
The compact build has two linear adjustment units, as well as the
control and the mains unit, placed in an enclosed housing.
For tool-free installation, the two sliding covers must be
disconnected from the housing (Fig. 7).
Fig. 7: Sliding cover
12
4. Description of the Product
4.1 Technical data
Designation: Double drive for adjustment of
comfort beds for use at home
Type: AxisDrive
Year of build: 2016
Site of setup: dry, closed rooms
Mains connection: 100 - 240 V ; 50/60 Hz
Power consumption: 1.6 A
Output: depending on load, 30-300 W
Standby power: ≤ 0.5 W
Stroke: e.g. 87 / 69 mm (head/foot section)
Pressure force: e.g. 2x 6500 N
Adjustment speed: max. 5,8 mm/s*
Adjustment noise in dB(A): ≤ 50 dB*
Dimensions
(length x width x height): 707 x 147 x 120 mm
Weight: 3.9 kg
Operating options: by handset cable or transmitter
Frequency range at
radio version: 2.4 GHz
Batteries for
transmitter: 2 AAA 1.5V
Batteries for
emergency lowering: 1 or 2 9V block batteries
type: 6LR61
Intermittent operation: max. 2 min. operation, then
18 min. out of operation
Ambient temperature
in operation: 10 °C to 40 °C
Storage-/
transport temperature: - 25 °C to 70 °C
Humidity
in operation
(non-condensing): 5 % to 85 %
Protection type: IP 20
* Idle, without load
