7. Operation
7.1.1 Commissioning AxisDrive IPS
1. Plug handset cable into the socket (Fig. 18)
2. Secure cable against accidental disconnection by
means of the stress relief (Fig. 18). Also see 5.2.2
Installing the stress relief.
3. Connect mains plug into mains outlet.
4. Your motor-adjustable bed is now ready for use.
7.1.2 Commissioning the AxisDrive IPS RF with transmitter
Option 1:
1. Put the batteries into the battery compartment of the
transmitter
Ensure proper polarity.
2. Activate learn mode:
Connect mains plug into mains outlet.
The drive is now in "learn mode" for approx. 30 seconds.
3. Encoding
Push the button for lowering the head and foot section on
the transmitter during the learn mode (fig. 17 key )
Successful encoding is confirmed by an acoustic signal.
4. Your motor-adjustable bed is now ready for use.
Option 2:
1. Check that the batteries are inserted in the battery
compartment of the transmitter and that the mains plug
is connected to the mains outlet
2. Encoding
Push and hold the button for lowering the head and foot
section on the transmitter (fig. 17 key ) and push the
coding button on the AxisDrive (fig. 19) at the same time.
Successful encoding is confirmed by an acoustic signal.
3. Your motor-adjustable bed is now ready for use.
The two 9V block batteries for emergency
lowering must not be connected during encoding.

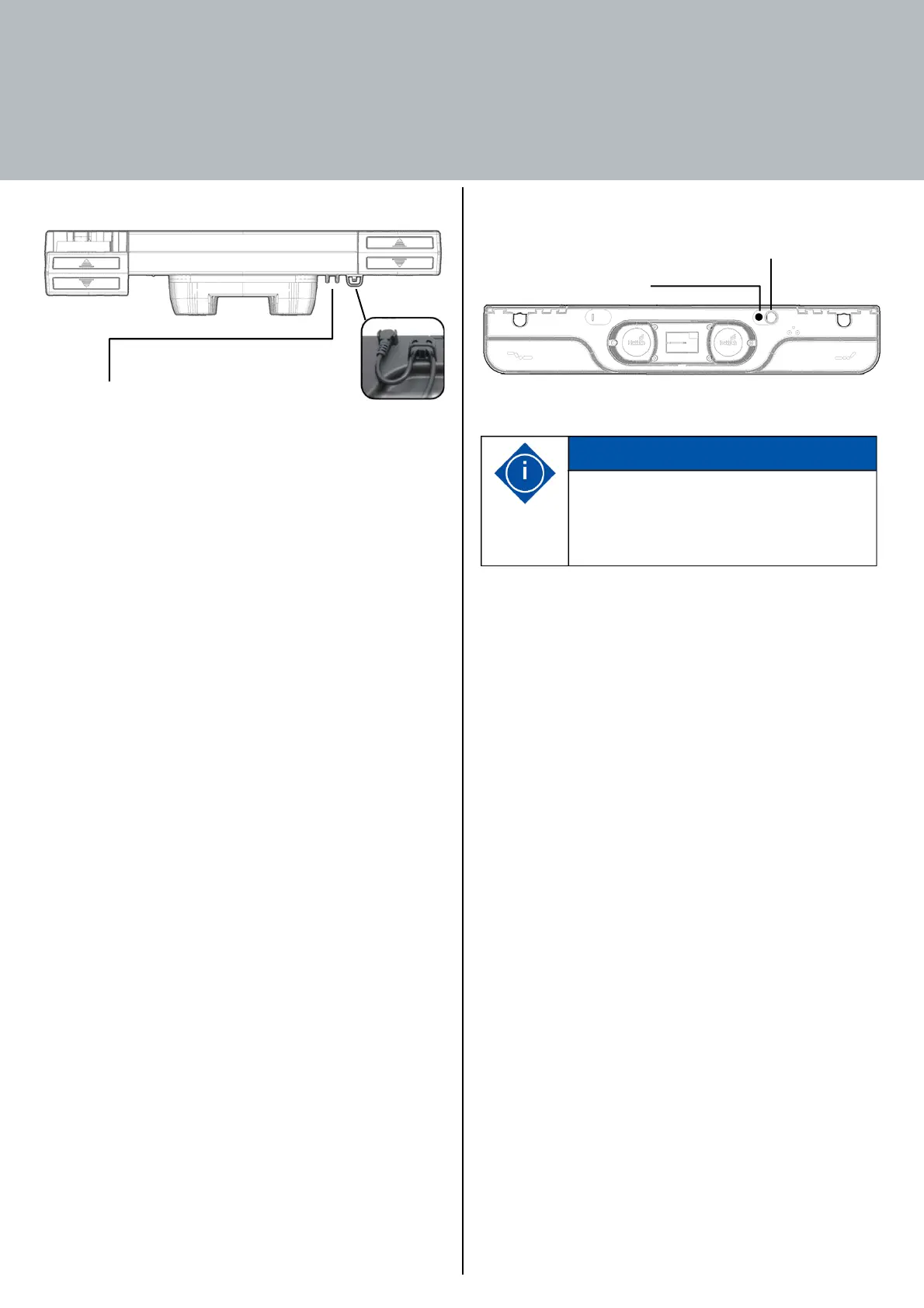

Stress relief
Entry for cable of handset
Fig. 18: Commissioning AxisDrive IPS
Coding button
(Optional) Entry for cable of handset
Fig. 19 Commissioning AxisDrive IPS RF
Note
