5. Transport and Mounting
5.2.1 Installing the double drive and handset cable/transmitter
1. Move the slatted bed frame into the basic position.
2. Disassemble the two sliding covers.
. The holders 
for the fittings are now cleared.
3. Put the double drive into the right position. The holders
for the head and foot section must be assigned to the
respective fittings at the slatted bed frame. For this,
compare the symbols at the double drive.
4. For simpler installation, place the slatted bed frame on
its back so that the fittings for motorized adjustment
point up. Now push the double drive firmly over the
motor hooks until the tubes latch in the provided
U-shaped cut-out.
5. Push the sliding covers  back onto the drive until they
latch. The double drive is firmly connected to the slatted
bed frame.
6. Perform commissioning.
5.2.2 Installing the Stress relief
Fig. 15: Stress relief
1. Push the cable of the handset through the stress relief in
a loop.
2. Pull the loop back slightly as shown in Fig. 15.
Warning of crushing danger!
Mount the double drive in an unloaded position.
Only this way can it be prevented that hands are
crushed or otherwise injured.



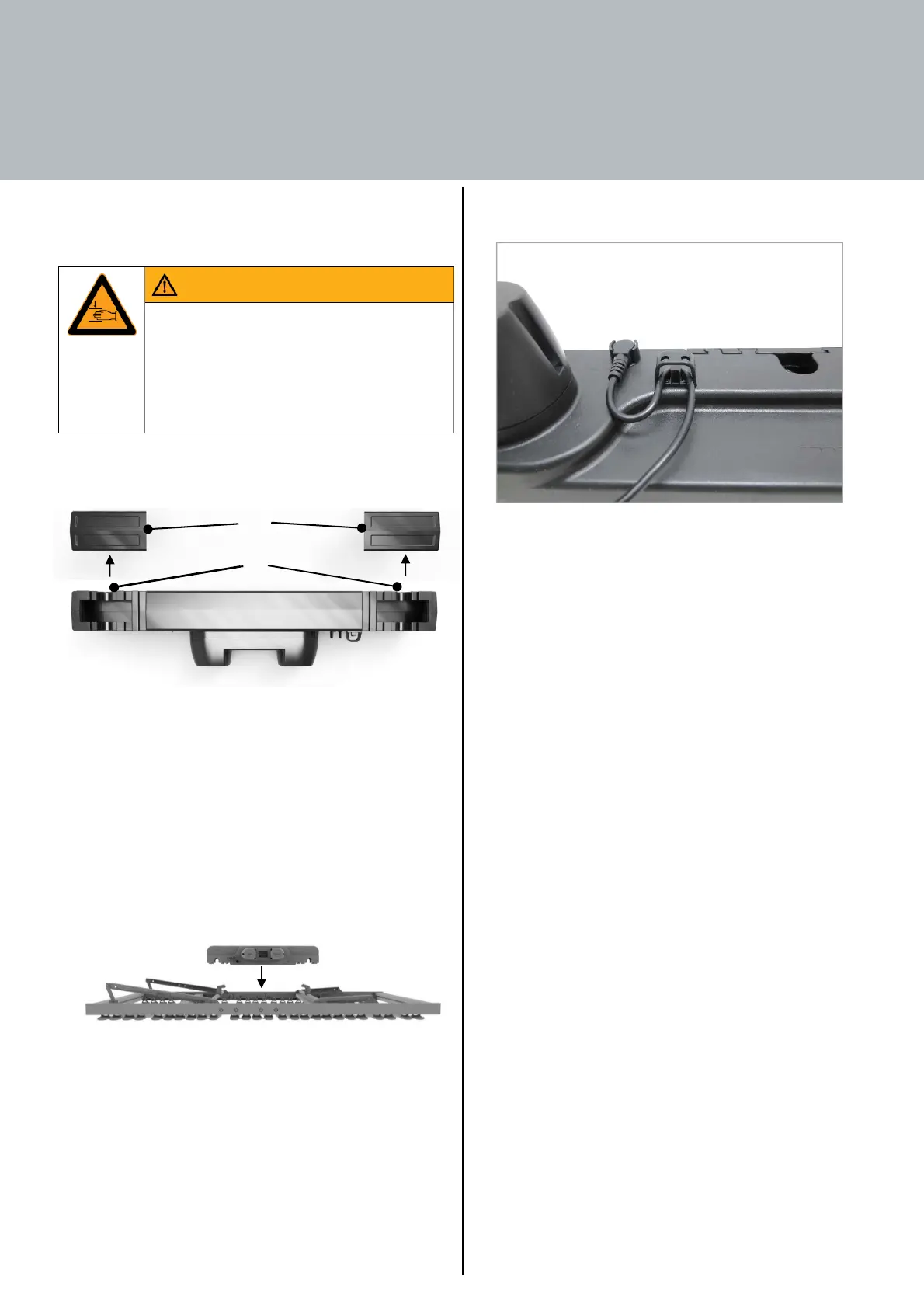

Fig. 13: Disassembly of the sliding covers
Fig. 14: Mounting at the slatted bed frame
