UM ColorVu DS-2CExxDFT-Fxx 122919NA 10

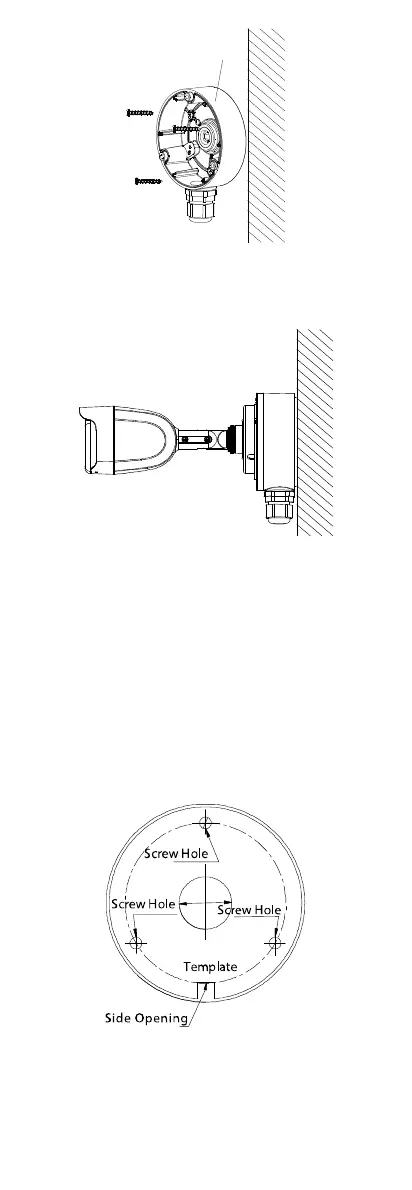

Figure 7, Affix Junction Box to Wall/Ceiling
7. Route the cables through the bottom cable hole or
the side cable hole of the junction box.
Figure 8, Reattach Cover to Junction Box
8. Connect the junction box cover to its body.
9. Repeat steps 5 and 6 of
2.1.1 Ceiling/Wall Mounting
without Junction Box
to complete the installation.
2.2 Installation of Type II Bullet Camera
2.2.1 Ceiling/Wall Mounting without Junction Box
1. Paste the drill template (supplied) where you want to
install the camera.
2. Drill the screw holes according to the drill template
and the cable hole (optional) on the ceiling.
Figure 9, Drill Template
NOTE:
Drill the cable hole in center of drill template
when using ceiling outlet to route the cable.
3. Route the cables through the cable hole (optional) or
the side opening.
