HIKVISION ColorVU DS-2CE Series User Manual

UM ColorVu DS-2CExxDFT-Fxx 122919NA 9
1) Loosen the P screw to adjust the pan position [0°
to 360°]. Tighten the screw after completing the
adjustment.
2) Loosen the T screw to adjust the tilt position [0°
to 180°]. Tighten the screw after completing the
adjustment.
3) Loosen the R screw and rotate the camera [0° to
360°]. Tighten the screw after completing the
adjustment.
2.1.2 Ceiling/Wall Mounting with Junction Box
Before You Start
You need to purchase a junction box separately.
1. Paste the drill template on the ceiling/wall.

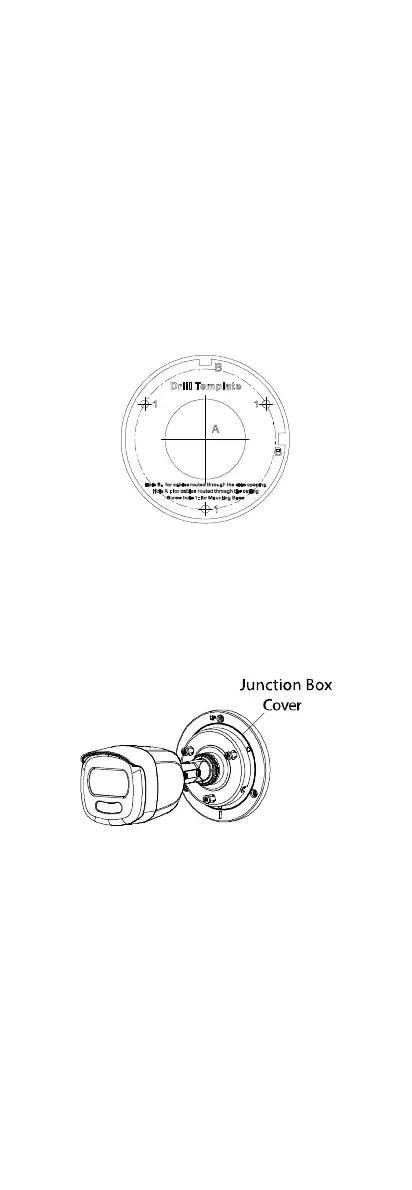

Figure 5, Junction Box Drill Template
2. Drill screw holes and the cable hole in the
ceiling/wall according to the drill template holes.
3. Take apart the junction box, and align the bullet
camera screw holes with those on the junction box
cover.
Figure 6, Attach Camera to Junction Box Cover
4. Attach the camera on the junction box’s cover with
supplied screws.
5. Attach the junction box body to the ceiling/wall by
aligning the screw holes of the junction box.
6. Secure the junction box’s body with supplied screws
on the ceiling/wall.
