UM ColorVu DS-2CExxDFT-Fxx 122919NA 7
1.3 Overview of Type I Turret Camera

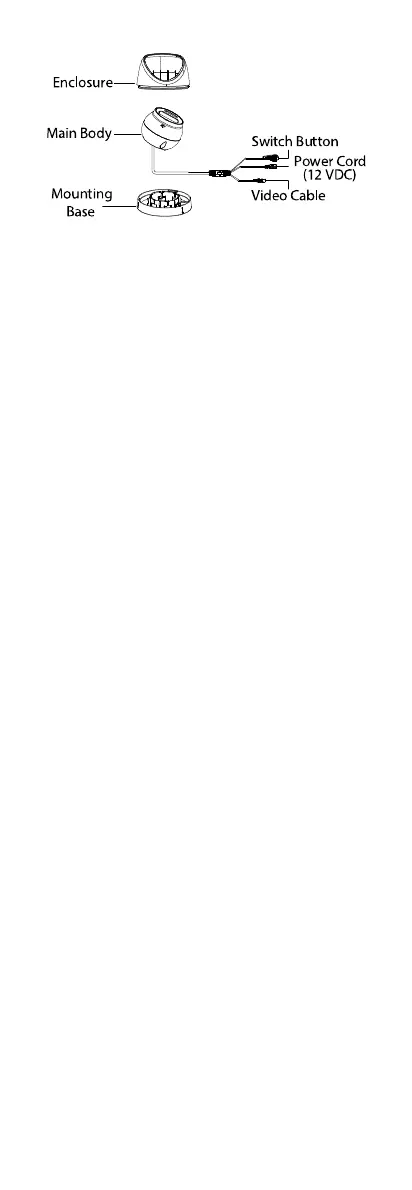

Figure 3, Type I Turret Camera Overview
NOTE:
Press and hold the switch button for five
seconds to switch the video output. Four
kinds of video outputs are available: TVI, AHD,
CVI, and CVBS.
3 Installation
Before You Start
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is powered off
during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply matches your power
output to avoid damage.
Make sure the wall is strong enough to withstand three
times the weight of the camera and the mount.
If the wall is concrete, insert expansion bolts before
installing the camera. If the wall is wood, use self-
tapping screws to secure the camera.
If the product does not function properly, contact your
dealer or the nearest service center. Do NOT disassemble
the camera for repair or maintenance yourself.
2.1 Installation of Type I Bullet Camera
2.1.1 Ceiling/Wall Mounting without Junction Box
1. Paste the drill template (supplied) where you want to
install the camera.
2. Drill the screw holes and the cable hole (optional) in
the ceiling/wall according to the drill template.
To Next Page
