Figure 18, Secure Camera to Mounting Base
7. Connect the corresponding cables such as power
cord and video cable.
8. Power on the camera to check whether the image on
the monitor is at an optimum angle. If not, adjust the
camera according to the figure below to get an
optimum angle.

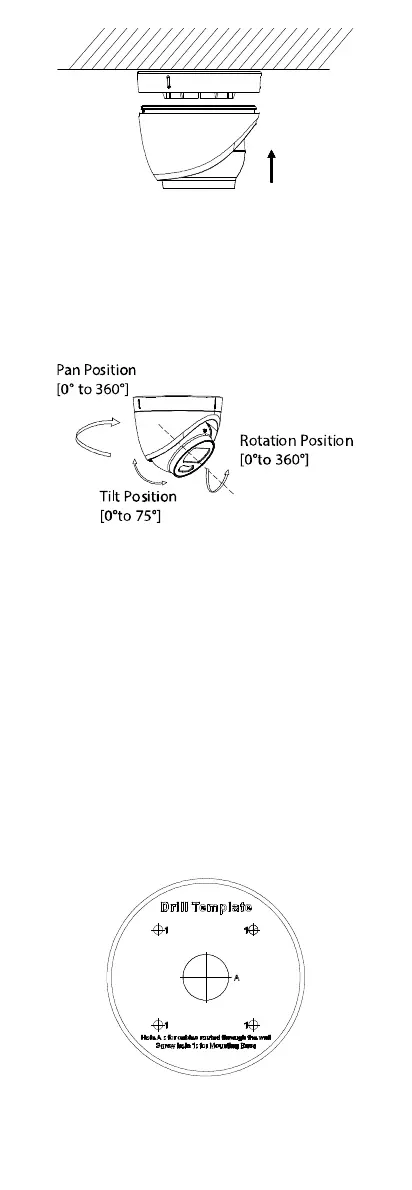

Figure 19, 3-Axis Adjustment
1) Hold the camera body and rotate the enclosure to
adjust the pan position [0° to 360°].
2) Move the camera body up and down to adjust the
tilt position [0° to 75°].
3) Rotate the camera body to adjust the rotation
position [0° to 360°].
2.3.2 Ceiling/Wall Mounting with Junction Box
Before You Start
You need to purchase a junction box separately.
1. Paste the drill template on the ceiling/wall.
2. Drill screw holes and cable hole (optional) in the
ceiling/wall according to the drill template holes.
Figure 20, Junction Box Drill Template
NOTE:
Drill the cable hole when using the ceiling
outlet to route the cable.
To Next Page
