HIKVISION DS-1006KI User Manual

DS-1200KI/1006KI Keyboard User Manual
25


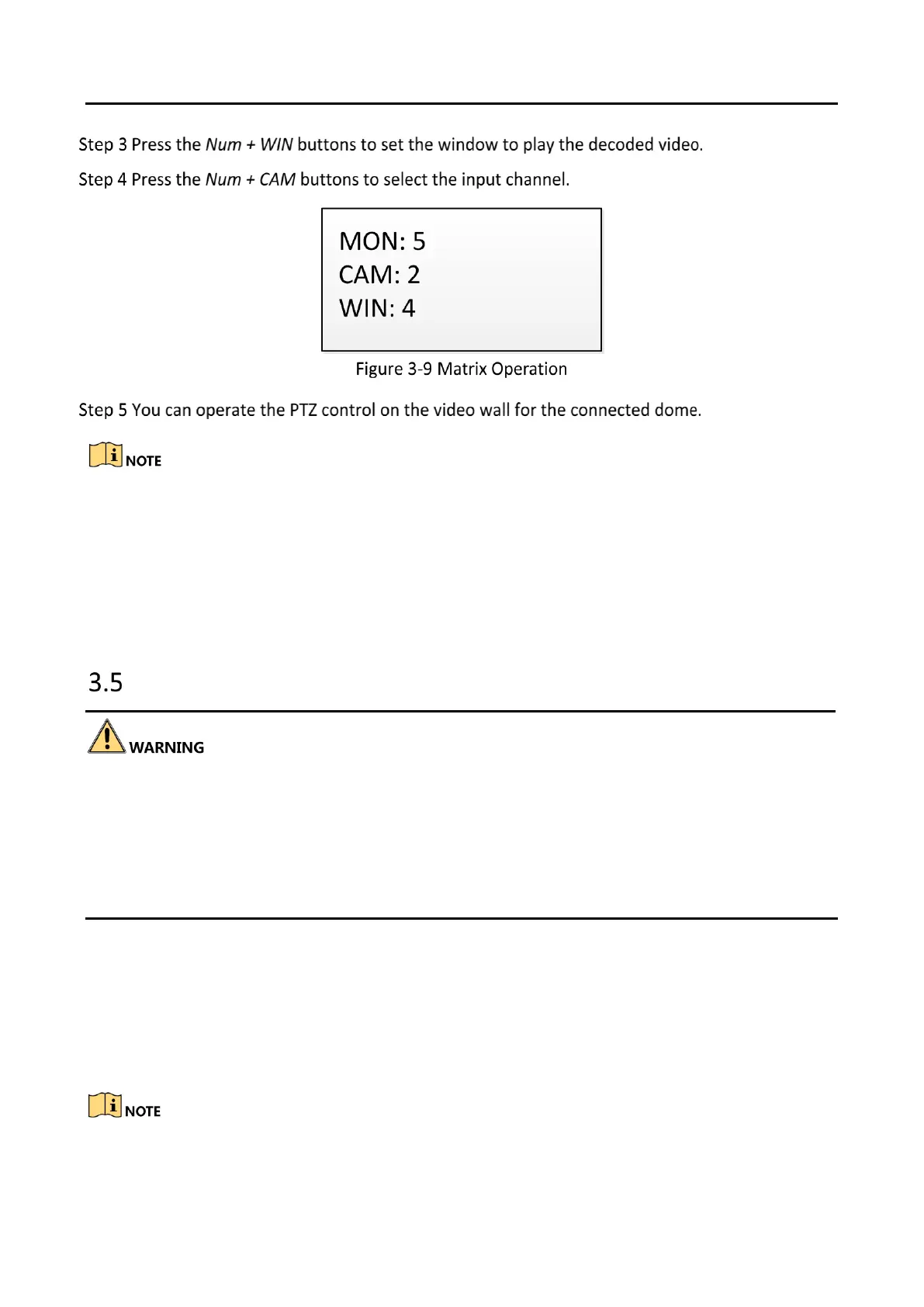

You can also press the Num + CAM buttons to select the input channel, and operate the PTZ
control.

For the initial use of MAG, you must use the configuration kits software to configure the
input/output channel ID of the MAG. Please see the related user manual for details. The
input/output channel ID is used for switching on the video wall or PTZ control during keyboard
operation.
DVR by RS-485
In DVR by RS-485 mode, the keyboard screen will display a prompt message asking you to confirm
your device version. If your NVR is of a 4.1.50 or later version, select Yes; otherwise, select No. If
your DVR is of a 3.5.35 or later version, select Yes; otherwise, select No. Please note that selecting
an incorrect device version may result in function unavailability.
If you encounter a camera control problem, try to change the device ID of your NVR or DVR to a
digit from 1 to 16.
The keyboard can connect with the DVR/NVR via RS-485 serial port, and remotely call the device
menu and realize PTZ control through the virtual panel.
Before you start:
Check the connection between the DVR/NVR and the keyboard. Connect the T+ ad T- terminals of
the RS-485 serial port of the keyboard with the KB port on the DVR/NVR rear panel respectively.
Our keyboard products support DVR/NVR with KB ports only.

HIKVISION DS-1006KI Specifications

General

Purpose	Universal
USB hub	Yes
Pointing device	No
Device interface	RS-232 + RS-422 + RS-485
Recommended usage	Office
Keyboard key switch	-
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	LCD
Product color	Black
Keyboard style	Curved
Operating voltage	12 V
Power source type	DC
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	193 mm
Width	435 mm
Height	110 mm
Keyboard weight	1000 g
Keyboard dimensions (WxDxH)	435 x 193 x 110 mm
