DS-1200KI/1006KI Keyboard User Manual
35

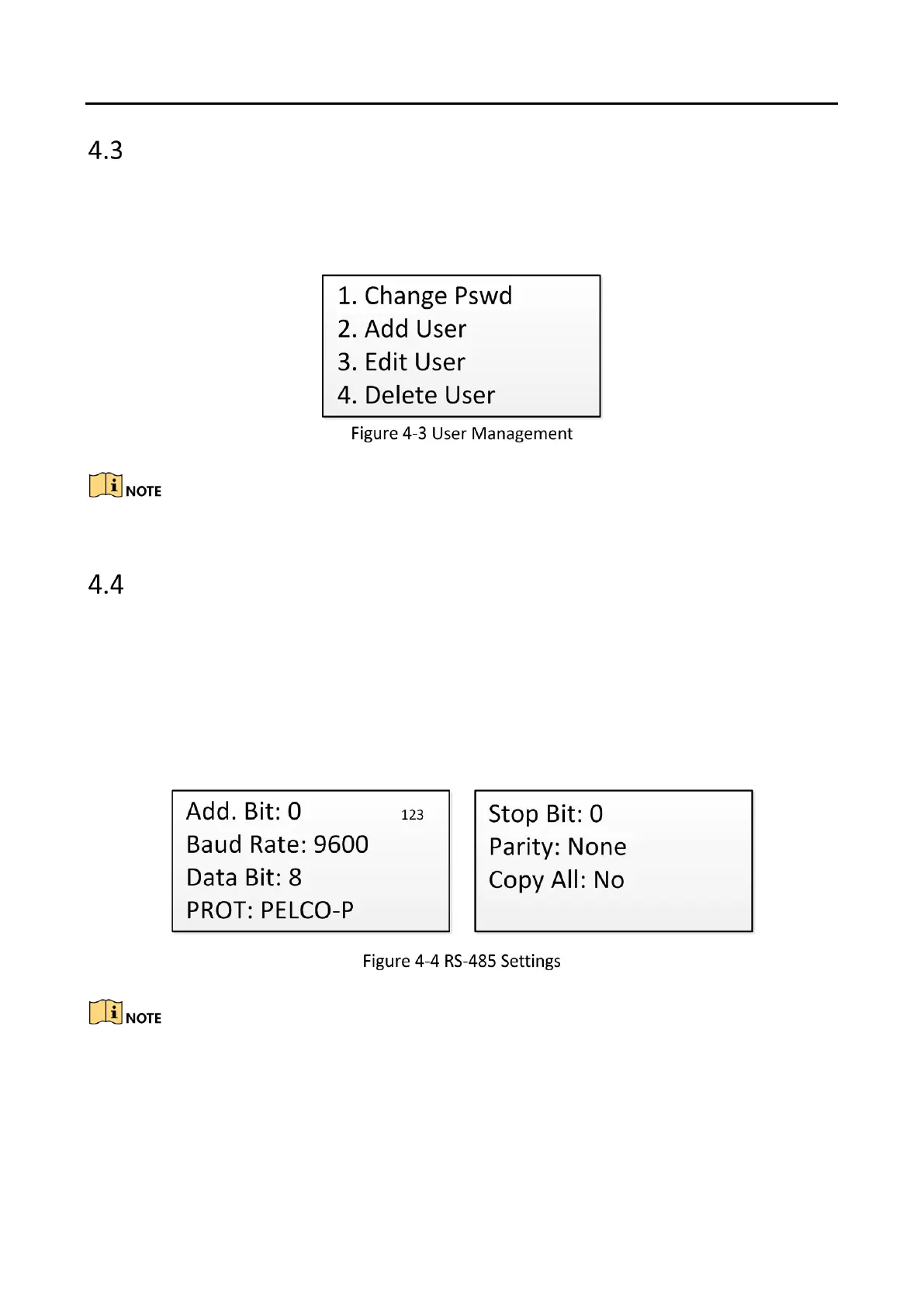

User Management
Select User to enter the user management interface. You can change the password (admin), add
new user, edit user or delete the user.
Click OK button or the central button of joystick to save the settings.
Only the admin user is allowed to add/edit/user the user (operator).
Serial Port Settings
You can connect analog dome or DVR with the keyboard via RS-484 serial port, MVC/MAG via RS-
422 serial port and analog matrix via RS-232 serial port.
Select Serial Port to enter the settings. You can configure the address bit (RS-485 only), baud rate,
data bit, protocol, stop bit, parity, and copy all settings. When you set the Copy All to Yes for RS-
485 serial port, the current settings will be copied to the connection of all other RS-485 devices.
Click the OK button or the central button of joystick to save the settings.
The RS-485/RS-422/RS-232 parameters configured here must be the same with the connected
dome/DVR or MAG.

HIKVISION DS-1006KI Specifications

General

Purpose	Universal
USB hub	Yes
Pointing device	No
Device interface	RS-232 + RS-422 + RS-485
Recommended usage	Office
Keyboard key switch	-
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	LCD
Product color	Black
Keyboard style	Curved
Operating voltage	12 V
Power source type	DC
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	193 mm
Width	435 mm
Height	110 mm
Keyboard weight	1000 g
Keyboard dimensions (WxDxH)	435 x 193 x 110 mm
