Installation Manual of Network Camera
101
Table 4-6 Description
No.
Description
No.
Description
1
Sun Shield
2
Bracket
3
Junction Box
4
Reset
5
SD Card Slot
6
Front Box
7
Analog Video Output
4.6.2 Installation
Steps:
1. Drill four screw holes in the wall according to the No.2 holes of the supplied drill template.
Cable Hole
1
1
1
1
2
2
2
2

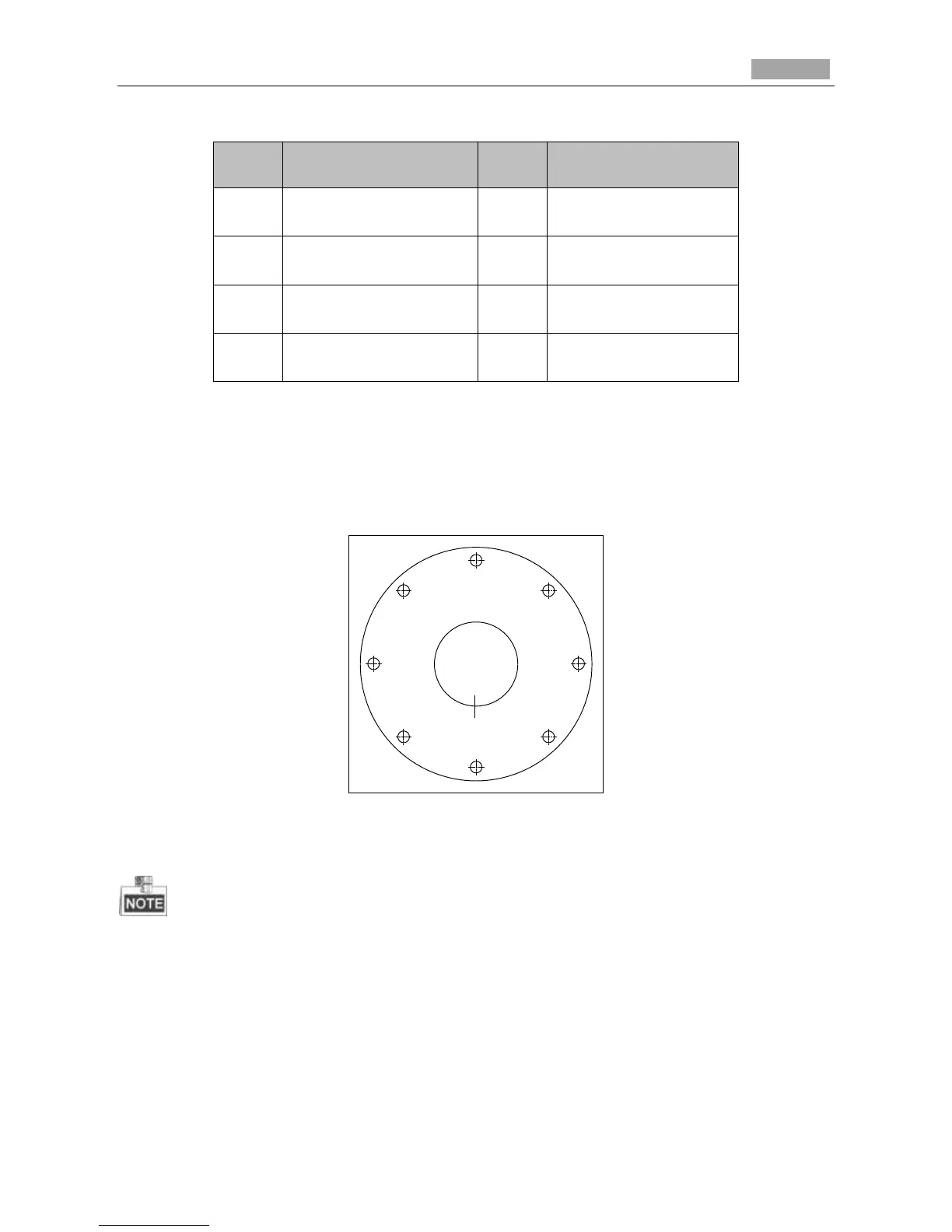

Figure 4-35 Drill Template
2. Drill one cable hole according to the sign shown on the drill template.
If you want to route the cables through the side of the junction box, you can skip this step.
3. Fix the junction box to the wall with the expansion screws.
