HIKVISION DS-2CD2432F-I Installation Manual

Installation Manual of Network Camera
11

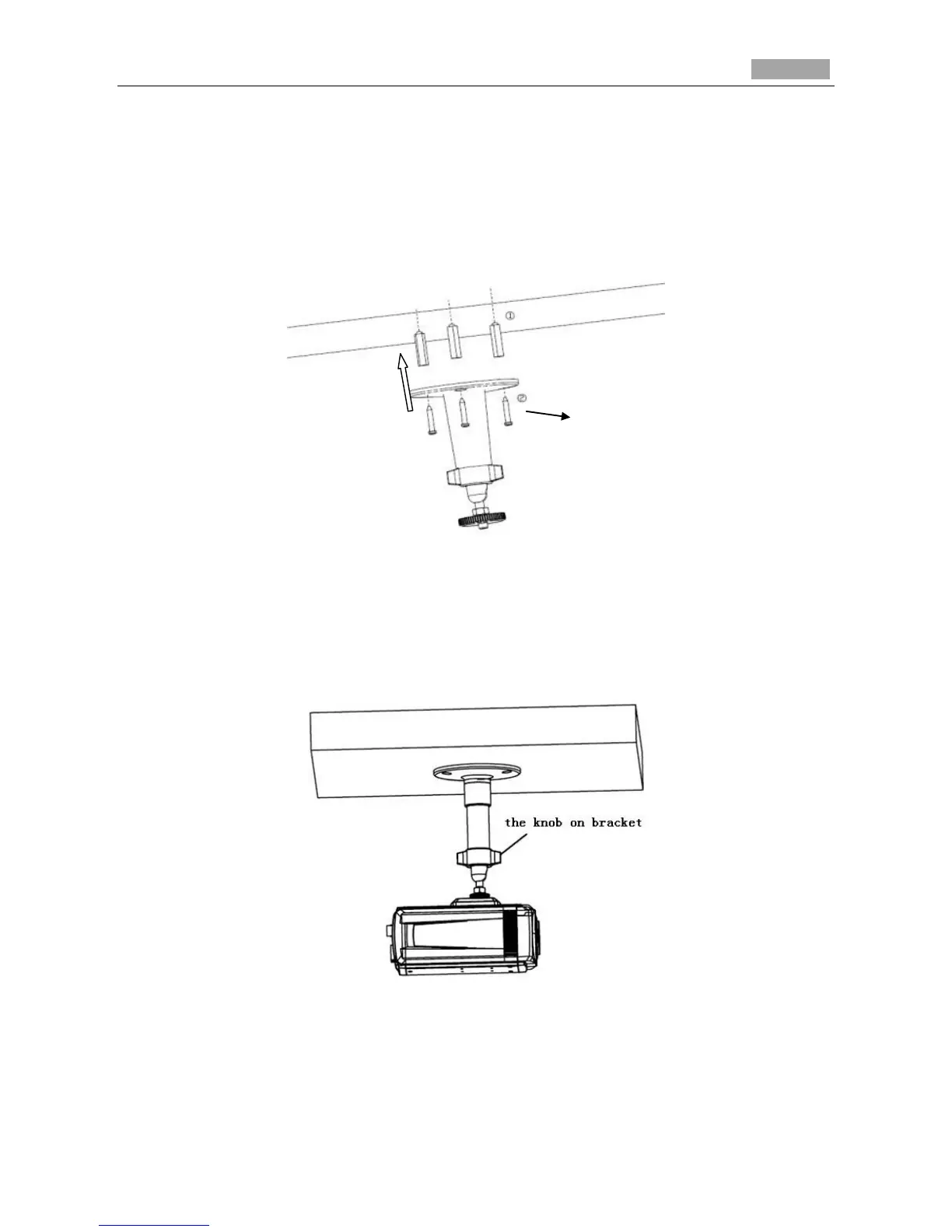

2.1.2 Installation
Steps:
1. Fix the mounting bracket to the ceiling.
Figure 2-3 Fix Camera Mounting Bracket
2. Aim the screw hole on the camera at the bracket and rotate the camera tightly.
3. Adjust the camera to the desired surveillance angle and tighten the knob on bracket to secure the
camera.
Figure 2-4 Fix the Camera
4. Install the lens.
1). Connect the VIDEO OUT interface of the camera to the debugging monitor.
Expansion Screw
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD2432F-I Specifications

General

Brand	HIKVISION
Model	DS-2CD2432F-I
Category	Security Camera
Language	English
