3.8.3 Camera Description of Type B Dome Camera
5
6
8
1
2
3
4
9
7

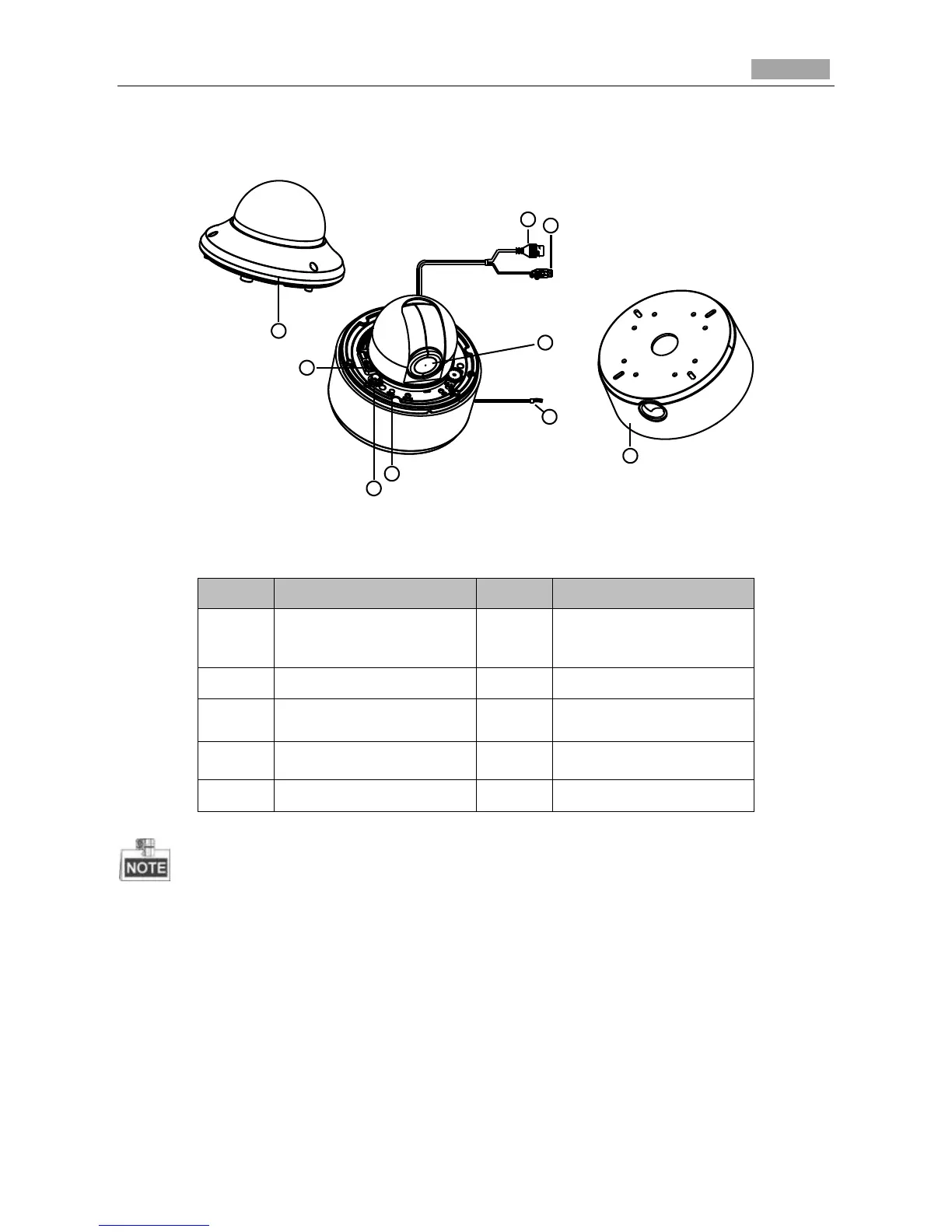

Figure 3-98 Overview of Type B Dome Camera
Table 3-10 Description of Type B Dome Camera
No.
Description
No.
Description
1
Bubble
6
10/100M Self-adaptive
Ethernet Interface
2
SD Card Slot
7
Lens
3
Video Out Interface
8
Audio/Alarm Cables
4
Reset
9
Mounting Base
5
Power Cable
10
● The most distinguish difference between type A and type B dome camera is type B dome camera
has an internal PT (Pan and Tilt) unit, and you can adjust the pan and tilt angle of the camera from
the client software or via web browser.
● Press RESET about 10s when the camera is powering on or rebooting to restore the default
settings, including the user name, password, IP address, port No., etc.
3.8.4 Installation of Type B Dome Camera
