Image and Focus Adjusting
Steps:
1. View the camera image using the monitor.
2. Rotate the panning table to adjust the panning position of the camera.
3. Rotate the tilting axes to adjust the tilting position of the camera.
4. Rotate the lens table to adjust the azimuth angle of the image.

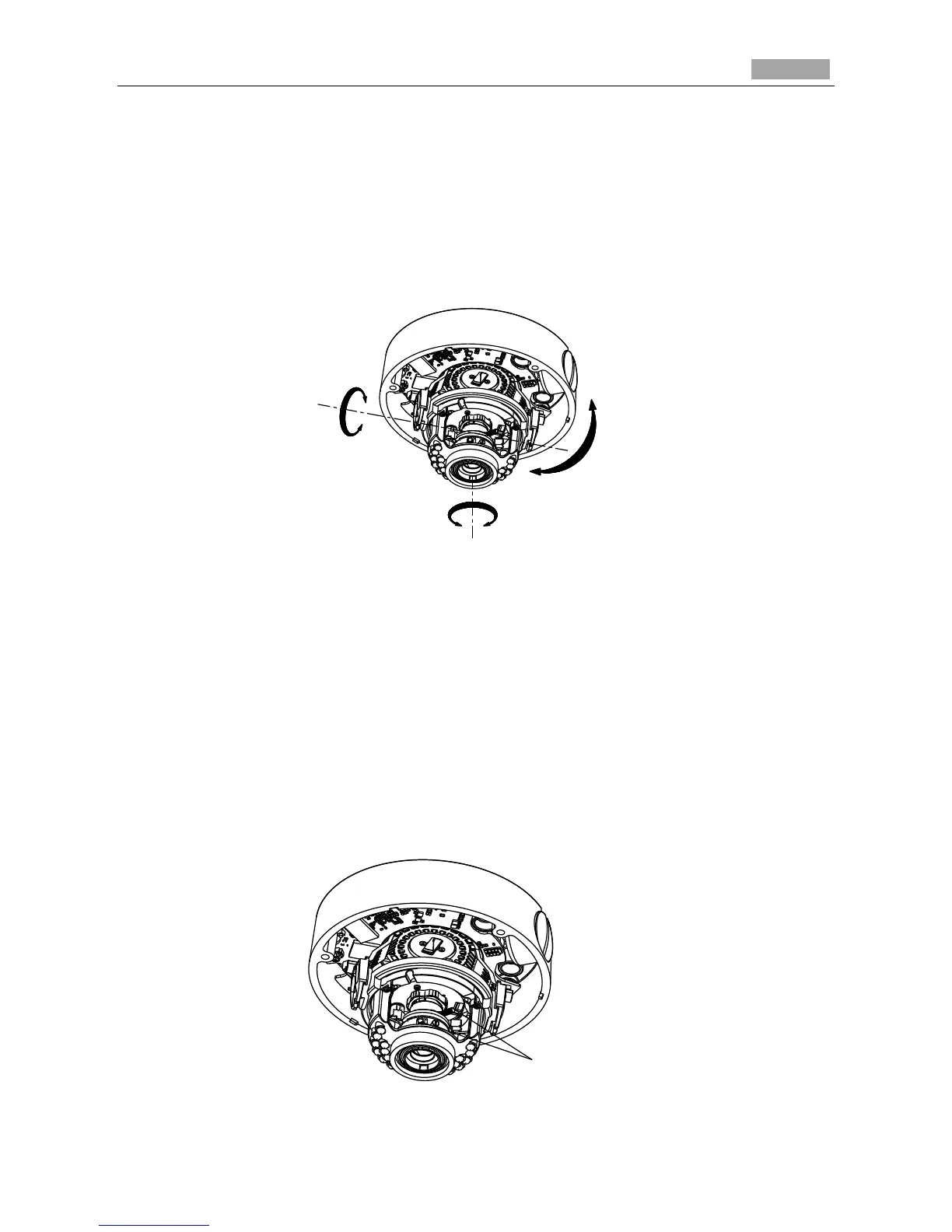

Figure 3-75 3-axis Adjustment
5. Zoom and focus adjustment.
1). View the camera image using the monitor.
2). Loosen the zoom lever and move the lever between T (Tele) and W (Wide) to obtain the
appropriate angle of view.
3). Tighten the zoom lever.
4). Loosen the focus lever and move the lever between F (Far) and N (Near) to obtain the optimum
focus.
5). Tighten the focus lever.
