User Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
You can specify the linkage method when an event occurs. The following
contents are about how to configure the different types of linkage method.

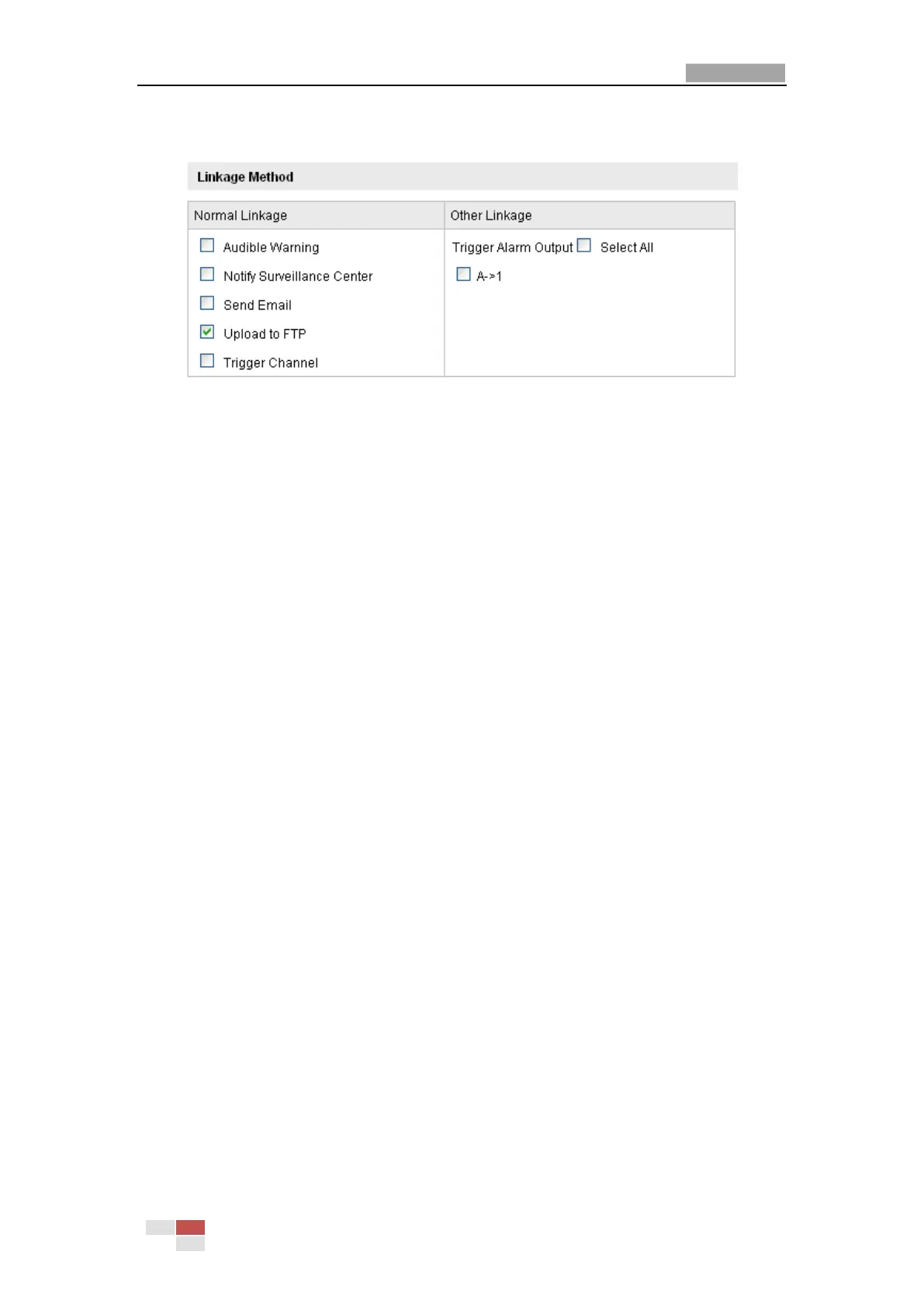

Figure 5-29 Linkage Method
Steps:
(1) Check the checkbox to select the linkage method. Audible warning, notify
surveillance center, send email, upload to FTP, trigger channel and trigger
alarm output are selectable (Optional).
Audible Warning
Trigger the audible warning locally.
Notify Surveillance Center
Send an exception or alarm signal to remote management software when
an event occurs.
Send Email
Send an email with alarm information to a user or users when an event
occurs.
Note: To send the Email when an event occurs, you need to refer to Section
6.6.7 to set the related parameters.
Upload to FTP
Capture the image when an alarm is triggered and upload the picture to a
FTP server.
Note: Set the FTP address and the remote FTP server first. Refer to Section
6.3.8 for detailed information.
Trigger Channel
The video will be recorded when the motion is detected. You have to set the
recording schedule to realize this function. Please refer to Section 7.2 for
detailed information.
Trigger Alarm Output
Trigger one or more external alarm outputs when an event occurs.
Note: To trigger an alarm output when an event occurs, please refer to
Section 6.6.5 to set the related parameters.
5.6.2 Configuring Tamper-proof Alarm
Purpose:
