User Manual of Network PTZ Camera
© Hikvision
47
5.2.4 Configuring Alarm Output
Steps:
1. Enter the Alarm Output settings interface:
Configuration> Event > Basic Event > Alarm Output
2. Select one alarm output channel in the Alarm Output dropdown list.
3. Set a name in for the alarm output
(optional).
4. The Delay time can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual. The
delay time refers to the time duration that the alarm output remains in effect after alarm
occurs.
5. Click tab to enter the arming schedule setting interface. The time
schedule configuration is the same as the settings of the arming schedule for motion
detection. Refer to Section 5.2.1 Configuring Motion Detection.

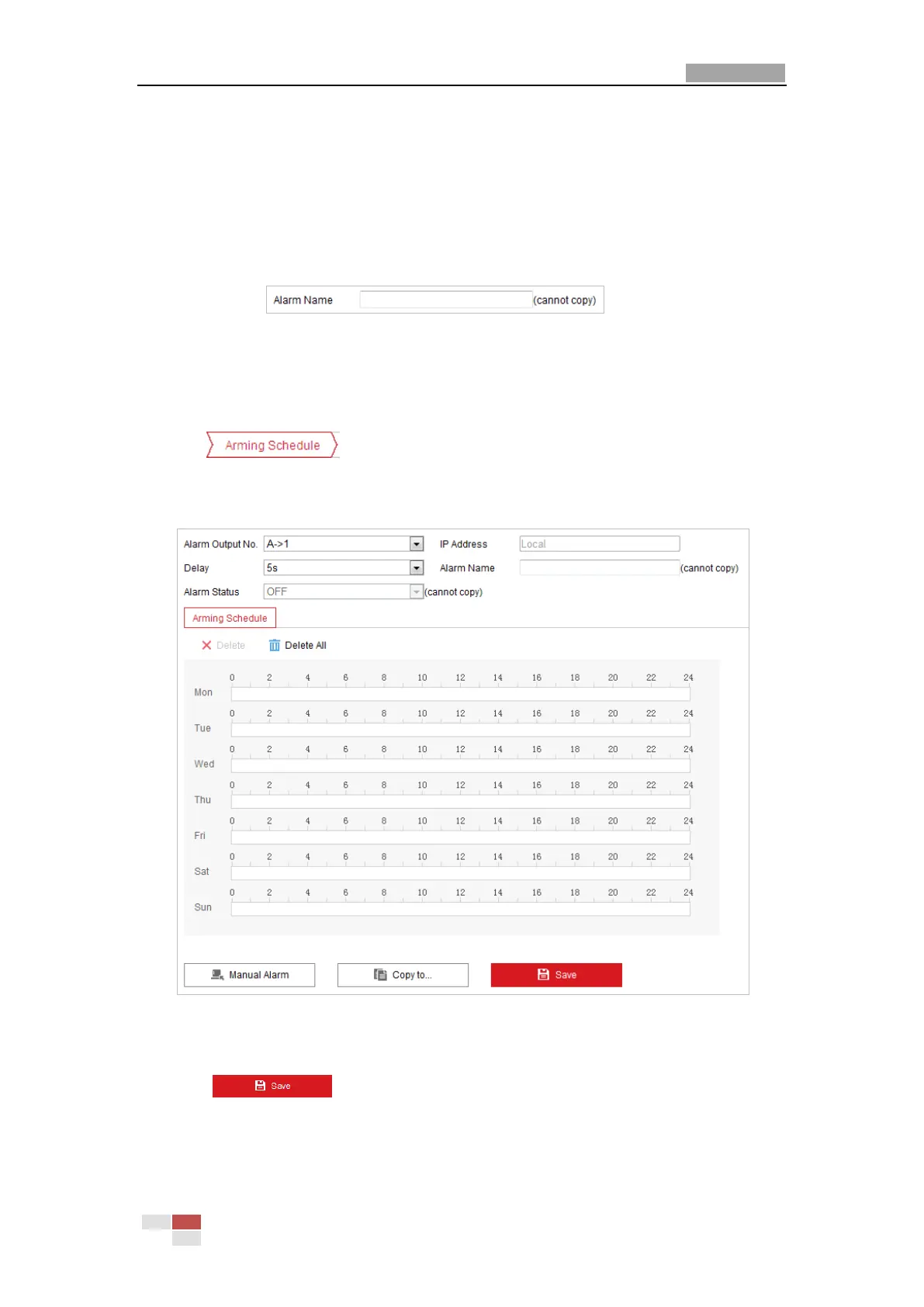

Figure 5-18 Alarm Output Settings
6. You can copy the settings to other alarm outputs.
7. Click to save the settings.

HIKVISION DS-2DE2A404IW-DE3 Specifications

General

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Maximum memory card size	256 GB
Maximum resolution	2560 x 1440 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Type	IP security camera
Placement supported	Outdoor
Sensor type	CMOS
Optical sensor size	1/3 \
Housing material	Aluminum
Voice codecs	G.711, G.722.1, G.726, MP2L2, PCM
Number of users	32 user(s)
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Minimum illumination	0 lx
