HIKVISION DS-7100 User Manual

User Manual of Digital Video Recorder
116

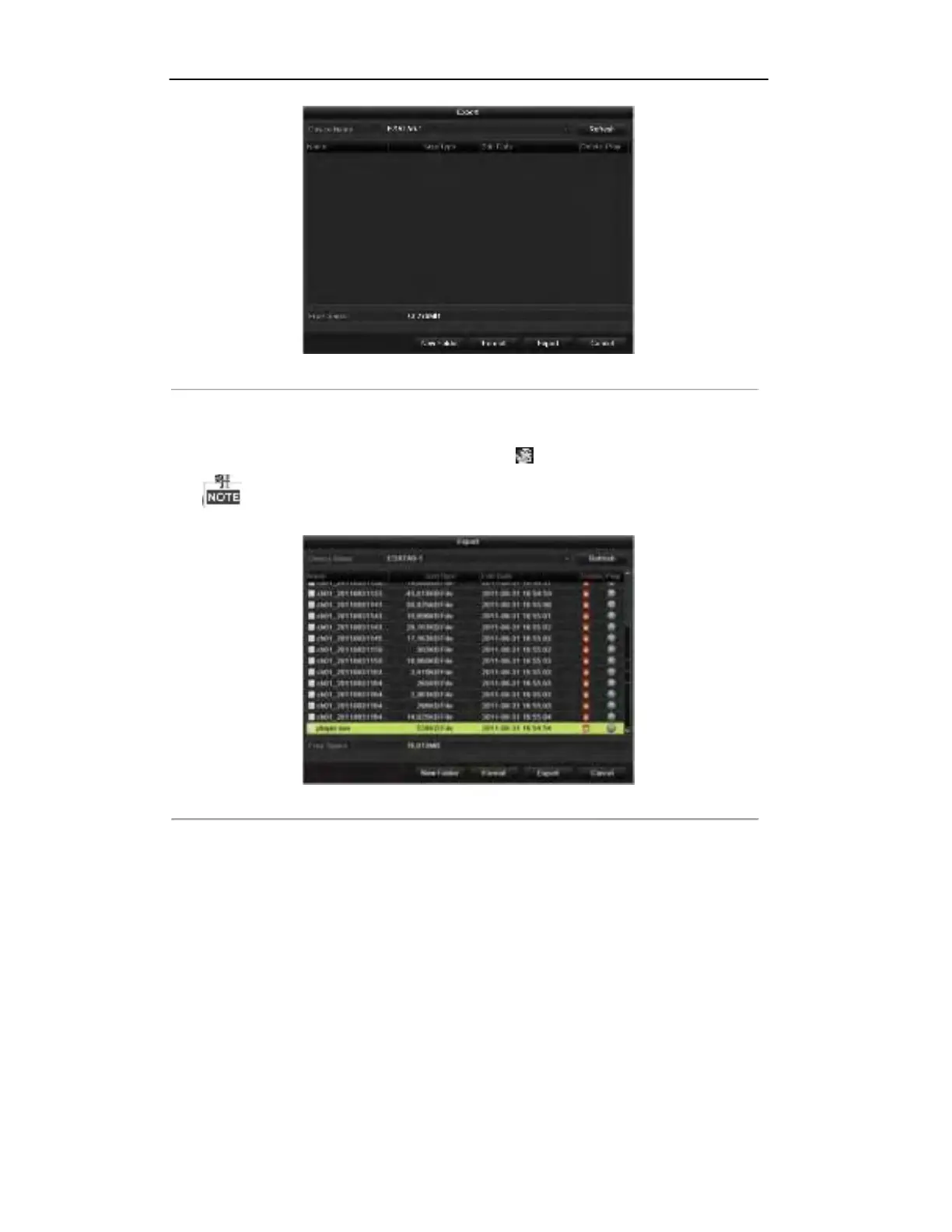

Figure 7. 6 Export by Normal Video Search Using eSATA HDD
Stay in the Exporting interface until all record files are exported with pop-up message “Export finished”.
5. Check backup result.
Choose the record file in Export interface and click button to check it.
The Player player.exe will be exported automatically during record file export.
Figure 7. 7 Checkup of Export Result Using eSATA HDD
7.1.2 Backing up by Event Search
Purpose:
Back up event-related recording files using USB devices, such as USB flash drives, USB HDDs, and USB
writer.
Steps:
1. Enter Export interface.
Menu>Export>Event
2. Search for events.
1) Select Motion , Alarm Input , Line Crossing Detection or Intrusion Detection as the event type.
