User Manual of Digital Video Recorder
14
1.1 Front Panels

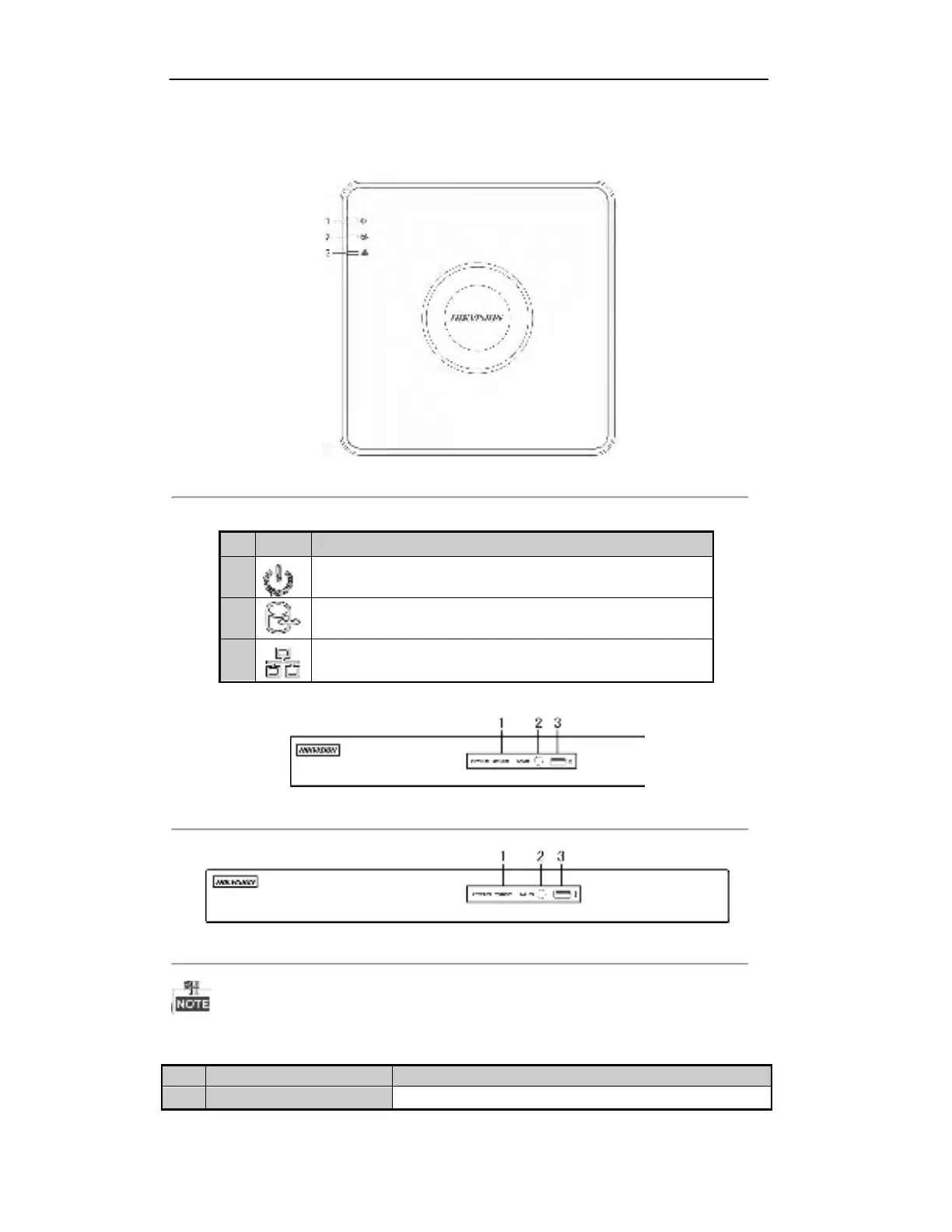

Figure 1. 1 Front Panel of DS-7100
Table 1. 1 Description of Front Panel
No. Icon Description
1
Indicator turns red when DVR is powered up.
2
Indicator lights in red when data is being read from or written to HDD.
3
Indicator blinks blue when network connection is functioning properly.
Figure 1. 2 Front Panel of DS-7204/7208HGHI-SH
Figure 1. 3 Front Panel of DS-7216HGHI-SH
Please refer to Figure 1.2 and Figure 1.3 for the front panel of DS-7200HGHI-E1/E2.
Table 1. 2 Description of Front Panel
No. Name Function Description
1 POWER
Power indicator turns yellow when the power switch on the real
