User Manual of Digital Video Recorder
76
5.1 Configuring Recording Parameters
Before you start:
1. Make sure that the HDD has already been installed. If not, please install a HDD and initialize it.
(Menu>HDD>General)

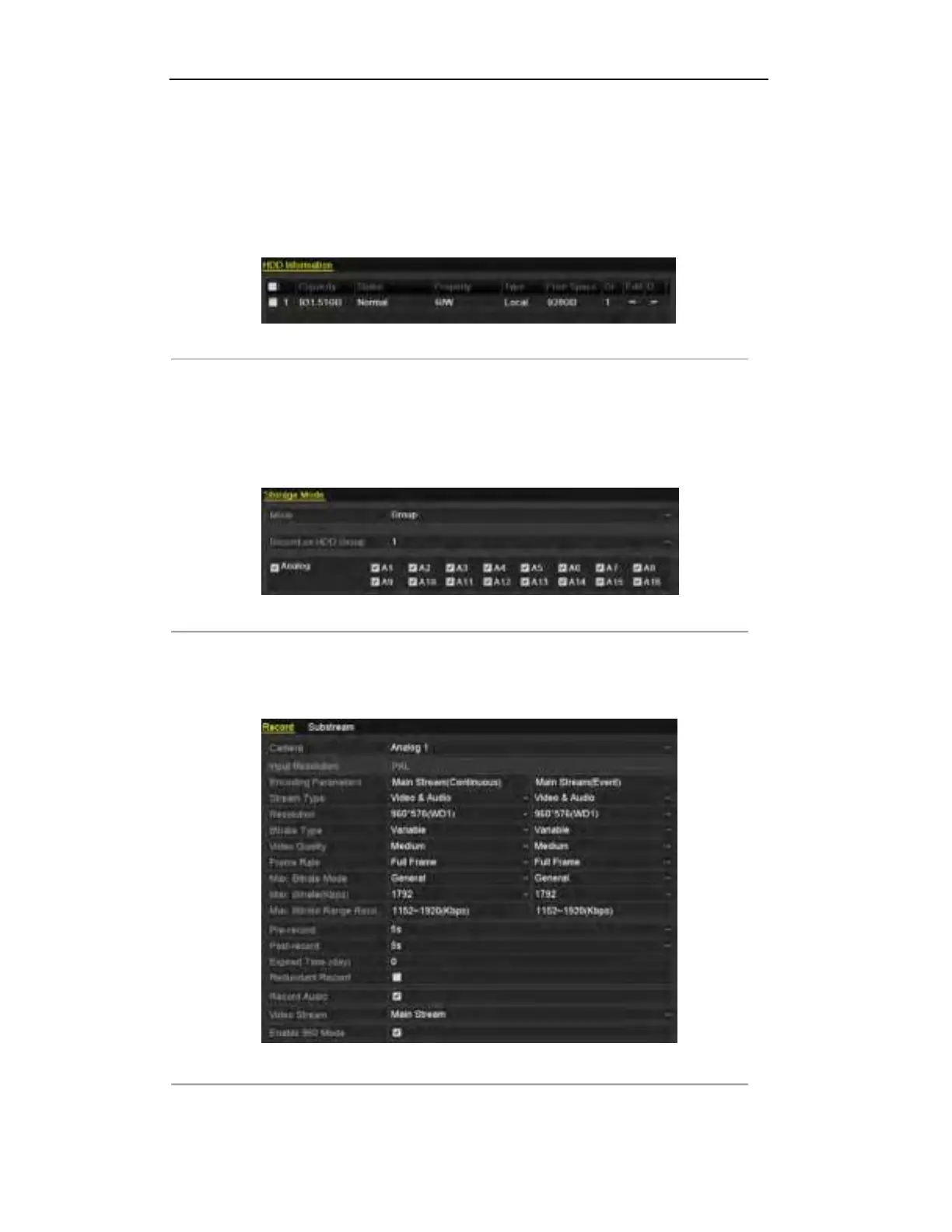

Figure 5. 1 HDD- General
2. Click Advance to check the storage mode of the HDD.
1) Whether the HDD mode is Quota , please set the maximum record capacity. For detailed information,
see
Chapter 10.5 Configuring Quota Mode .
2) If the HDD mode is Group , you should set the HDD group. For detailed information, see Chapter 5.9
Configuring HDD Group for Recording
.
Figure 5. 2 HDD- Advanced
Steps:
1. Enter the Record settings interface to configure the encoding parameters:
Menu>Record>Parameters
Figure 5. 3 Record Parameters
2. Set the parameters for recording.
