User Manual of Digital Video Recorder
28

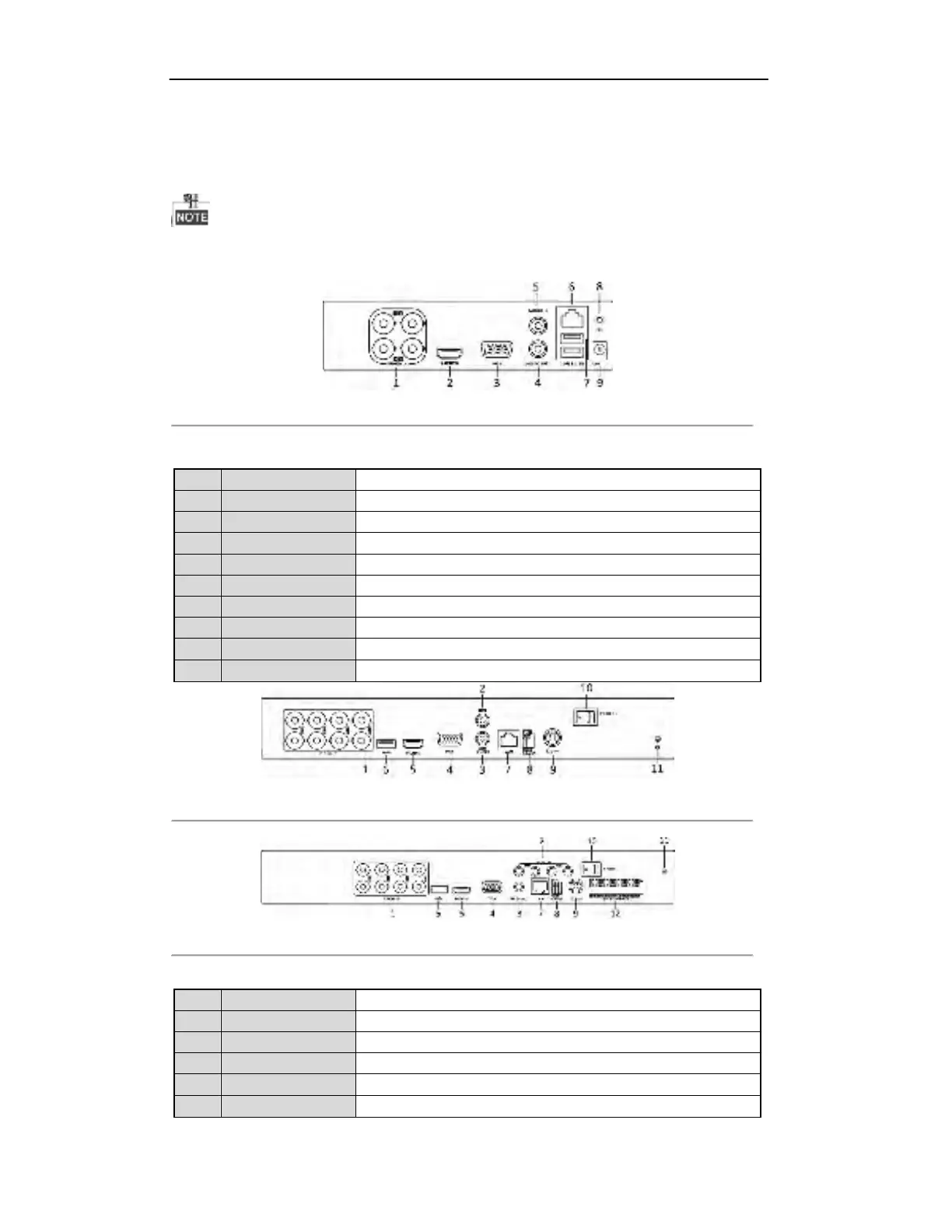

1.5 Rear Panel
The rear panel vaires according to different models. Please refer to the actual product. The following figures are
for reference only.
Figure 1. 10 DS-7100
Table 1. 10 Description of Front Panel
No. Item Description
1 VIDEO IN
BNC interface for TVI and analog video input.
2 HDMI
HDMI video output connector.
3 VGA
DB15 connector for VGA output. Display local video output and menu.
4 AUDIO OUT
RCA connector.
5 AUDIO IN
RCA connector.
6 Network Interface
Connector for network
7 USB Port
Universal Serial Bus (USB) port for additional devices.
8 GND
Ground
9 Power Supply
DC 12V power supply.
Figure 1. 11 DS-7200HGHI
Figure 1. 12 DS-7200HQHI
Table 1. 11 Description of Front Panel
No. Item Description
1 VIDEO IN
BNC interface for TVI and analog video input.
2 AUDIO IN
RCA connector
3 AUDIO OUT
RCA connector
4 VGA DB15 connector for VGA output. Display local video output and menu.
5 HDMI
HDMI video output connector.
