HIKVISION DS-7608NI-E1 User Manual

Network Video Recorder User Manual
106
2. Move the mouse to the time bar to get the preview thumbnails of the video files. Select and double click on a
required thumbnail to enter the full-screen playback.
The thumbnail view is supported only in the 1X single-camera playback mode.
6.2.3 Fast View
You can hold the mouse to drag on the time bar to get the fast view of the video files.
Steps:
1. Enter the playback interface and start to play the video files.

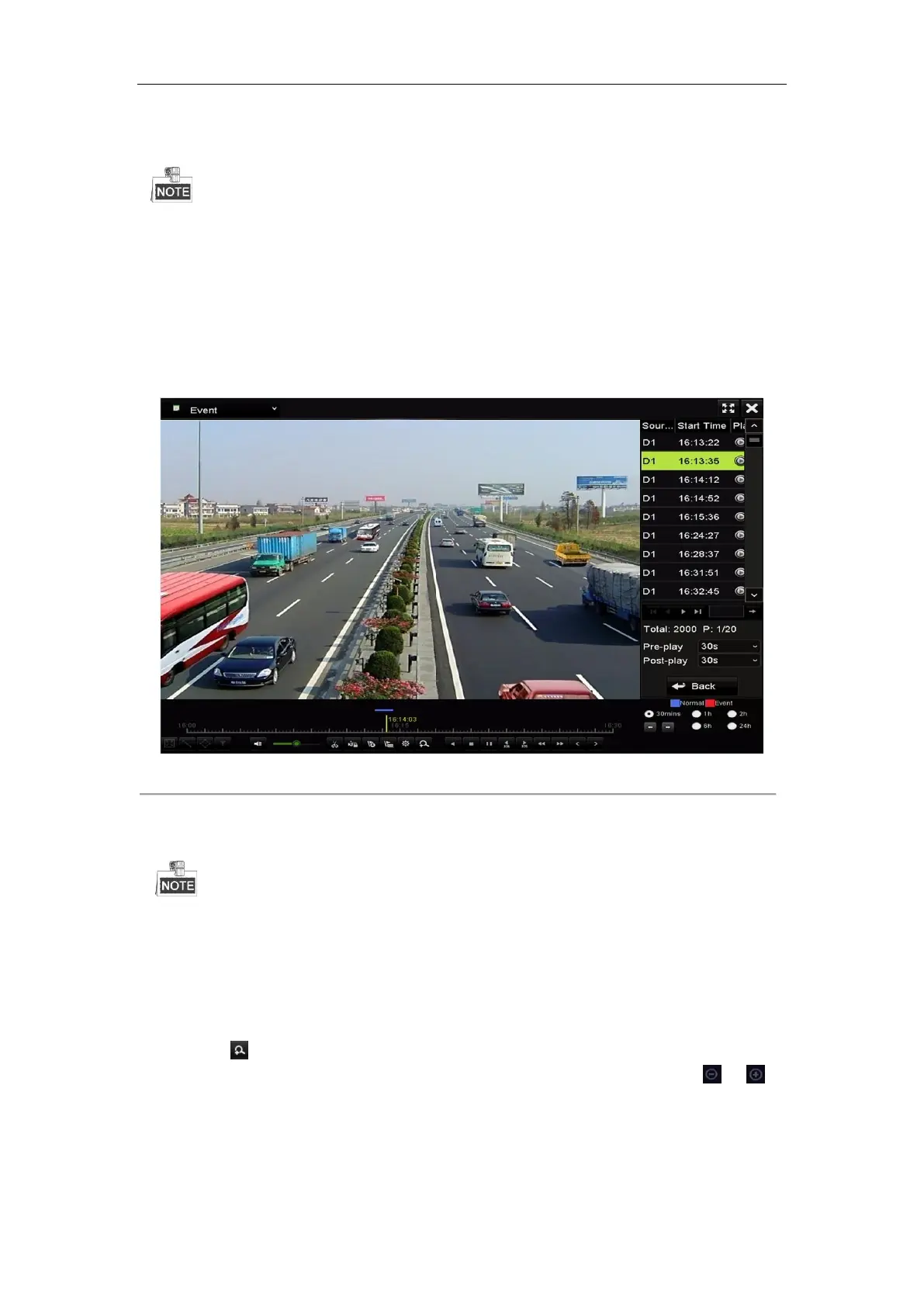

Figure 6. 22 Playback Interface
2. Use the mouse to hold and drag through the playing time bar to fast view the video files.
3. Release the mouse to the required time point to enter the full-screen playback.
The fast view is supported only in the 1X single-camera playback mode.
6.2.4 Digital Zoom
Steps:
3. Click the button on the playback control bar to enter Digital Zoom interface.
4. You can zoom in the image to different proportions (1 to16X) by moving the sliding bar from to .
You can also scroll the mouse wheel to control the zoom in/out.

HIKVISION DS-7608NI-E1 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	16 channels
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
