Network Video Recorder User Manual
174
Click Refresh button if the connected local backup device cannot be displayed. When it fails to detect the backup
device, please check whether it is compatible with the NVR. You can format the backup device if the format is
incorrect.

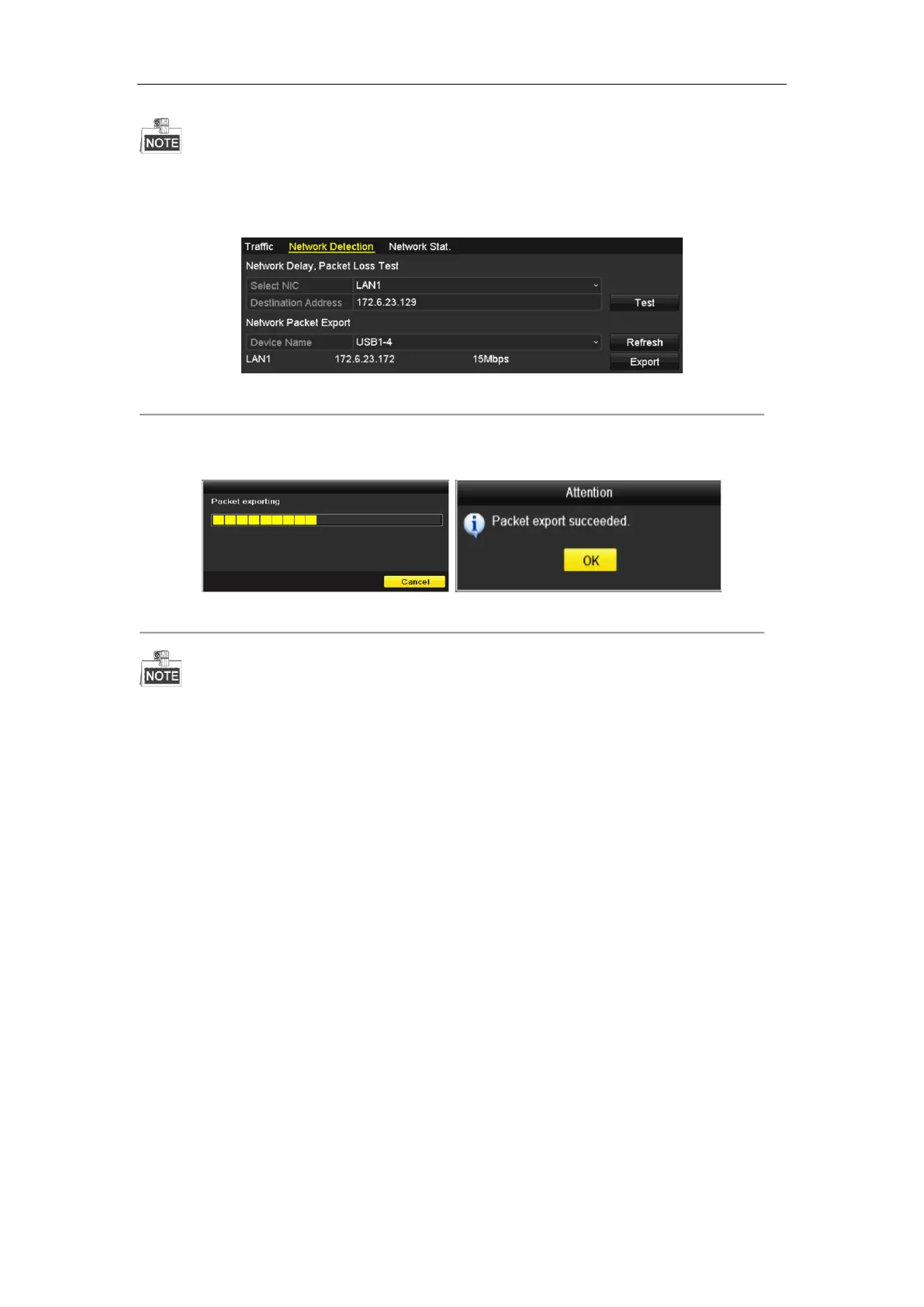

Figure 11. 36 Export Network Packet
4. Click Export button to start exporting.
5. After the exporting is complete, click OK to finish the packet export, as shown in Figure 11. 37.
Figure 11. 37 Packet Export Attention
Up to 1M data can be exported each time.
11.4.3 Checking the Network Status
Purpose:
You can also check the network status and quick set the network parameters in this interface.
Step:
Click the Status button on the lower- right corner of the page.

HIKVISION DS-7608NI-E1 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	16 channels
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
