HIKVISION DS-7608NI-E1 User Manual

Network Video Recorder User Manual
48
Example: rtsp://192.168.1.55:554/ch1/main/av_stream.
 Protocol Name: Edit the name for the custom protocol.
 Enable Substream: If the network camera does not support sub-stream or the sub-stream is not needed
leave the checkbox empty.
 Type: The network camera adopting custom protocol must support getting stream through standard RTSP.
 Transfer Protocol: Select the transfer protocol for the custom protocol.
 Port: Set the port No. for the custom protocol.
 Path: Set the resource path for the custom protocol. E.g., ch1/main/av_stream.
The protocol type and the transfer protocols must be supported by the connected network camera.
After adding the customized protocols, you can see the protocol name is listed in the dropdown list, please refer to
Figure 2. 36.

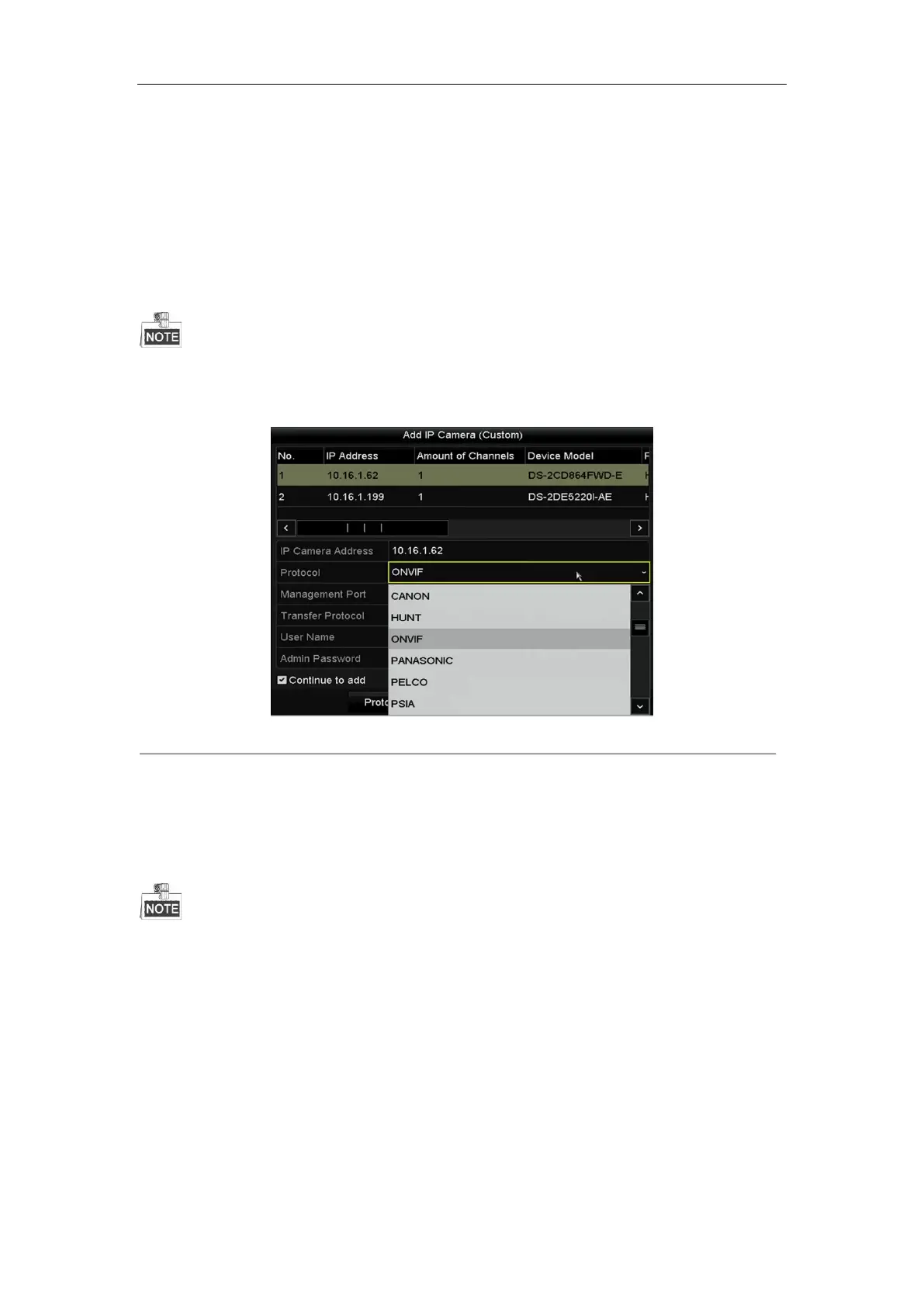

Figure 2. 36 Protocol Setting
3. Choose the protocols you just added to validate the connection of the network camera.
2.6.4 Editing IP Cameras Connected to the PoE Interfaces
This chapter is only applicable for the following models: DS-7604NI-E1/4P, DS-7600NI-E2/8P,
DS-7600NI-E2/16P, DS-7700NI-E4/8P, DS-7700NI-E4/16P series NVR.
The PoE interfaces enables the NVR system to pass electrical power safely, along with data, on Ethernet cabling to
the connected network cameras.
Up to 4 network cameras can be connected to /4P models, 8 network cameras to /8P models, and 16 network
cameras to /16P models. If you disable the PoE interface, you can also connect to the online network cameras. And
the PoE interface supports the Plug-and-Play function.
To add Cameras for NVR supporting PoE function:
Before you start:
Connect the network cameras via the PoE interfaces.
Steps:
1. Enter the Camera Management interface.

HIKVISION DS-7608NI-E1 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	16 channels
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
