HIKVISION DS-7608NI-E1 User Manual

Network Video Recorder User Manual
95

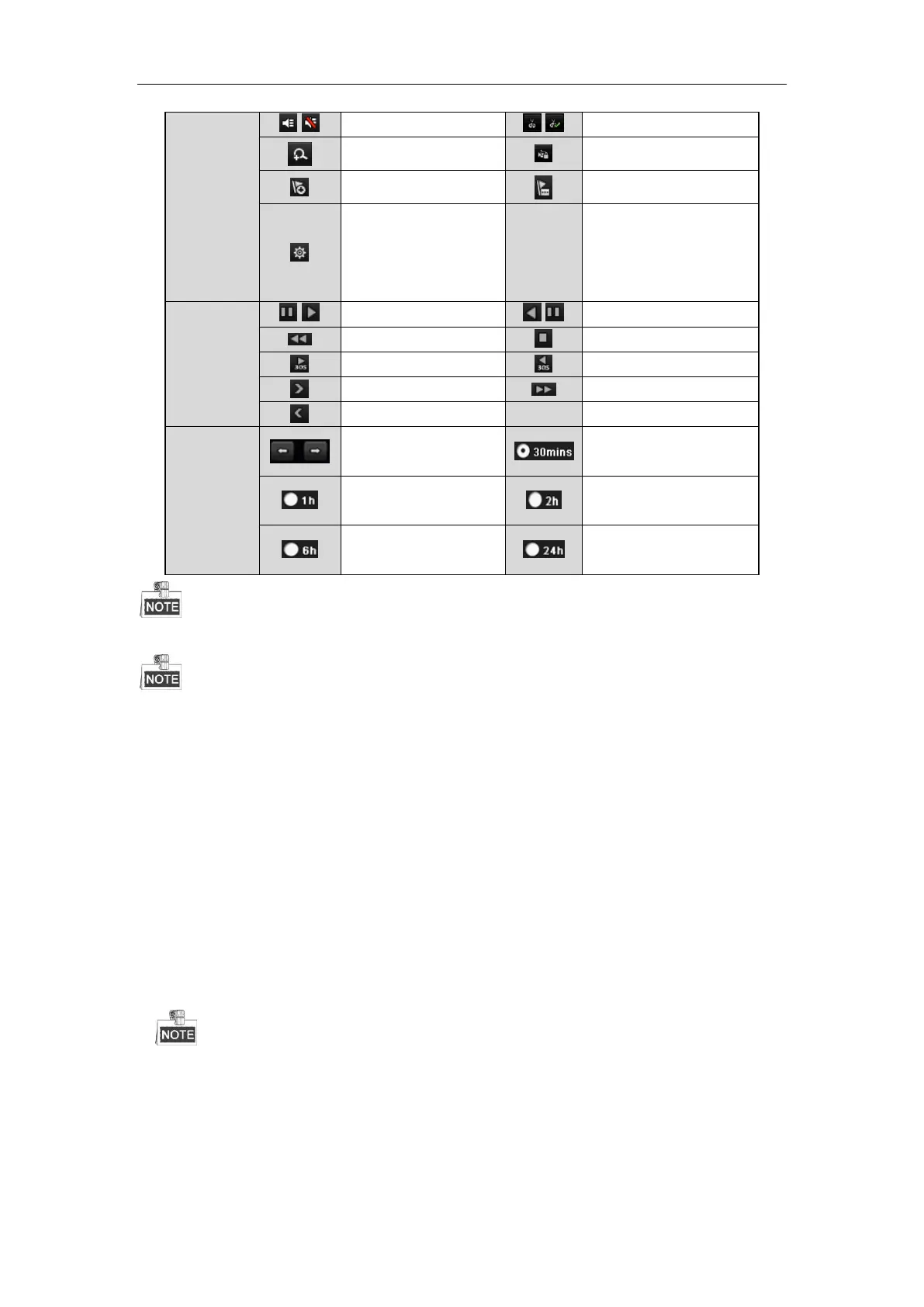

Operations
/
Audio on/Mute
/
Start/Stop clipping
Digital Zoom
Lock File
Add default tag
Add customized tag
File management for
video clips, captured
pictures, locked files and
tags
Playing
Control
/
Pause/Play
/
Reverse play/ Pause
Slow forward
Stop
30s forward
30s reverse
Next day
Fast forward
Previous day
Time Bar
Scaling
Previous/Next period
Play the time bar in 30
minutes (default)
Play the time bar in 1
hour
Play the time bar in 2 hours
Play the time bar in 6
hours
Play the time bar in 24
hours
Please refer to the Chapter 3.2.4 Fisheye Expansion for the description and operation of the fisheye expansion.
The playing speed of 256X is supported.
6.1.3 Playing Back by Event Search
Purpose:
Play back record files on one or several channels searched out by event type (e.g., alarm input, motion detection
and VCA).
Steps:
1. Enter the Playback interface.
Menu>Playback
2. Select the Event in the drop-down list on the top-left side.
3. Select the major type to Alarm Input, Motion or VCA as the event type.
We take playback by VCA as the example in the following instrucions.

HIKVISION DS-7608NI-E1 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	16 channels
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
